WO2023117788 - VISUALLY COMMUNICATING MEDICAMENT DELIVERY INSTRUCTIONS
National phase entry:
Publication Number
WO/2023/117788
Publication Date
29.06.2023
International Application No.
PCT/EP2022/086441
International Filing Date
16.12.2022
Title **
[English]
VISUALLY COMMUNICATING MEDICAMENT DELIVERY INSTRUCTIONS
[French]
INSTRUCTIONS DE LIVRAISON DE MÉDICAMENTS PAR COMMUNICATION VISUELLE
Applicants **
SHL MEDICAL AG
PO Box 7710
6302 Zug, CH
Inventors
CALDERWOOD, Gary
c/o SHL Medical AB
PO Box 1240, Augustendalsvägen 7
131 28 Nacka Strand, SE
NEBY, Torbjörn
c/o SHL Medical AG
PO Box 1240, Augustendalsvägen 7
131 28 Nacka Strand, SE
Priority Data
21217157.3
22.12.2021
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1126 | |
| EPO | Filing, Examination | 4656 | |
| Japan | Filing | 595 | |
| South Korea | Filing | 574 | |
| USA | Filing, Examination | 2710 |
Total: 9661 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

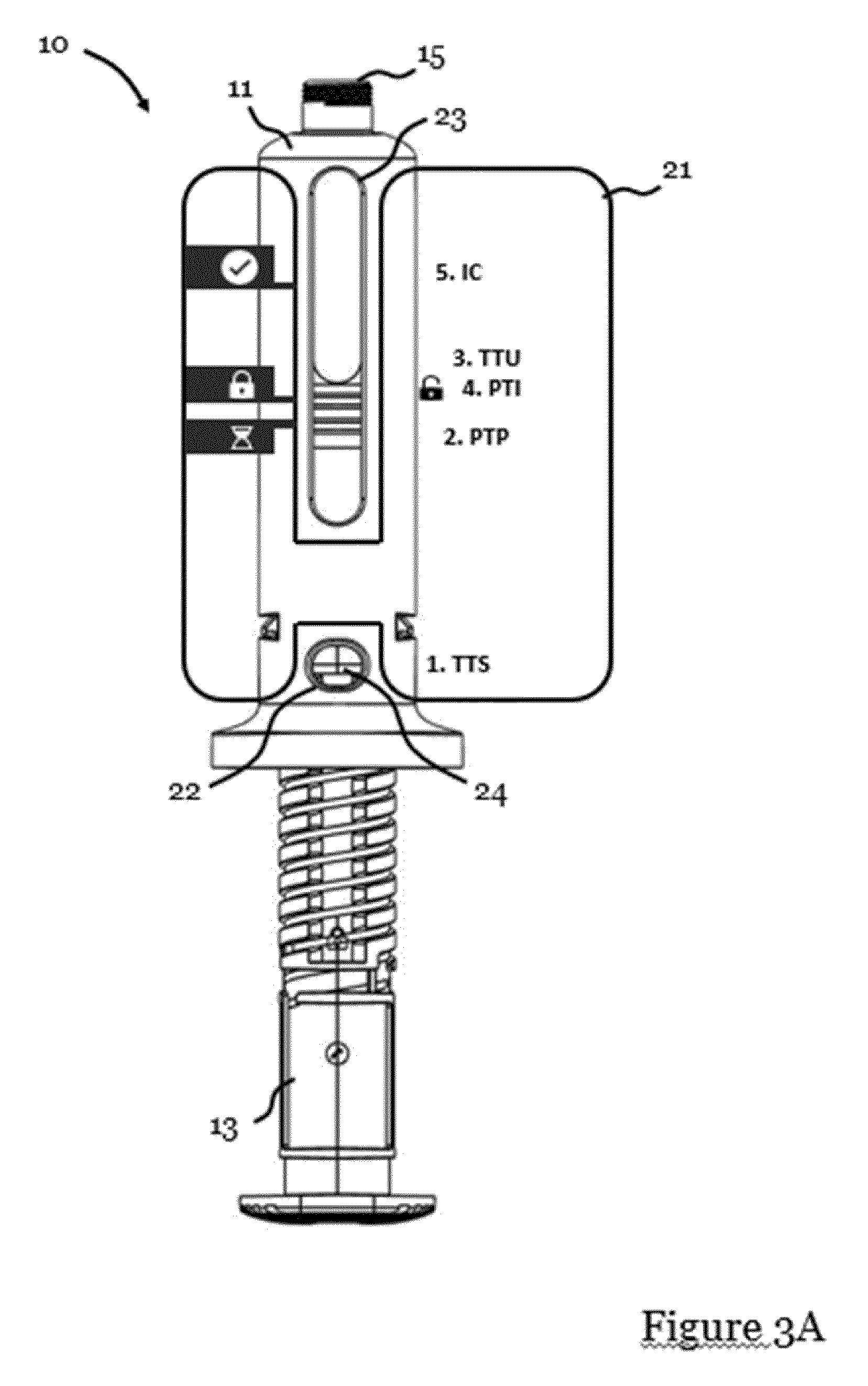

The present disclosure relates to a sub-assembly of a medicament delivery device comprising a main body configured to accommodate a medicament, a plunger rod being moveable inside the main body along a length of the main body upon a user applying force to the plunger rod, and wherein the main body comprises a window through which the plunger rod is observable upon moving along said length, the main body further being provided with medicament delivery instructions along the length of an exterior of the main body, wherein the medicament delivery instructions are configured to instruct the user to move the plunger rod further into the main body to align a first visual indication of the plunger rod observable through said window with a next medicament delivery instruction to be performed along the length of the main body.[French]
La présente divulgation concerne un sous-ensemble d'un dispositif d'administration de médicaments comprenant un corps principal configuré pour accueillir un médicament, une tige de piston pouvant être déplacée à l'intérieur du corps principal sur une longueur du corps principal lorsqu'un utilisateur y applique une force, et le corps principal comportant une fenêtre à travers laquelle la tige de piston est observable lorsqu'elle est déplacée sur ladite longueur, le corps principal étant en outre pourvu d'instructions d'administration de médicaments sur la longueur d'un extérieur du corps principal, les instructions d'administration de médicaments étant configurées pour inviter l'utilisateur à déplacer la tige de piston plus loin dans le corps principal afin d'aligner une première indication visuelle de la tige de piston observable à travers ladite fenêtre avec une prochaine instruction d'administration de médicaments à exécuter sur la longueur du corps principal.
