WO2023104507 - REFRIGERATION APPLIANCE
National phase entry is expected:
Publication Number
WO/2023/104507
Publication Date
15.06.2023
International Application No.
PCT/EP2022/082850
International Filing Date
22.11.2022
Title **
[English]
REFRIGERATION APPLIANCE
[French]
APPAREIL FRIGORIFIQUE
Applicants **
BSH HAUSGERÄTE GMBH
Carl-Wery-Str. 34
81739 München, DE
Inventors
CHEN, Xiupeng
c/o BSH Electrical Appliances (Jiangsu) Co., Ltd.
Yaoxin Road No. 208
Nanjing, Jiangsu 210046, CN
WANG, Shiyu
No. 77 Qidong Road Jiangning Zone Nanjing
Nanjing, Jiangsu 210000, CN
Priority Data
202111484501.8
07.12.2021
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1103 | |
| EPO | Filing, Examination | 4575 | |
| Japan | Filing | 587 | |
| South Korea | Filing | 574 | |
| USA | Filing, Examination | 2710 |
Total: 9549 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

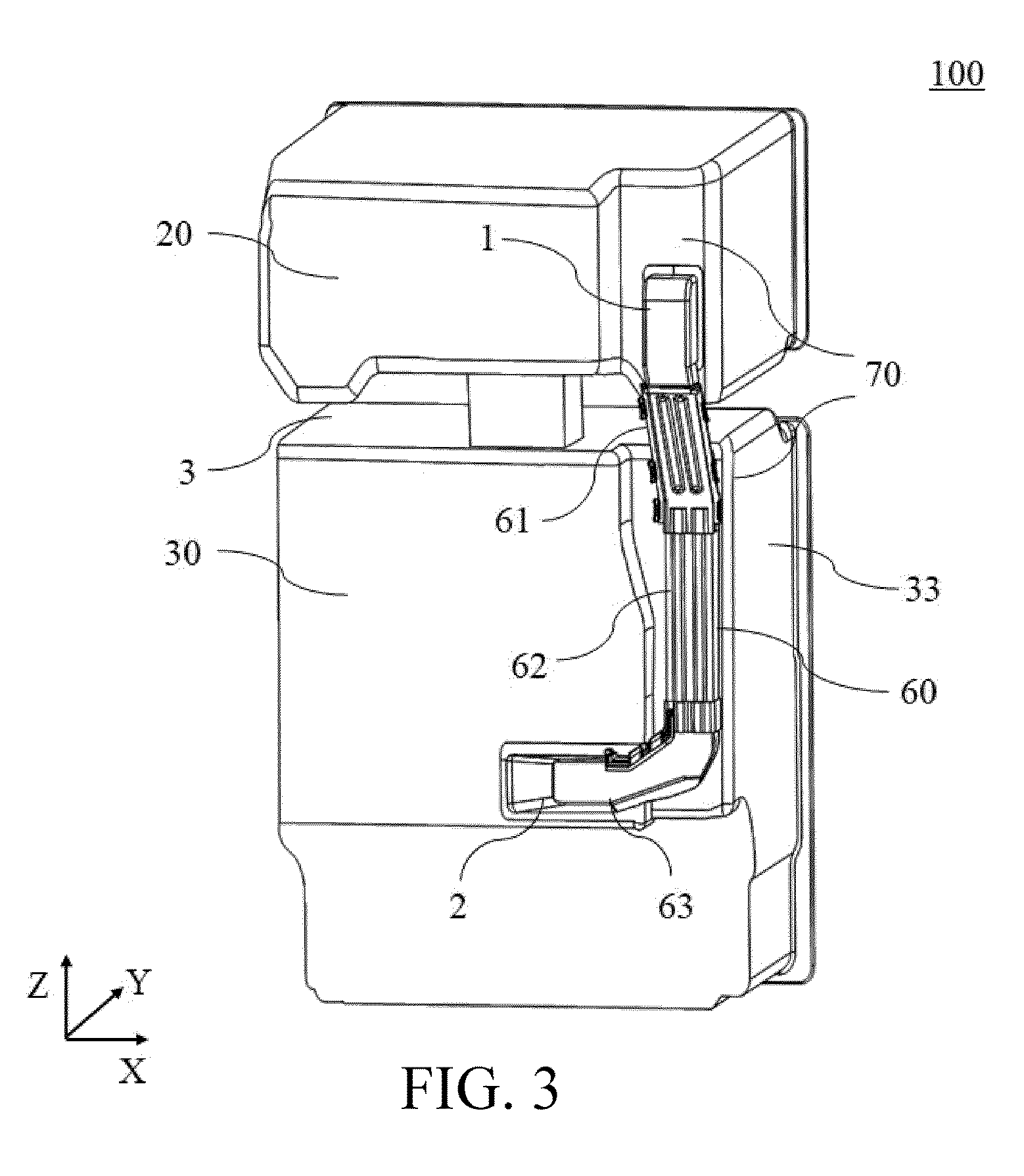

A refrigeration appliance (100), the refrigeration appliance at least comprising: -a housing (10); -a first liner (20) arranged inside the housing (10); -a second liner (30) arranged inside the housing (10); -a heat insulation layer (40), the heat insulation layer being arranged between the housing (10), the first liner (20), and the second liner (30); -an evaporator (50), the evaporator being arranged at a back wall (32) of the second liner (30); and -a return air duct (60), the return air duct being embedded in the heat insulation layer (40), connected to the first liner (20) by a first end portion (1), and connected to the second liner (30) by a second end portion (2), wherein at least one of the first liner (20) or the second liner (30) has a concave portion (70), and the return air duct (60) is at least partially arranged in the concave portion.[French]
L'invention concerne un appareil frigorifique (100) qui comprend au moins : un boîtier (10) ; une première doublure (20) disposée à l'intérieur du boîtier (10) ; une seconde doublure (30) disposée à l'intérieur du boîtier (10) ; une couche d'isolation thermique (40) disposée entre le boîtier (10), la première doublure (20), et la seconde doublure (30) ; un évaporateur (50) disposé au niveau d'une paroi arrière (32) de la seconde doublure (30) ; et un conduit d'air de retour (60) intégré dans la couche d'isolation thermique (40), relié à la première doublure (20) par une première partie d'extrémité (1), et relié à la seconde doublure (30) par une seconde partie d'extrémité (2), au moins l'une parmi la première doublure (20) ou la seconde doublure (30) ayant une partie concave (70), et le conduit d'air de retour (60) étant au moins partiellement disposé dans la partie concave.
