WO2023088687 - COMPONENTS AND SUB-ASSEMBLIES FOR MEDICAMENT DELIVERY DEVICES
National phase entry:
Publication Number
WO/2023/088687
Publication Date
25.05.2023
International Application No.
PCT/EP2022/080692
International Filing Date
03.11.2022
Title **
[English]
COMPONENTS AND SUB-ASSEMBLIES FOR MEDICAMENT DELIVERY DEVICES
[French]
COMPOSANTS ET SOUS-ENSEMBLES POUR DISPOSITIFS D'ADMINISTRATION DE MÉDICAMENT
Applicants **
SHL MEDICAL AG
Gubelstrasse 22, PO Box 7710
6302 Zug, CH
Inventors
CHIOU, Meng-Jhen
No 36 Liufu Rd, Luzhu District
Taoyuan City, 338, TW
LIU, Tzu Wei
12F., No. 86, Fulu 1st St. Luzhu Dist.
Taoyuan City, 338005, TW
Priority Data
21208876.9
17.11.2021
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 959 | |
| EPO | Filing, Examination | 4635 | |
| Japan | Filing | 594 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2710 |
Total: 9473 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

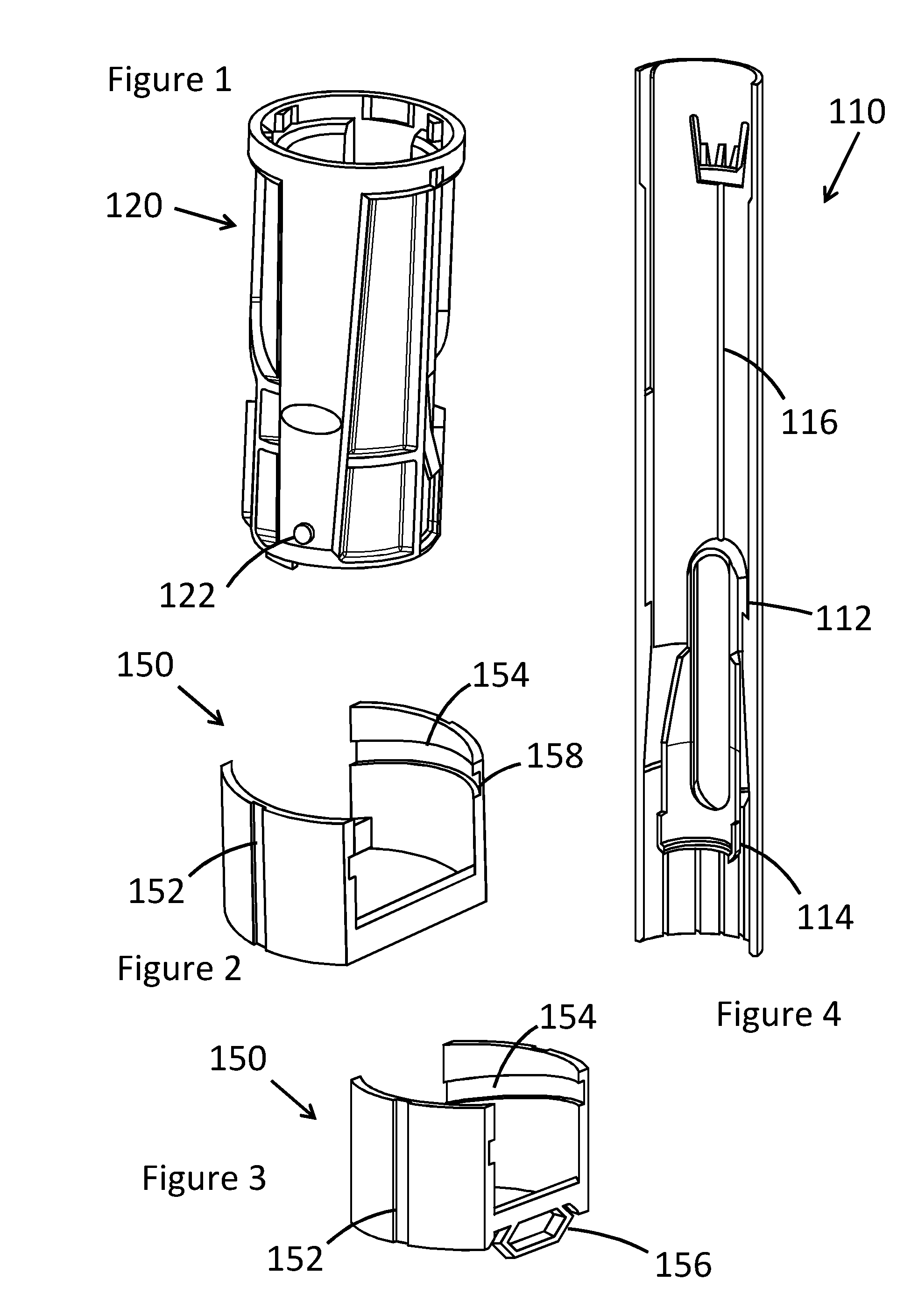

The application concerns various components and sub-assemblies for medicament delivery devices such as auto injectors. A sub-assembly for a medicament delivery device is described, the sub-assembly comprising a tubular rotator (120), a tubular housing (110), and a syringe support (150),wherein the rotator (120) comprises a protrusion (122) extending from an outer surface of the rotator (120), wherein the syringe support (150) comprises a helically extending slot (154) on an inner surface of the syringe support (150), the protrusion (122) being in the helically extending slot (154), wherein the syringe support (150) comprises an axially extending slot (152) on an outer surface of the syringe support (150), and wherein the housing (110) comprises an axially extending rib (116) extending from an inner surface of the housing (110), the axially extending rib (116) being in the axially extending slot (152).[French]
La présente demande concerne divers composants et sous-ensembles pour les dispositifs d'administration de médicament tels que les auto-injecteurs. L'invention concerne un sous-ensemble pour un dispositif d'administration de médicament, le sous-ensemble comprenant un rotateur tubulaire (120), un boîtier tubulaire (110) et un support de seringue (150), le rotateur (120) comportant une saillie (122) se déployant depuis une surface externe du rotateur (120), le support de seringue (150) comportant une fente hélicoïdale (154) sur une surface interne du support de seringue (150), la saillie (122) se situant dans la fente hélicoïdale (154), le support de seringue (150) comportant une fente axiale (152) sur une surface externe du support de seringue (150), le support de seringue (150) comportant une fente axiale (152) sur une surface externe du support de seringue (150), et le boîtier (110) comportant une nervure axiale (116) se déployant depuis une surface interne du boîtier (110), la nervure axiale (116) se situant dans la fente axiale (152).
