WO2025131209 - IMPROVEMENTS RELATING TO THE MANUFACTURE OF WIND TURBINE BLADES
National phase entry is expected:
Publication Number
WO/2025/131209
Publication Date
26.06.2025
International Application No.
PCT/DK2024/050311
International Filing Date
17.12.2024
Title **
[English]
IMPROVEMENTS RELATING TO THE MANUFACTURE OF WIND TURBINE BLADES
[French]
AMÉLIORATIONS SE RAPPORTANT À LA FABRICATION DE PALES D'ÉOLIENNE
Applicants **
VESTAS WIND SYSTEMS A/S
Inventors
VUILLAUME, Amaury
MORTIMER, Jermaine
GASCON GRACIA, Eduardo
Priority Data
PA202330409
19.12.2023
DK
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2024 | |
| EPO | Filing, Examination, Granting | 8126 | |
| Japan | Filing, Examination, Granting | 2155 | |
| South Korea | Filing, Examination, Granting | 2071 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,116
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

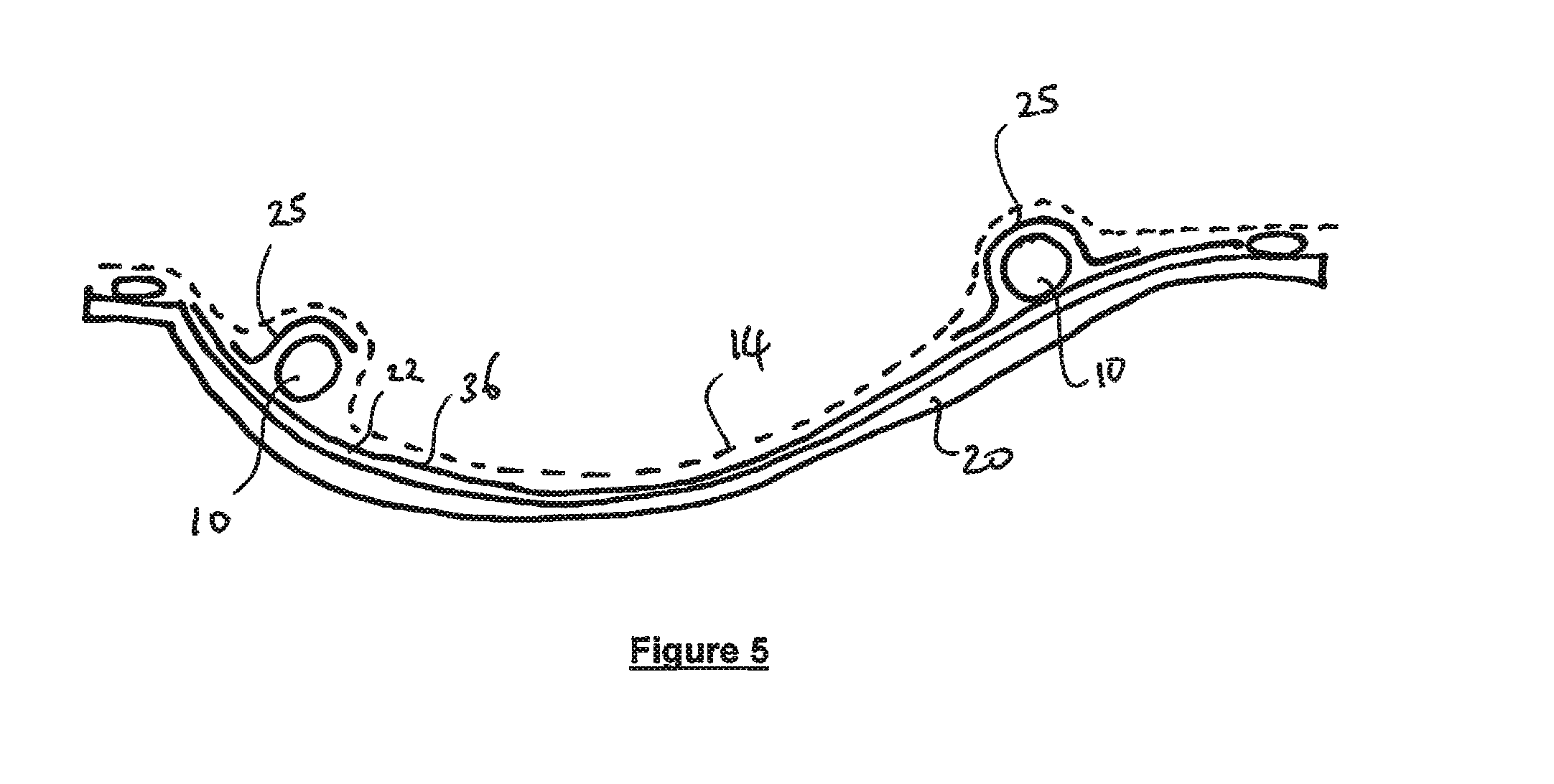

Improvements relating to the manufacture of wind turbine blades A method of making a wind turbine blade component is described. The method comprises: providing a rigid mould (20) shaped to form the wind turbine blade component; arranging fibrous reinforcing material (36) in the mould; covering the fibrous reinforcing material with a vacuum bag (14); sealing the vacuum bag against a surface (12) of the mould or against another surface to create a closed space (18) between the mould and the vacuum bag in which the fibrous reinforcing material is encapsulated; removing air from the closed space to create a negative pressure within the closed space; supplying resin to the fibrous reinforcing material; and curing the resin. The method further comprises providing a sealed bag (10) in the closed space. The sealed bag is at least partially filled with a gas. The pressure inside the sealed bag is greater than the pressure within the closed space outside the sealed bag. The sealed bag shapes and/or supports a portion of the fibrous reinforcing material during the moulding process.[French]
L'invention concerne des améliorations se rapportant à la fabrication de pales d'éolienne, et un procédé de fabrication d'un composant de pale d'éolienne. Le procédé consiste à : fournir un moule rigide (20) façonné de manière à former le composant de pale d'éolienne ; agencer un matériau fibreux de renfort (36) dans le moule ; recouvrir le matériau fibreux de renfort d'un sac sous vide (14) ; sceller le sac sous vide contre une surface (12) du moule ou contre une autre surface pour créer un espace clos (18) entre le moule et le sac sous vide dans lequel le matériau fibreux de renfort est encapsulé ; retirer l'air de l'espace fermé pour créer une pression négative à l'intérieur de l'espace fermé ; fournir de la résine au matériau fibreux de renfort ; et durcir la résine. Le procédé comprend en outre la fourniture d'un sac étanche (10) dans l'espace clos. Le sac étanche est au moins partiellement rempli d'un gaz. La pression à l'intérieur du sac étanche est supérieure à la pression à l'intérieur de l'espace clos à l'extérieur du sac étanche. Le sac scellé façonne et/ou supporte une partie du matériau fibreux de renfort pendant le processus de moulage.
