WO2025031551 - OPERATING WIND TURBINE WITH DAMAGED YAW RING
National phase entry is expected:
Publication Number
WO/2025/031551
Publication Date
13.02.2025
International Application No.
PCT/DK2024/050179
International Filing Date
19.07.2024
Title **
[English]
OPERATING WIND TURBINE WITH DAMAGED YAW RING
[French]
MISE EN FONCTIONNEMENT D'UNE ÉOLIENNE AVEC BAGUE DE LACET ENDOMMAGÉE
Applicants **
VESTAS WIND SYSTEMS A/S
Inventors
SUMAN, Rishi
RATHEE, Himanshu
JAMUNA, Karthik Krishnan
Priority Data
202311053724
10.08.2023
IN
PA202330224
22.09.2023
DK
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2081 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2154 | |
| South Korea | Filing, Examination, Granting | 2099 | |
| USA | Filing, Examination, Granting | 5340 |
Total:
19,781
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

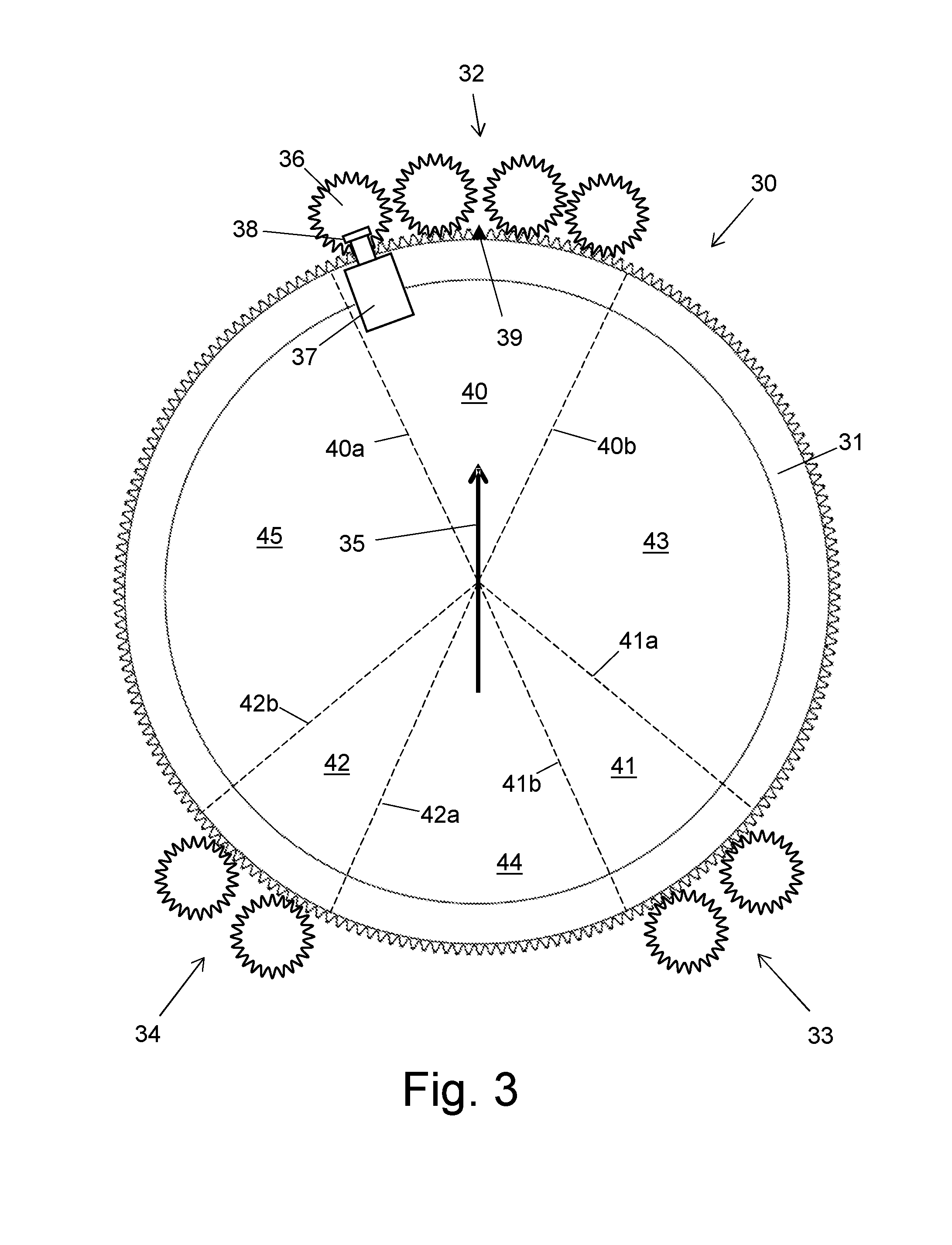

A method of operating a wind turbine, the wind turbine comprising a rotor and a yaw system, the yaw system comprising: a yaw ring and a pinion engaging the yaw ring. The method comprises: a) operating the yaw system to yaw the rotor in response to wind direction changes, thereby changing a rotor yaw direction; b) identifying a location of a damaged or missing tooth of the yaw ring; c) based on the identified location of the damaged or missing tooth and the location of the pinion, determining a safe sector and a restricted sector, wherein the pinion coincides with the location of the damaged or missing tooth when the rotor yaw direction is in the restricted sector; d) generating power with the rotor when the rotor yaw direction is in the safe sector; and e) disabling or otherwise modifying the operation of the wind turbine to substantially avoid generation of power by the rotor with the rotor yaw direction in the restricted sector.[French]
L'invention concerne un procédé de mis en fonctionnement d'une éolienne. Ladite éolienne comprend un rotor et un système de lacet comportant : une bague de lacet et un pignon venant en prise avec la bague de lacet. Le procédé comprend les étapes consistant à : a) faire fonctionner le système de lacet pour lacet le rotor en réponse à des changements de direction du vent, ce qui permet de modifier une direction de lacet du rotor ; b) identifier un emplacement d'une dent endommagée ou manquante de la bague de lacet ; c) sur la base de l'emplacement identifié de la dent endommagée ou manquante et de l'emplacement du pignon, déterminer un secteur sûr et un secteur restreint, le pignon coïncidant avec l'emplacement de la dent endommagée ou manquante lorsque la direction de lacet de rotor est dans le secteur restreint ; d) générer de l'énergie avec le rotor lorsque la direction de lacet de rotor est dans le secteur sûr ; et e) désactiver ou modifier autrement le fonctionnement de l'éolienne pour éviter sensiblement la production d'énergie par le rotor avec la direction de lacet de rotor dans le secteur restreint.
