WO2026057120 - ROTOR FÜR EINE ELEKTRISCHE MASCHINE
National phase entry is expected:
Publication Number
WO/2026/057120
Publication Date
19.03.2026
International Application No.
PCT/DE2025/100806
International Filing Date
25.08.2025
Title **
[German]
ROTOR FÜR EINE ELEKTRISCHE MASCHINE
[English]
ROTOR FOR AN ELECTRIC MACHINE
[French]
ROTOR POUR MACHINE ÉLECTRIQUE
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
SARKADI, László
Priority Data
102024126535.3
16.09.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1918 | |
| EPO | Filing, Examination, Granting | 8246 | |
| Japan | Filing, Examination, Granting | 2001 | |
| South Korea | Filing, Examination, Granting | 1757 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
18,662
Contact Us
Abstract[German]

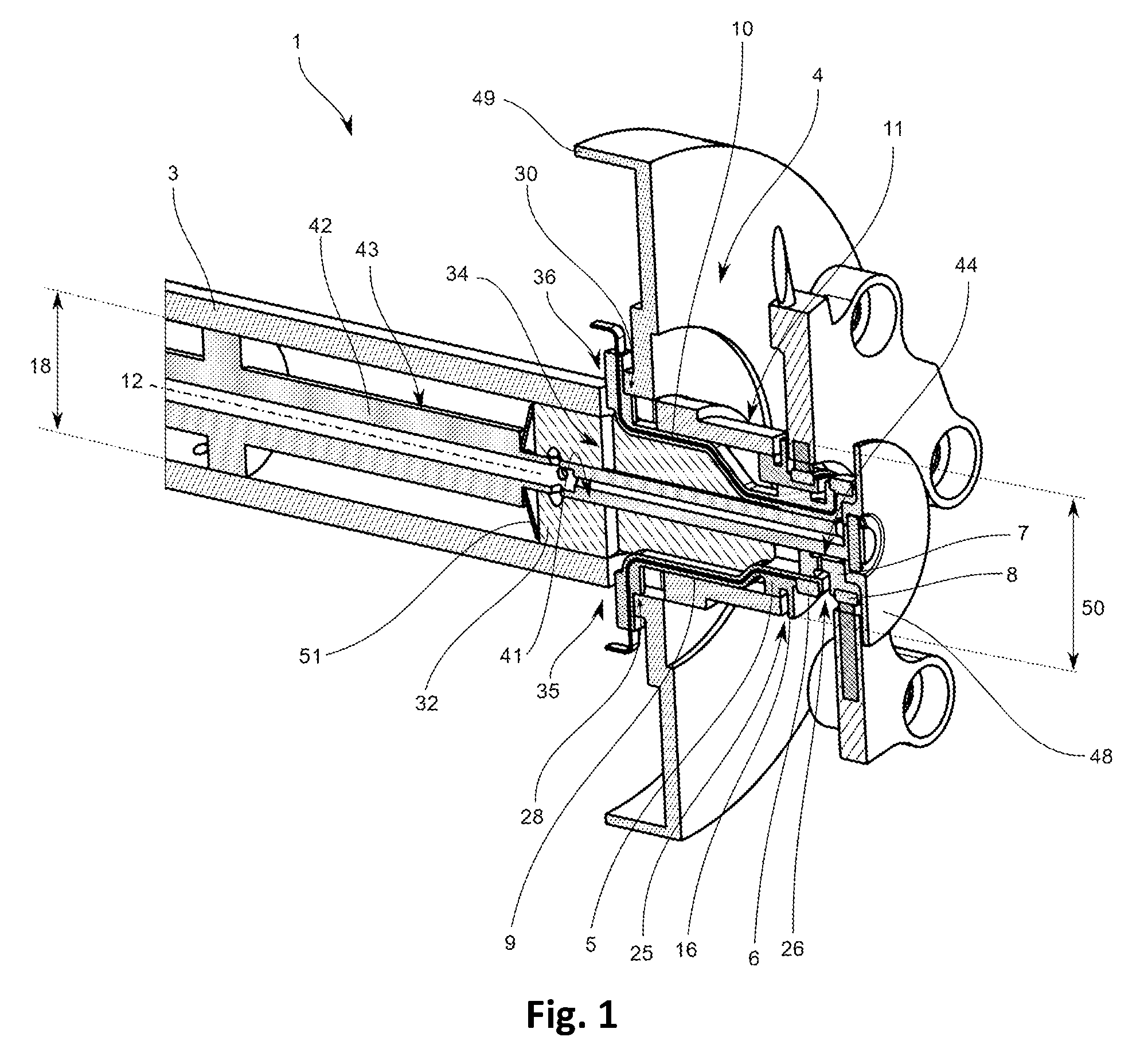

Die vorliegende Erfindung betrifft einen Rotor (1) für eine elektrische Maschine (2), insbesondere für eine fremderregte Synchronmaschine. Der Rotor (1) umfasst eine als Hohlwelle ausgeführte Rotorwelle (3) mit einem Lagersitz (11) an deren äußeren Mantelfläche sowie ein in die Rotorwelle (3) eingesetztes Schleifringmodul (4). Das Schleifringmodul (4) besteht aus einem ersten und einem zweiten hohlzylindrischen Schleifringträger (5, 7), die jeweils einen Schleifring (6, 8) an ihrer äußeren Mantelfläche tragen. Die Schleifringträger (5, 7) sind koaxial zur Rotationsachse (12) des Rotors (1) angeordnet, wobei der zweite Schleifringträger (7) abschnittsweise in eine Aufnahmeöffnung (13) des ersten Schleifringträgers (5) eingreift. Eine Isolationswand (16) erstreckt sich radial nach außen aus dem ersten Schleifringträger (5). Der Außendurchmesser (17) der Isolationswand (16) ist gleich oder kleiner als der Außendurchmesser (10) des Lagersitzes (11). Die Außendurchmesser der Schleifringe (6, 8) sind so abgestimmt, dass kein Außendurchmesser größer als der des ersten Schleifrings (6) ist.[English]
The invention relates to a rotor (1) for an electric machine (2), in particular for a separately excited synchronous machine. The rotor (1) comprises a rotor shaft (3), which is in the form of a hollow shaft and has a bearing seat (11) on the outer lateral surface thereof, and a slip ring module (4), which is inserted into the rotor shaft (3). The slip ring module (4) consists of a first and a second hollow cylindrical slip ring carrier (5, 7), each of which has a slip ring (6, 8) on the outer lateral surface thereof. The slip ring carriers (5, 7) are coaxial with respect to the axis of rotation (12) of the rotor (1), the second slip ring carrier (7) partly engaging into a receiving opening (13) of the first slip ring carrier (5). An insulation wall (16) extends radially outwards from the first slip ring carrier (5). The outer diameter (17) of the insulation wall (16) is equal to or less than the outer diameter (10) of the bearing seat (11). The outer diameters of the slip rings (6, 8) are matched in such a way that no outer diameter is greater than that of the first slip ring (6).[French]
L'invention concerne un rotor (1) pour une machine électrique (2), en particulier pour une machine synchrone à excitation séparée. Le rotor (1) comprend un arbre de rotor (3), qui se présente sous la forme d'un arbre creux et comporte un siège de palier (11) sur sa surface latérale externe, et un module de bagues collectrices (4), qui est inséré dans l'arbre de rotor (3). Le module de bagues collectrices (4) est constitué d'un premier et d'un second support de bague collectrice cylindrique creux (5, 7), chacun d'eux comportant une bague collectrice (6, 8) sur sa surface latérale externe. Les supports de bague collectrice (5, 7) sont coaxiaux par rapport à l'axe de rotation (12) du rotor (1), le second support de bague collectrice (7) venant partiellement en prise dans une ouverture de réception (13) du premier support de bague collectrice (5). Une paroi d'isolation (16) s'étend radialement vers l'extérieur à partir du premier support de bague collectrice (5). Le diamètre externe (17) de la paroi d'isolation (16) est inférieur ou égal au diamètre externe (10) du siège de palier (11). Les diamètres externes des bagues collectrices (6, 8) sont accordés de telle sorte qu'aucun diamètre externe n'est supérieur à celui de la première bague collectrice (6).
