WO2026032470 - FEDERANGESTELLTE SCROLL-KOMPRESSOR-LAGERUNG
National phase entry is expected:
Publication Number
WO/2026/032470
Publication Date
12.02.2026
International Application No.
PCT/DE2025/100663
International Filing Date
11.07.2025
Title **
[German]
FEDERANGESTELLTE SCROLL-KOMPRESSOR-LAGERUNG
[English]
SPRING-LOADED SCROLL COMPRESSOR BEARING
[French]
PALIER DE COMPRESSEUR À SPIRALE À RESSORT
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
HILBINGER, Jürgen
STURM, Frank
MAYR, Christian
Priority Data
102024122792.3
09.08.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1882 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2000 | |
| South Korea | Filing, Examination, Granting | 1754 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,483
Contact Us
Abstract[German]
Erfindungsgemäß wird ein elektromechanisch betriebener Spiralverdichter mit einer Orbitallageranordnung (1 ) mit einem Orbitallager (3) zur Lagerung eines eine Verdichterspirale (2) aufweisenden Verdichterrades (17) gegenüber einer Motorwelle (4) vorgeschlagen, wobei ein Federelement (8) axial zwischen dem Orbitallager (3) und dem Verdichterrad (17) angeordnet ist, das Federelement (8) sich am Verdichterrad (17) abstützt, und das Federelement (8) den Innenring (5) zum Außenring (6) axial vorspannen kann, damit im Orbitallager (3) kein axiales Spiel mehr vorhanden ist.[English]

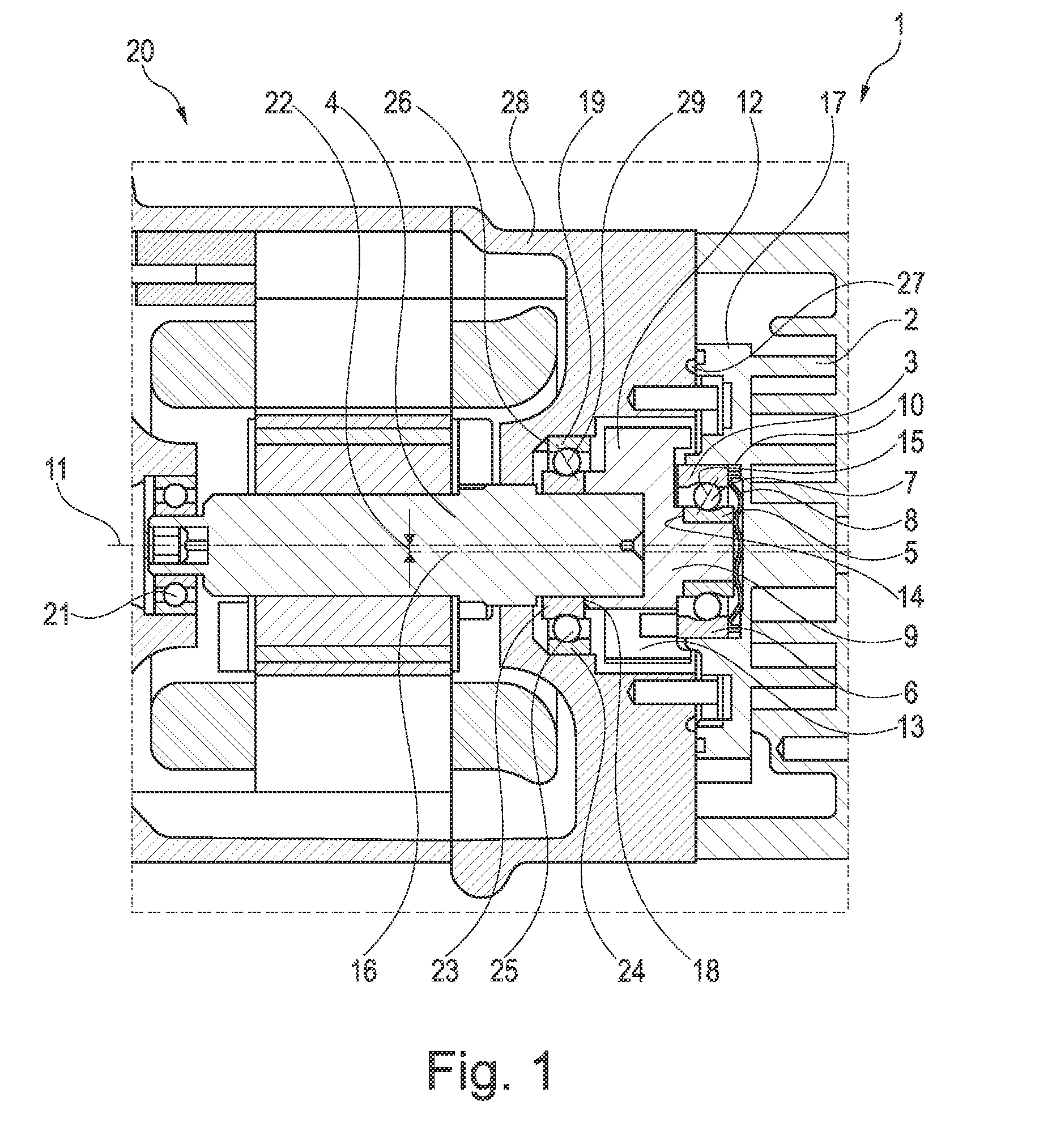

The invention relates to an electromechanically operated scroll compressor having an orbital bearing assembly (1) comprising an orbital bearing (3) for mounting a compressor wheel (17), which has a compressor scroll (2), with respect to a motor shaft (4), wherein: a spring element (8) is located axially between the orbital bearing (3) and the compressor wheel (17); the spring element (8) is supported against the compressor wheel (17); and the spring element (8) can axially preload the inner ring (5) with respect to the outer ring (6) so that there is no longer any axial play in the orbital bearing (3).[French]
L'invention concerne un compresseur à spirale à commande électromécanique ayant un ensemble palier orbital (1) comprenant un palier orbital (3) pour monter une roue de compresseur (17), qui a une spirale de compresseur (2), par rapport à un arbre de moteur (4), dans lequel : un élément ressort (8) est situé axialement entre le palier orbital (3) et la roue de compresseur (17) ; l'élément ressort (8) est supporté contre la roue de compresseur (17) ; et l'élément ressort (8) peut précharger axialement la bague interne (5) par rapport à la bague externe (6) de sorte qu'il n'y ait plus de jeu axial dans le palier orbital (3).
