WO2026046453 - DREHMOMENTBEGRENZUNGSVORRICHTUNG
National phase entry is expected:
Publication Number
WO/2026/046453
Publication Date
05.03.2026
International Application No.
PCT/DE2025/100484
International Filing Date
16.05.2025
Title **
[German]
DREHMOMENTBEGRENZUNGSVORRICHTUNG
[English]
TORQUE-LIMITING DEVICE
[French]
DISPOSITIF DE LIMITATION DE COUPLE
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
DANNHÄUSER, Matthias
ACKER, Christophe
WELLER, Uwe
REUTER, Björn
Priority Data
102024124687.1
29.08.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1967 | |
| EPO | Filing, Examination, Granting | 8113 | |
| Japan | Filing, Examination, Granting | 2091 | |
| South Korea | Filing, Examination, Granting | 1945 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
18,856
Contact Us
Abstract[German]

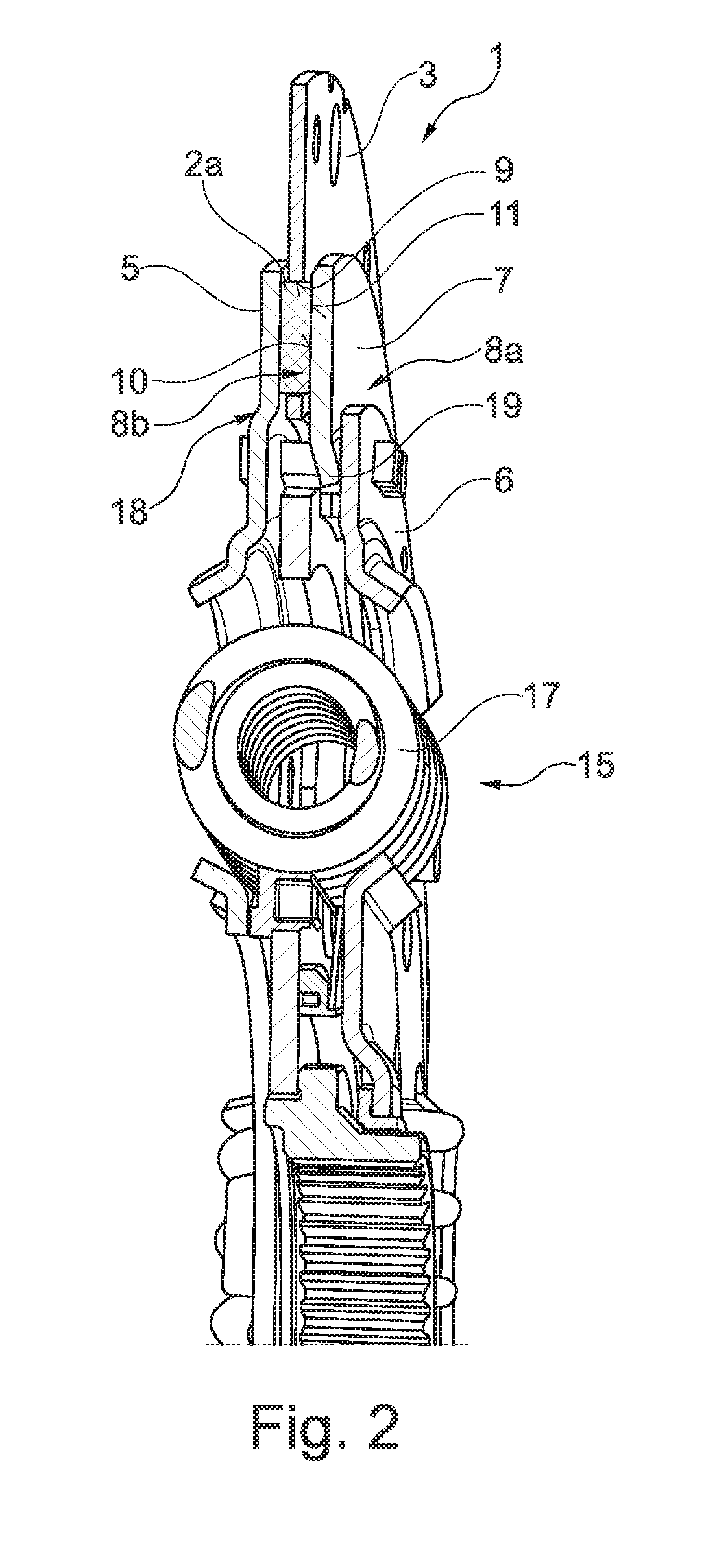

Die Erfindung betrifft eine Drehmomentbegrenzungsvorrichtung (1) für einen hybridisierten Antriebsstrang eines Kraftfahrzeuges, mit einer eingangsseitigen Trägerscheibe (3), durch die sich zumindest ein Reibbelagselement (2a) in axialer Richtung der Drehmomentbegrenzungsvorrichtung (1) hindurch erstreckt, zwei zu einander abgewandten Seiten (4a, 4b) der Trägerscheibe (3) angeordneten Seitenteilen (5, 6) und einer Tellerfeder (7), die ein erstes (5) der Seitenteile (5, 6) reibkraftschlüssig gegen das zumindest eine Reibbelagselement (2a) drückt, wobei die Tellerfeder (7) mit ihrer ersten axialen Seite (8a) an einem zweiten (6) der Seitenteile (5, 6) anliegt und mit ihrer zweiten axialen Seite (8b) direkt an dem zumindest einen Reibbelagselement (2a) anliegt oder das Reibbelagselemente (2a) zumindest mittelbar über eine an der zweiten axialen Seite (8b) anliegenden Druckplatte beaufschlagt.[English]
