WO2025261549 - TELESKOPSÄULE MIT SEPARATER TRANSMISSIONSWELLE

National phase entry is expected:
Publication Number WO/2025/261549
Publication Date 26.12.2025
International Application No. PCT/DE2025/100430
International Filing Date 30.04.2025
Title **
[German] TELESKOPSÄULE MIT SEPARATER TRANSMISSIONSWELLE
[English] TELESCOPIC COLUMN WITH SEPARATE TRANSMISSION SHAFT
[French] COLONNE TÉLESCOPIQUE À ARBRE DE TRANSMISSION SÉPARÉ
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
HAN, Doowon
PARK, Jinho
Priority Data
102024116895.1   17.06.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1882
EPO Filing, Examination, Granting8107
Japan Filing, Examination, Granting2000
South Korea Filing, Examination, Granting1754
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 18,483
Contact Us

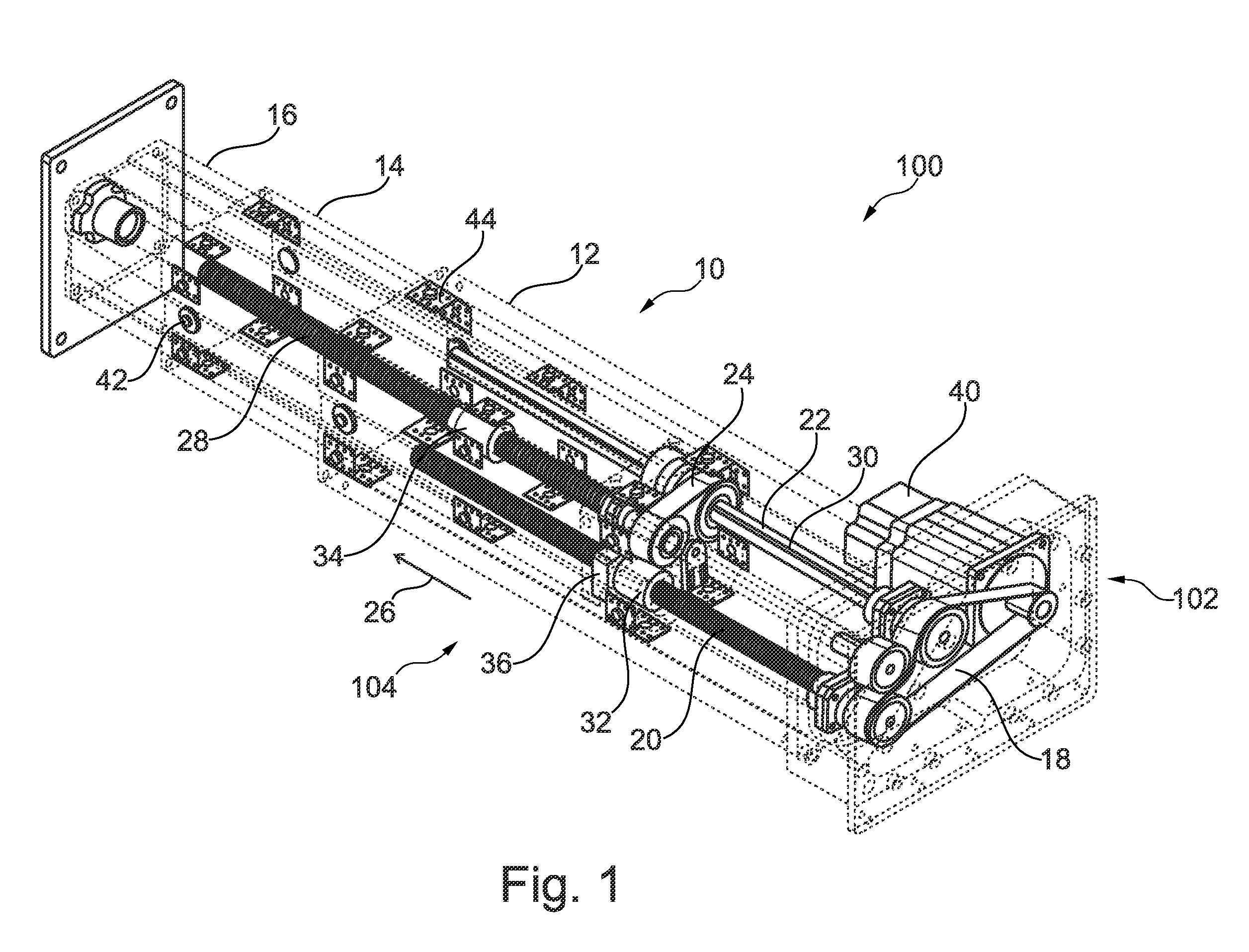

Abstract[German] Die Erfindung betrifft eine Teleskopsäule (10) mit drei gemäß einer vorbestimmten Reihenfolge zumindest teilweise ineinander angeordneten Säulenelementen (12, 14, 16), einem ersten Getriebe (18) sowie einer ersten Gewindespindel (20), welche mittels des ersten Getriebes (18) drehbeweglich antreibbar und relativ zu einem äußersten Säulenelement (12) der drei Säulenelemente (12, 14, 16) axial festgelegt ist. Des Weiteren weist die Teleskopsäule (10) eine Transmissionswelle (22) auf, welche separat von der ersten Gewindespindel (20) ausgebildet sowie beabstandet und im Wesentlichen parallel zu der ersten Gewindespindel (20) angeordnet ist, welche mittels des ersten Getriebes (18) drehbeweglich antreibbar und relativ zu dem äußersten Säulenelement (12) axial festgelegt ist. Überdies ist ein zweites Getriebe (24) vorgesehen, welches mittels der Transmissionswelle (22) antreibbar ist und welches entlang einer Hubrichtung (26) der Teleskopsäule (10) linear beweglich ist. Zudem ist eine zweite Gewindespindel (28) vorgesehen, welche mittels des zweiten Getriebes (24) drehbeweglich antreibbar und relativ zu einem mittleren Säulenelement (14) axial festgelegt ist.[English] The invention relates to a telescopic column (10) having three column elements (12, 14, 16) arranged at least partially inside one another according to a predetermined sequence, a first gear mechanism (18), and a first threaded spindle (20) which can be rotatably driven by means of the first gear mechanism (18) and is axially fixed relative to an outermost column element (12) of the three column elements (12, 14, 16). Furthermore, the telescopic column (10) has a transmission shaft (22), which is formed separately from the first threaded spindle (20) and is arranged at a distance from and substantially parallel to the first threaded spindle (20) and which can be rotatably driven by means of the first gear mechanism (18) and is axially fixed relative to the outermost column element (12). Moreover, a second gear mechanism (24) is provided, which can be driven by means of the transmission shaft (22) and which is linearly movable along a lifting direction (26) of the telescopic column (10). In addition, a second threaded spindle (28) is provided, which can be rotatably driven by means of the second gear mechanism (24) and is axially fixed relative to a central column element (14).[French] L'invention concerne une colonne télescopique (10) comportant trois éléments de colonne (12, 14, 16) agencés au moins partiellement les uns à l'intérieur des autres en fonction d'une séquence prédéterminée, un premier mécanisme d'engrenage (18), et une première broche filetée (20) qui peut être entraînée en rotation au moyen du premier mécanisme d'engrenage (18) et est axialement fixe par rapport à un élément de colonne le plus à l'extérieur (12) des trois éléments de colonne (12, 14, 16). En outre, la colonne télescopique (10) comporte un arbre de transmission (22), qui est formé séparément de la première broche filetée (20) et est agencé à une certaine distance de la première broche filetée (20) et de manière sensiblement parallèle à celle-ci et qui peut être entraîné en rotation au moyen du premier mécanisme d'engrenage (18) et est axialement fixe par rapport à l'élément de colonne le plus à l'extérieur (12). De plus, un second mécanisme d'engrenage (24) est prévu, qui peut être entraîné au moyen de l'arbre de transmission (22) et qui est mobile linéairement dans le sens de levage (26) de la colonne télescopique (10). De plus, une seconde broche filetée (28) est prévue, qui peut être entraînée en rotation au moyen du second mécanisme d'engrenage (24) et est axialement fixe par rapport à un élément de colonne central (14).
