WO2025201594 - GLEITLAGERANORDNUNG
National phase entry is expected:
Publication Number
WO/2025/201594
Publication Date
02.10.2025
International Application No.
PCT/DE2025/100229
International Filing Date
03.03.2025
Title **
[German]
GLEITLAGERANORDNUNG
[English]
SLIDING BEARING ASSEMBLY
[French]
ENSEMBLE PALIER COULISSANT
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
HENTSCHKE, Christoph
HAUER, Franz
JUNGWIRTH, Martin
Priority Data
102024108596.7
26.03.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1882 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2000 | |
| South Korea | Filing, Examination, Granting | 1754 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,483
Contact Us
Abstract[German]
Ein Gleitlageranordnung (1) umfasst ein Gleitlagerelement (2), durch welches eine Gleitfläche (3) zur Lagerung einer Welle bereitgestellt wird, sowie ein das Gleitlagerelement (2) zumindest geringfügig kippbar abstützendes Gehäuseelement (5). Das Gleitlagerelement (2) weist einen von der Gleitfläche (3) abgewandten, einer Oberfläche (6) des Gehäuseelementes (5) zugewandten Dorn (8) auf. Zwischen derjenigen Oberfläche (9) des Gleitlagerelementes (2), aus welcher der Dorn (8) herausragt, und der Oberfläche (6) des Gehäuseelementes (5) ist ein Freiraum (11) gebildet, im Freiraum (11) ist ein ringscheibenförmiges elastisches, zur Übertragung von Kräften zwischen dem Gleitlagerelement (2) und dem Gehäuseelement (5) vorgesehenes Element (7) mit nicht zylindrischer Außenumfangsfläche (12) angeordnet.[English]

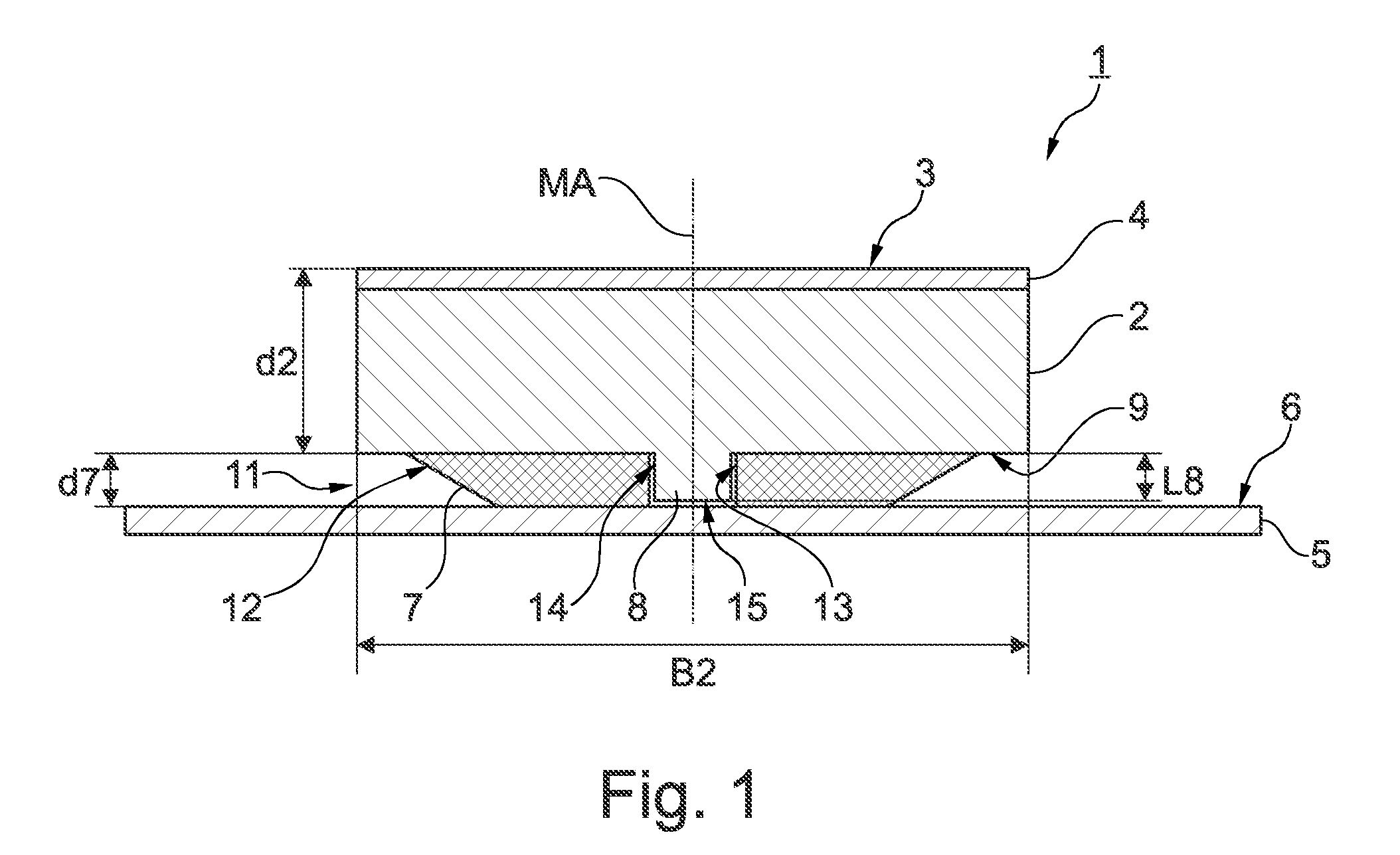

A sliding bearing arrangement (1) comprises a sliding bearing element (2) by means of which a sliding surface (3) for mounting a shaft is provided, and a housing element (5) which supports the sliding bearing element (2) in an at least slightly tiltable manner. The sliding bearing element (2) has a mandrel (8) facing away from the sliding surface (3) and facing a surface (6) of the housing element (5). A free space (11) is formed between the surface (9) of the sliding bearing element (2) from which the mandrel (8) projects and the surface (6) of the housing element (5). An elastic element (7) in the form of an annular disc is provided in the free space (11), said elastic element being provided for transmitting forces between the sliding bearing element (2) and the housing element (5) and having a non-cylindrical outer circumferential surface (12).[French]
Un agencement de palier coulissant (1) comprend un élément palier coulissant (2) qui fournit une surface de coulissement (3) pour le montage d'un arbre, et un élément logement (5) qui supporte l'élément palier coulissant (2) d'une manière au moins légèrement inclinable. L'élément palier coulissant (2) comporte un mandrin (8) opposé à la surface de coulissement (3) et faisant face à une surface (6) de l'élément logement (5). Un espace libre (11) est formé entre la surface (9) de l'élément palier coulissant (2) à partir de laquelle le mandrin (8) fait saillie et la surface (6) de l'élément logement (5). Un élément élastique (7) sous la forme d'un disque annulaire est placé dans l'espace libre (11), ledit élément élastique étant prévu pour transmettre des forces entre l'élément palier coulissant (2) et l'élément logement (5) et ayant une surface circonférentielle externe non cylindrique (12).
