WO2025153143 - ROTORWELLE EINES ROTORS EINER ELEKTRISCHEN MASCHINE, ROTOR SOWIE ELEKTRISCHE MASCHINE

National phase entry is expected:
Publication Number WO/2025/153143
Publication Date 24.07.2025
International Application No. PCT/DE2025/100046
International Filing Date 13.01.2025
Title **
[German] ROTORWELLE EINES ROTORS EINER ELEKTRISCHEN MASCHINE, ROTOR SOWIE ELEKTRISCHE MASCHINE
[English] ROTOR SHAFT OF A ROTOR OF AN ELECTRIC MACHINE, ROTOR, AND ELECTRIC MACHINE
[French] ARBRE DE ROTOR D'UN ROTOR DE MACHINE ÉLECTRIQUE, ROTOR ET MACHINE ÉLECTRIQUE
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
RAUH, Joachim
GEYER, Norbert
HUSSENETHER, Thomas
JUNKER, Marco
SCHREIBER, Benedikt
Priority Data
102024101545.4   19.01.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1880
EPO Filing, Examination, Granting8113
Japan Filing, Examination, Granting1998
South Korea Filing, Examination, Granting1757
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 18,488
Contact Us

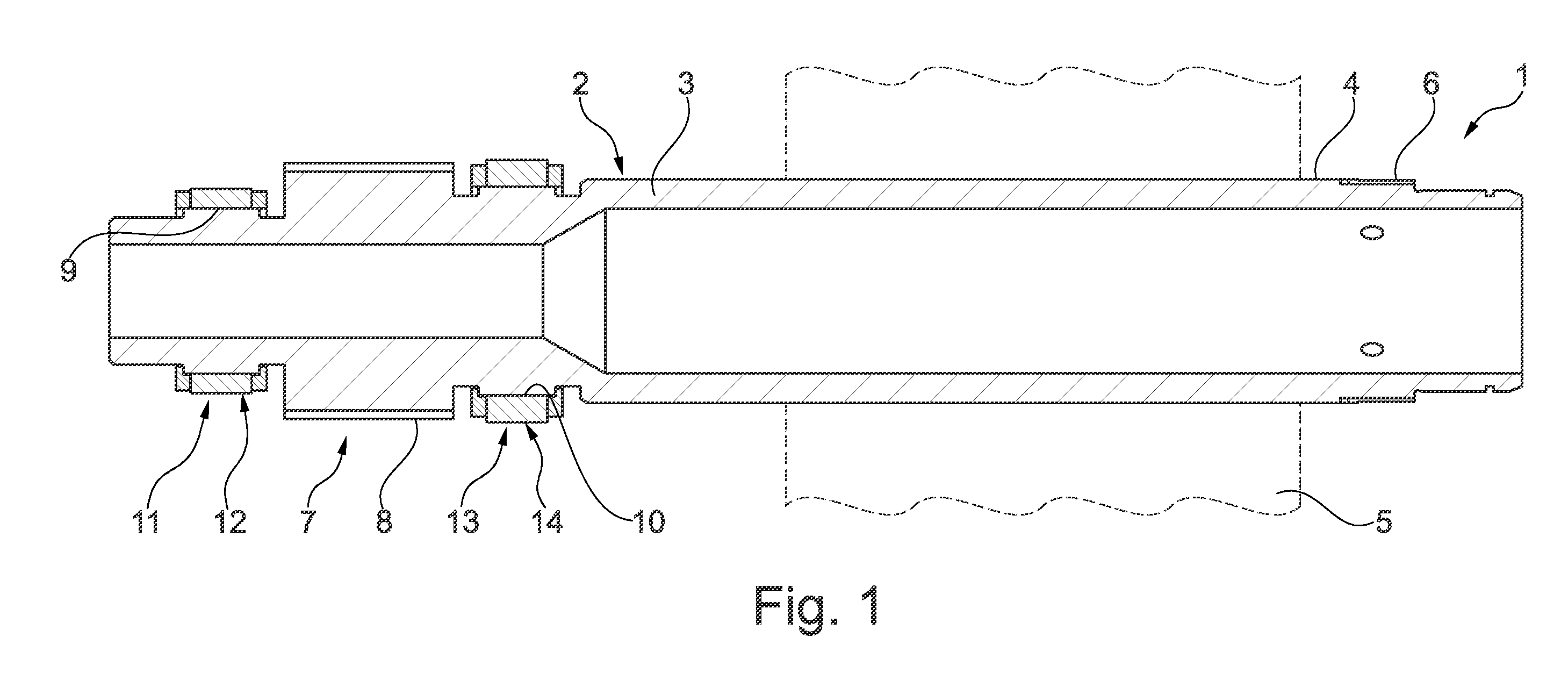

Abstract[German] Rotorwelle eines Rotors einer elektrischen Maschine, mit einem Wellenbauteil (3), an dem unmittelbar ein Verzahnungsabschnitt (7) mit einer Außenverzahnung (8) ausgearbeitet ist, und an dem unmittelbar, axial benachbart zum Verzahnungsabschnitt (7), eine erste und eine zweite, jeweils radiale Wälzkörperlaufbahn (9, 10) ausgearbeitet ist, wobei der Verzahnungsabschnitt (7) axial gesehen zwischen der ersten und der zweiten Wälzkörperlaufbahn (9, 10) vorgesehen ist, wobei auf der ersten Wälzkörperlaufbahn (9) ein ringförmiges erstes Wälzlager (11 ) umfassend in einem ersten Käfig (15) geführte erste Wälzkörper (16), die direkt auf der ersten Wälzkörperlaufbahn (9) wälzen, und auf der zweiten Wälzkörperlaufbahn (10) ein ringförmiges zweites Wälzlager (13) umfassend in einem zweiten Käfig (17) geführte zweite Wälzkörper (18), die direkt auf der zweiten Wälzkörperlaufbahn (10) wälzen sitzt, wobei der Durchmesser (dH1 ) eines Hüllkreis der ersten Wälzkörper (16) kleiner als der Durchmesser (dF) eines Fußkreises der Außenverzahnung (8) ist, und wobei der Durchmesser (dH2) eines Hüllkreise der zweiten Wälzkörper (18) größer als der Durchmesser (dK) eines Kopfkreises der Außenverzahnung (8) ist.[English] The invention relates to a rotor shaft of a rotor of an electric machine, comprising a shaft component (3) on which a toothing portion (7) having an external toothing (8) is directly formed and on which a first and a second, in each case radial, rolling element raceway (9, 10) are directly formed axially adjacent to the toothing portion (7), wherein: the toothing portion (7) is provided axially between the first and the second rolling element raceway (9, 10); an annular first rolling bearing (11) comprising first rolling elements (16) guided in a first cage (15) is seated on the first rolling element raceway (9), said first rolling elements rolling directly on the first rolling element raceway (9), and an annular second rolling bearing (13) comprising second rolling elements (18) guided in a second cage (17) is seated on the second rolling element raceway (10), said second rolling elements rolling directly on the second rolling element raceway (10); the diameter (dH1) of an envelope circle of the first rolling elements (16) is less than the diameter (dF) of a root circle of the external toothing (8); and the diameter (dH2) of an envelope circle of the second rolling elements (18) is greater than the diameter (dK) of a tip circle of the external toothing (8).[French] L'invention concerne un arbre de rotor d'un rotor de machine électrique, comprenant un composant (3) d’arbre sur lequel une partie (7) de denture dotée d’une denture externe (8) est directement formée et sur lequel un premier et un second chemin de roulement (9, 10), tous deux radiaux, pour éléments de roulement sont directement formés en position axialement adjacente à la partie (7) de denture : la partie (7) de denture étant placée axialement entre le premier et le second chemin de roulement (9, 10) pour éléments de roulement ; un premier palier (11) à roulement annulaire qui comprend des premiers éléments (16) de roulement guidés dans une première cage (15) reposant sur le premier chemin de roulement (9) pour éléments de roulement, lesdits premiers éléments de roulement roulant directement sur le premier chemin de roulement (9) pour éléments de roulement, et un second palier (13) à roulement annulaire qui comprend des seconds éléments (18) de roulement guidés dans une seconde cage (17) reposant sur le second chemin de roulement (10) pour éléments de roulement, lesdits seconds éléments de roulement roulant directement sur le second chemin de roulement (10) pour éléments de roulement ; le diamètre (dH1) d'un cercle d'enveloppe des premiers éléments (16) de roulement est inférieur au diamètre (dF) d'un cercle de pied de la denture externe (8) ; et le diamètre (dH2) d'un cercle d'enveloppe des seconds éléments (18) de roulement est supérieur au diamètre (dK) d'un cercle de tête de la denture externe (8).
