WO2025056107 - BUSBAR MIT FORMVERSTEIFUNG
National phase entry is expected:
Publication Number
WO/2025/056107
Publication Date
20.03.2025
International Application No.
PCT/DE2024/100705
International Filing Date
09.08.2024
Title **
[German]
BUSBAR MIT FORMVERSTEIFUNG
[English]
BUSBAR WITH SHAPE REINFORCEMENT
[French]
BARRE OMNIBUS À RENFORCEMENT DE FORME
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
SCHEHRER, Nicolas
Priority Data
102023124936.3
15.09.2023
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1882 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2000 | |
| South Korea | Filing, Examination, Granting | 1754 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,483
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[German]
Die vorliegende Offenbarung betrifft einen Busbar (1 ) zur elektrischen Verbindung eines Hochvolt-Terminals eines Stators mit einer Wicklung des Stators, mit einem sich im Wesentlichen in Form einer länglichen Platte erstreckenden Hauptkörper (2), zwei mit dem Hauptkörper (2) verbundenen, sich senkrecht zur Plattenebene erstreckenden, zur Kontaktierung der Wicklung des Stators dienenden Kontaktabschnitten (3), und einem mit dem Hauptkörper (2) verbundenen, sich senkrecht zur Plattenebene erstreckenden, zur Befestigung an dem Hochvolt-Terminal dienenden Befestigungsabschnitt (4), wobei der Hauptkörper (2) eine Versteifung (5) in seiner Längsrichtung aufweist.[English]

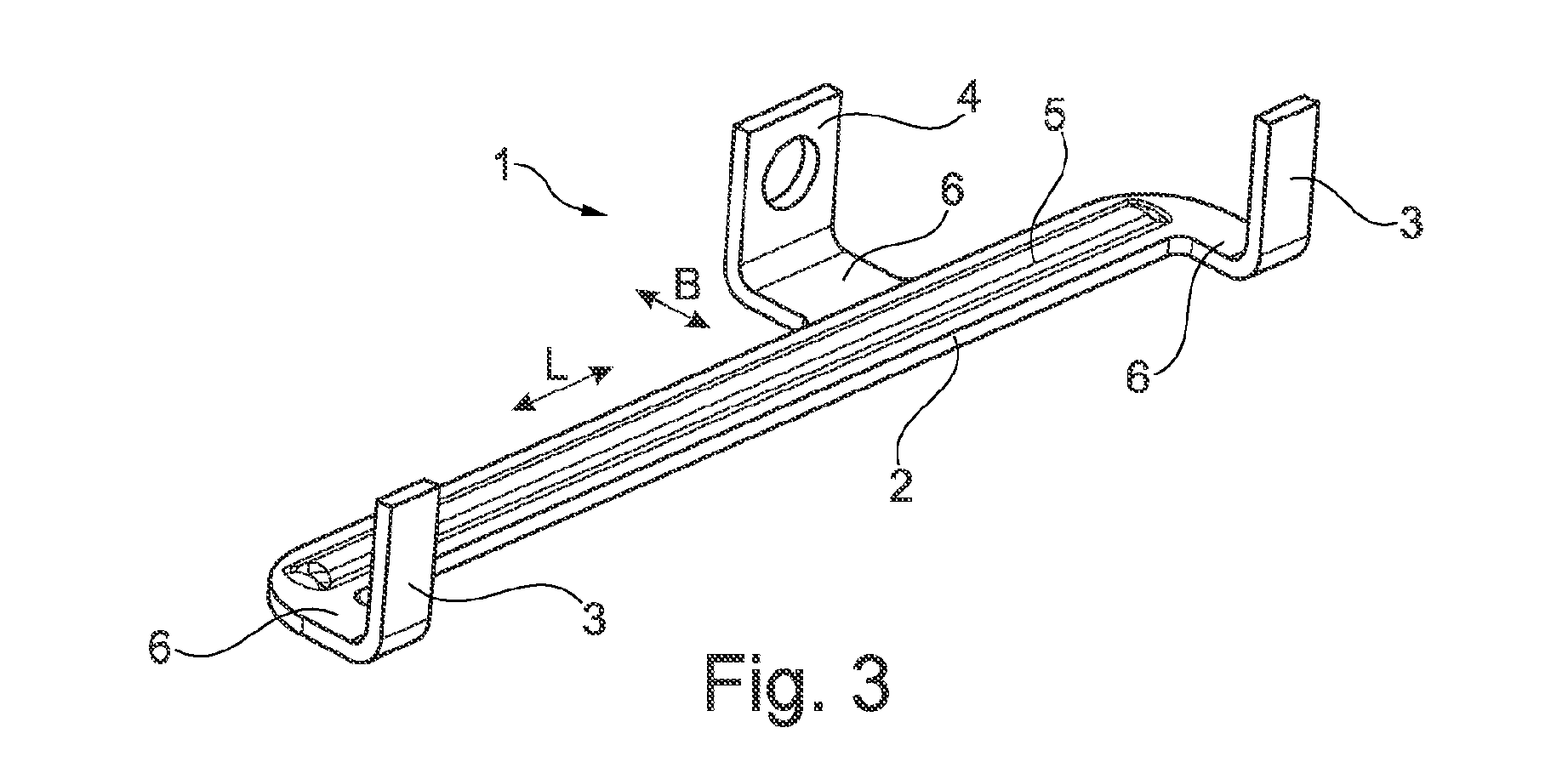

The present disclosure relates to a busbar (1) for electrically connecting a high-voltage terminal of a stator to a winding of the stator, the busbar having: a main element (2), which extends substantially in the form of an elongate plate; two contact portions (3), which are connected to the main element (2), extend perpendicularly to the plate plane and are used for contacting the winding of the stator; and a fastening portion (4), which is connected to the main element (2), extends perpendicularly to the plate plane and is used for fastening to the high-voltage terminal, wherein the main element (2) has a reinforcement (5) in its longitudinal direction.[French]
La présente invention concerne une barre omnibus (1) pour connecter électriquement une borne haute tension d'un stator à un enroulement du stator, la barre omnibus ayant : un élément principal (2), qui s'étend sensiblement sous la forme d'une plaque allongée ; deux parties de contact (3), qui sont reliées à l'élément principal (2), s'étendent perpendiculairement au plan de plaque et sont utilisées pour entrer en contact avec l'enroulement du stator ; et une partie de fixation (4), qui est reliée à l'élément principal (2), s'étend perpendiculairement au plan de plaque et est utilisée pour être fixée à la borne haute tension, l'élément principal (2) ayant un renforcement (5) dans sa direction longitudinale.
