WO2024183846 - GETRIEBE MIT EINEM HYDRAULIKMITTELVERTEILELEMENT AUFWEISEND MEHRERE KANÄLE

National phase entry is expected:
Publication Number WO/2024/183846
Publication Date 12.09.2024
International Application No. PCT/DE2024/100104
International Filing Date 07.02.2024
Title **
[German] GETRIEBE MIT EINEM HYDRAULIKMITTELVERTEILELEMENT AUFWEISEND MEHRERE KANÄLE
[English] TRANSMISSION HAVING A HYDRAULIC-MEDIUM DISTRIBUTION ELEMENT COMPRISING A PLURALITY OF CHANNELS
[French] BOÎTE DE VITESSES PRÉSENTANT UN ÉLÉMENT DE DISTRIBUTION DE MILIEU HYDRAULIQUE COMPRENANT UNE PLURALITÉ DE CANAUX
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG Industriestraße 1-3 91074 Herzogenaurach, DE
Inventors
HANS, Dominik Wagnerstraße 10 76461 Muggensturm, DE
LEHMANN, Steffen Zehntwiesenstr. 31K 76275 Ettlingen, DE
Priority Data
102023105800.2   09.03.2023   DE

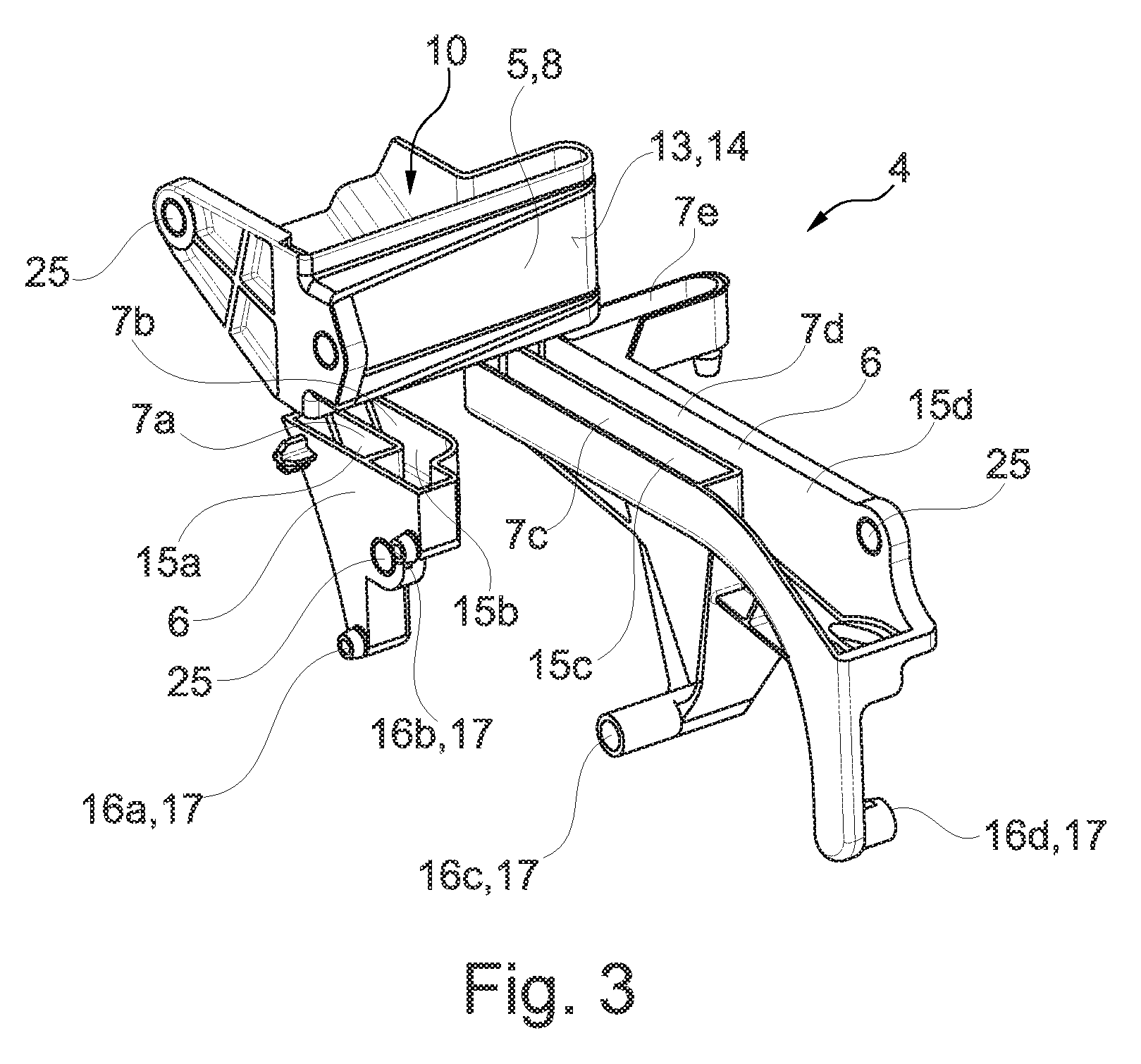

front page image
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
*
International Searching Authority
*
Applicant's Legal Status
*
*
*
*
*
Entry into National Phase under
*
Translation

Recalculate

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing971
EPO Filing, Examination4570
Japan Filing598
South Korea Filing575
USA Filing, Examination2710
MasterCard Visa

Total: 9424

The term for entry into the National Phase has expired. This quotation is for informational purposes only

Abstract[German] Die Erfindung betrifft ein Getriebe (1 ) für einen Antriebsstrang eines Kraftfahrzeuges, mit einem zur Hydraulikmittelverteilung dienenden Zahnrad (2) und einem das Zahnrad (2) an einem Umfangsbereich (3) umgebenden Hydraulikmittelverteilelement (4), wobei das Hydraulikmittelverteilelement (4) einen trichterförmigen Sammelbehälter (5) aufweist, der derart ausgebildet ist, dass er bei Rotation des Zahnrades (2) zumindest einen Teil eines in einer Drehrichtung des Zahnrads (2) beförderten Hydraulikmittels auffängt, und wobei das Hydraulikmittelverteilelement (4) ferner einen Verteilabschnitt (6) mit mehreren voneinander getrennten Kanälen (7a, 7b, 7c, 7d) aufweist und jeder Kanal (7a, 7b, 7c, 7d) durch eine eigene, eine Wandung (8) des Sammelbehälters (5) durchdringende Dosieröffnung (9a, 9b, 9c, 9d) mit einem Speicherraum (10) des Sammelbehälters (5) verbunden ist.[English] The invention relates to a transmission (1) for a drive train of a motor vehicle, comprising a gear (2) which is used to distribute hydraulic medium and a hydraulic-medium distribution element (4) surrounding the gear (2) in a peripheral region (3), wherein the hydraulic-medium distribution element (4) comprises a funnel-shaped collection container (5) which is designed such that, during rotation of the gear (2), the collection container catches at least part of a hydraulic medium conveyed in a direction of rotation of the gear (2), and wherein the hydraulic-medium distribution element (4) also comprises a distribution portion (6) having a plurality of mutually separate channels (7a, 7b, 7c, 7d) and each channel (7a, 7b, 7c, 7d) is connected to a storage space (10) of the collection container (5) by a separate metering opening (9a, 9b, 9c, 9d) extending through a wall (8) of the collection container (5).[French] L'invention se rapporte à une transmission (1) pour une chaîne cinématique d'un véhicule automobile, comprenant un engrenage (2) qui est utilisé pour distribuer un milieu hydraulique et un élément de distribution de milieu hydraulique (4) entourant l'engrenage (2) dans une région périphérique (3), l'élément de distribution de milieu hydraulique (4) comprenant un récipient de collecte en forme d'entonnoir (5) qui est conçu de sorte que, pendant la rotation de l'engrenage (2), le récipient de collecte capture au moins une partie d'un milieu hydraulique transporté dans une direction de rotation de l'engrenage (2), et l'élément de distribution de milieu hydraulique (4) comprenant également une partie de distribution (6) présentant une pluralité de canaux mutuellement séparés (7a, 7b, 7c, 7d) et chaque canal (7a, 7b, 7c, 7d) est raccordé à un espace de stockage (10) du récipient de collecte (5) par une ouverture de dosage séparée (9a, 9b, 9c, 9d) s'étendant à travers une paroi (8) du récipient de collecte (5).
