WO2024160315 - ROTOR UND ELEKTRISCHE MASCHINE
National phase entry is expected:
Publication Number
WO/2024/160315
Publication Date
08.08.2024
International Application No.
PCT/DE2023/100952
International Filing Date
08.12.2023
Title **
[German]
ROTOR UND ELEKTRISCHE MASCHINE
[English]
ROTOR AND ELECTRIC MACHINE
[French]
ROTOR ET MACHINE ÉLECTRIQUE
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Industriestraße 1-3
91074 Herzogenaurach, DE
Inventors
HELLER, Jean-Francois
5, rue de la Rheinmatt
67100 Strassburg, FR
HÄSSLER, Martin
Werderstraße 2
76676 Graben-Neudorf, DE
RUSCH, Alain
18 rue des Chanvriers
67760 Gambsheim, FR
SARKADI, László
Dudás József utca 7 fsz 1
9700 Szombathely, HU
Priority Data
102023102105.2
30.01.2023
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
EPO
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1114 | |
| EPO | Filing, Examination | 5058 | |
| Japan | Filing | 592 | |
| South Korea | Filing | 575 | |
| USA | Filing, Examination | 2635 |

Total: 9974 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[German]

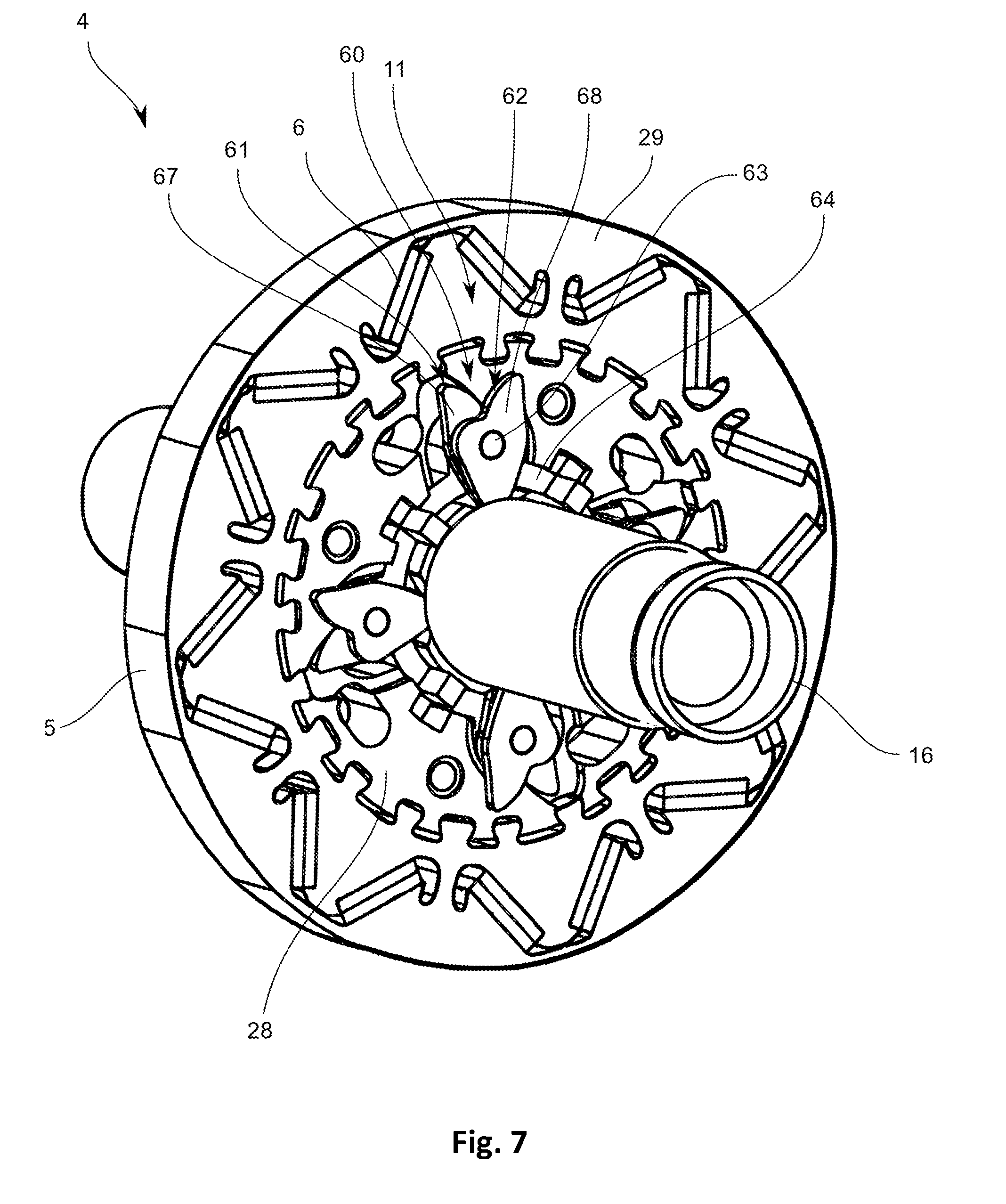

Die Erfindung betrifft einen Rotor (4), wobei der Rotor (4) wenigstens einen ersten Rotorkörper (5) mit einer ersten Gruppe von Permanentmagneten (6) und einen zweiten Rotorkörper (7) mit einer zweiten Gruppe von Permanentmagneten (8) aufweist, wobei der erste Rotorkörper (5) und der zweite Rotorkörper (7) relativ zueinander entgegen der Wirkung einer ersten Verdrehsteifigkeit (9) um eine gemeinsame Drehachse (10) mittels eines mechanischen Feldschwächungsmechanismus (11 ) verdrehbar sind, wobei der Feldschwächungsmechanismus (11 ) ein erstes Hebelelement (60) umfasst, das um einen Drehpunkt schwenkbar ist, wobei der erste Rotorkörper (5) mit einem ersten Hebelabschnitt (61 ) und der zweite Rotorkörper (7) mit einem zweiten Hebelabschnitt (62) des Hebelelements (60) koppelbar ist und der erste Hebelabschnitt (61 ) und der zweite Hebelabschnitt (62) auf in Umfangsrichtung entgegengesetzten Seiten des Hebelelements (60) angeordnet sind, so dass der erste Rotorkörper (5) und der zweite Rotorkörper (7) durch ein Kippen des Hebelelements (60) für eine gewünschte Verstellung des mechanischen Feldschwächungsmechanismus (11 ) zielführend, relativ zueinander verdrehbar sind, wobei koaxial innerhalb des ersten Rotorkörpers (5) und des zweiten Rotorkörpers (7) eine Rotorwelle (16) über das Hebelelement (60) drehmomentübertragend mit dem ersten Rotorkörper (5) und dem zweiten Rotorkörper (7) koppelbar ist, wobei das Hebelelement (60) schwenkbar auf der Rotorwelle (16) angeordnet ist.[English]
