WO2025241689 - VACUUM CLEANER AND DUST COLLECTION SYSTEM

National phase entry is expected:
Publication Number WO/2025/241689
Publication Date 27.11.2025
International Application No. PCT/CN2025/084573
International Filing Date 25.03.2025
Title **
[English] VACUUM CLEANER AND DUST COLLECTION SYSTEM
[French] ASPIRATEUR ET SYSTÈME DE COLLECTE DE POUSSIÈRE
[Chinese] 吸尘器与吸尘系统
Applicants **
SUZHOU VACS ELECTRICAL CO., LTD. Building 2, No. 1229, South Side of Fengyang Road, Weitang Town, Xiangcheng District Suzhou, Jiangsu 215138, CN
Inventors
PENG, Jingsong No. 18, Shunle Road, Taiping Industrial Park, Xiangcheng District Suzhou, Jiangsu 215137, CN
LIANG, Yu No. 18, Shunle Road, Taiping Industrial Park, Xiangcheng District Suzhou, Jiangsu 215137, CN
Priority Data
202421150440.0   24.05.2024   CN
202410653112.0   24.05.2024   CN
front page image
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
*
International Searching Authority
*
Applicant's Legal Status
*
*
*
*
*
Entry into National Phase under
*
Translation

Recalculate

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing1024
EPO Filing, Examination6994
Japan Filing586
South Korea Filing607
USA Filing, Examination2710
MasterCard Visa

Total: 11921

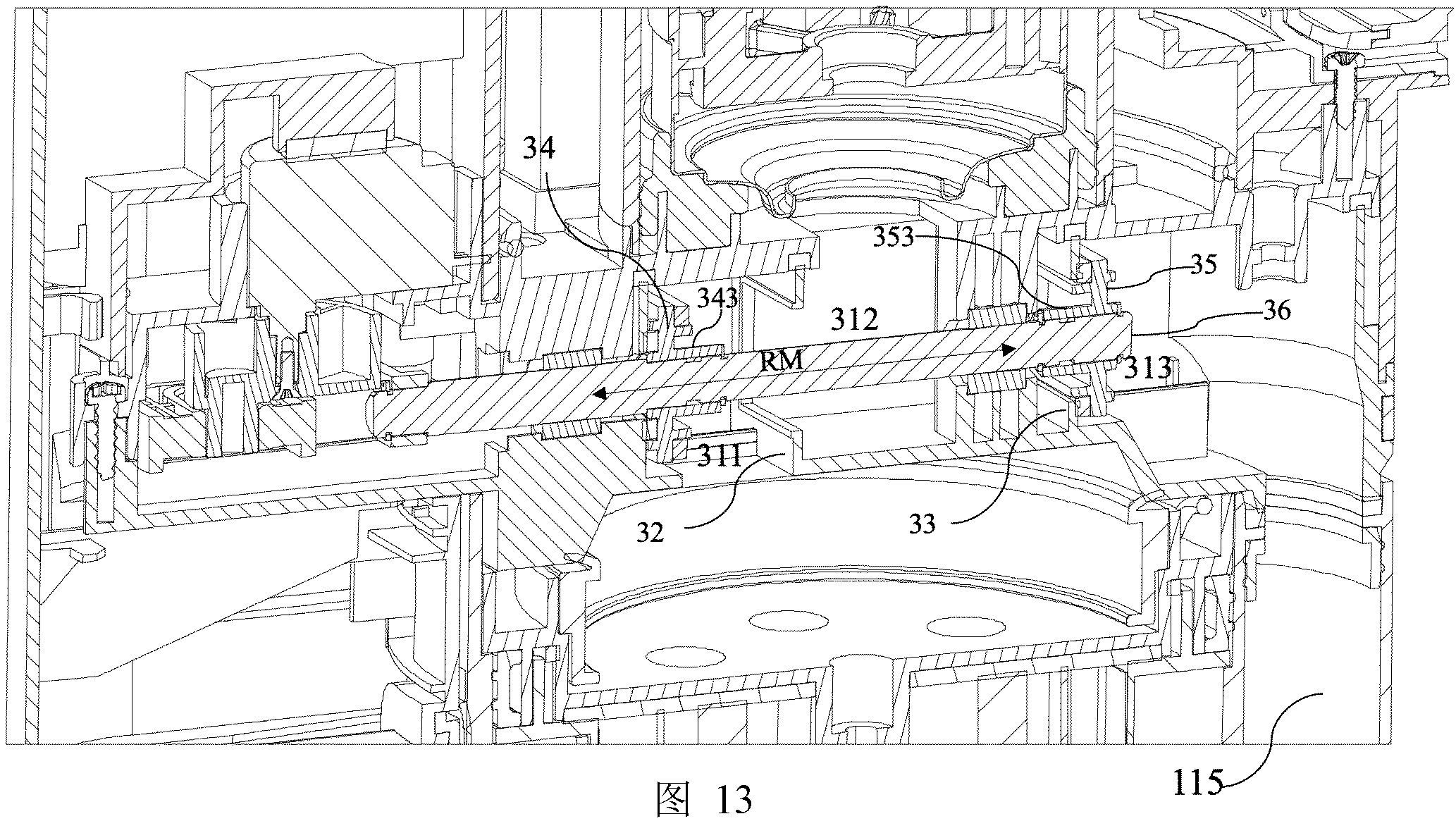

Abstract[English] The present invention relates to the field of vacuum cleaners, and specifically provides a vacuum cleaner and a dust collection system, which can achieve airflow path switching stably and reliably for a long time by means of a simple structure. The dust collection system comprises a vacuum cleaner, a base station, and an airflow path switching portion. A suction force is formed on the basis of negative pressure generated by an electric fan in the vacuum cleaner, the vacuum cleaner forms a floor suction airflow path, and the vacuum cleaner and the base station are connected in a matching manner and then jointly form a dust container emptying airflow path. The airflow path switching portion is used for switching ventilation states of the floor suction airflow path and the dust container emptying airflow path, and comprises a dust container emptying damper provided on the dust container emptying airflow path and opening and closing the dust container emptying airflow path, a floor suction damper provided on the floor suction airflow path and opening and closing the floor suction airflow path, and a switching member connected to a movable part of each damper and switching the two dampers to be alternately in an open state and a closed state. Each damper is configured such that in the closed state, the closed side of the movable part is at a position having lower air pressure relative to the back side.[French] La présente invention concerne le domaine des aspirateurs, et concerne plus précisément un aspirateur et un système de collecte de poussière, qui peuvent réaliser une commutation de voie d'écoulement d'air de manière stable et fiable pendant une longue période au moyen d'une structure simple. Le système de collecte de poussière comprend un aspirateur, une station de base et une partie de commutation de voie d'écoulement d'air. Une force d'aspiration est créée au moyen d'une pression négative générée par un ventilateur électrique dans l'aspirateur, l'aspirateur forme une voie d'écoulement d'air d'aspiration de plancher, et l'aspirateur et la station de base sont reliés de manière correspondante et forment ensuite conjointement une voie d'écoulement d'air de vidange de contenant de poussière. La partie de commutation de voie d'écoulement d'air est utilisée pour commuter des états de ventilation de la voie d'écoulement d'air d'aspiration de plancher et de la voie d'écoulement d'air de vidange de contenant de poussière, et comprend un registre de vidange de contenant de poussière disposé sur la voie d'écoulement d'air de vidange de récipient à poussière et ouvrant et fermant la voie d'écoulement d'air de vidange de contenant de poussière, un registre d'aspiration de plancher disposé sur la voie d'écoulement d'air d'aspiration de plancher et ouvrant et fermant la voie d'écoulement d'air d'aspiration de plancher, ainsi qu'un élément de commutation relié à une partie mobile de chaque registre et commutant les deux registres pour qu'ils passent alternativement d'un état ouvert à un état fermé. Chaque registre est conçu de telle sorte que, dans l'état fermé, le côté fermé de la partie mobile se trouve à une position ayant une pression d'air inférieure par rapport au côté arrière.[Chinese] 本发明属于吸尘器领域,具体提供了吸尘器与吸尘系统,通过简单的结构能长期、稳定、可靠地实现风路转换。吸尘系统包括吸尘器、基站和风路转换部;基于吸尘器中电风机产生的负压形成吸力,吸尘器形成吸地风路,吸尘器与基站匹配相连后共同形成清仓风路;风路转换部,对吸地风路和清仓风路的通风状态进行转换,包括设置在清仓风路上、开闭该风路的清仓风门,设置在吸地风路上、开闭该风路的吸地风门,与每个风门的可移动部分相连、将两个风门转换成交替处于打开和封闭状态的转换件;其中,风门被设置成:在封闭状态时,可移动部分的封闭面侧均比背面侧处于气压更低的位置。
