WO2026001085 - OPTICAL DEFLECTION DEVICE, TRANSMITTING MODULE, LASER RADAR SYSTEM, AND ELECTRONIC DEVICE
National phase entry is expected:
Publication Number
WO/2026/001085
Publication Date
02.01.2026
International Application No.
PCT/CN2025/082356
International Filing Date
13.03.2025
Title **
[English]
OPTICAL DEFLECTION DEVICE, TRANSMITTING MODULE, LASER RADAR SYSTEM, AND ELECTRONIC DEVICE
[French]
DISPOSITIF DE DÉVIATION OPTIQUE, MODULE DE TRANSMISSION, SYSTÈME RADAR LASER ET DISPOSITIF ÉLECTRONIQUE
[Chinese]
一种光偏转器件、发射模组、激光雷达系统和电子设备
Applicants **
FORTSENSE CO., LTD
Inventors
MO, Lianghua
HUANG, Shihua
GU, Limin
LI, Jiapeng
Priority Data
202410826588.X
24.06.2024
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2431 | |
| EPO | Filing, Examination, Granting | 21836 | |
| Japan | Filing, Examination, Granting | 2740 | |
| South Korea | Filing, Examination, Granting | 3391 | |
| USA | Filing, Examination, Granting | 7540 |

Total:
37,938
Contact Us
Abstract[English]

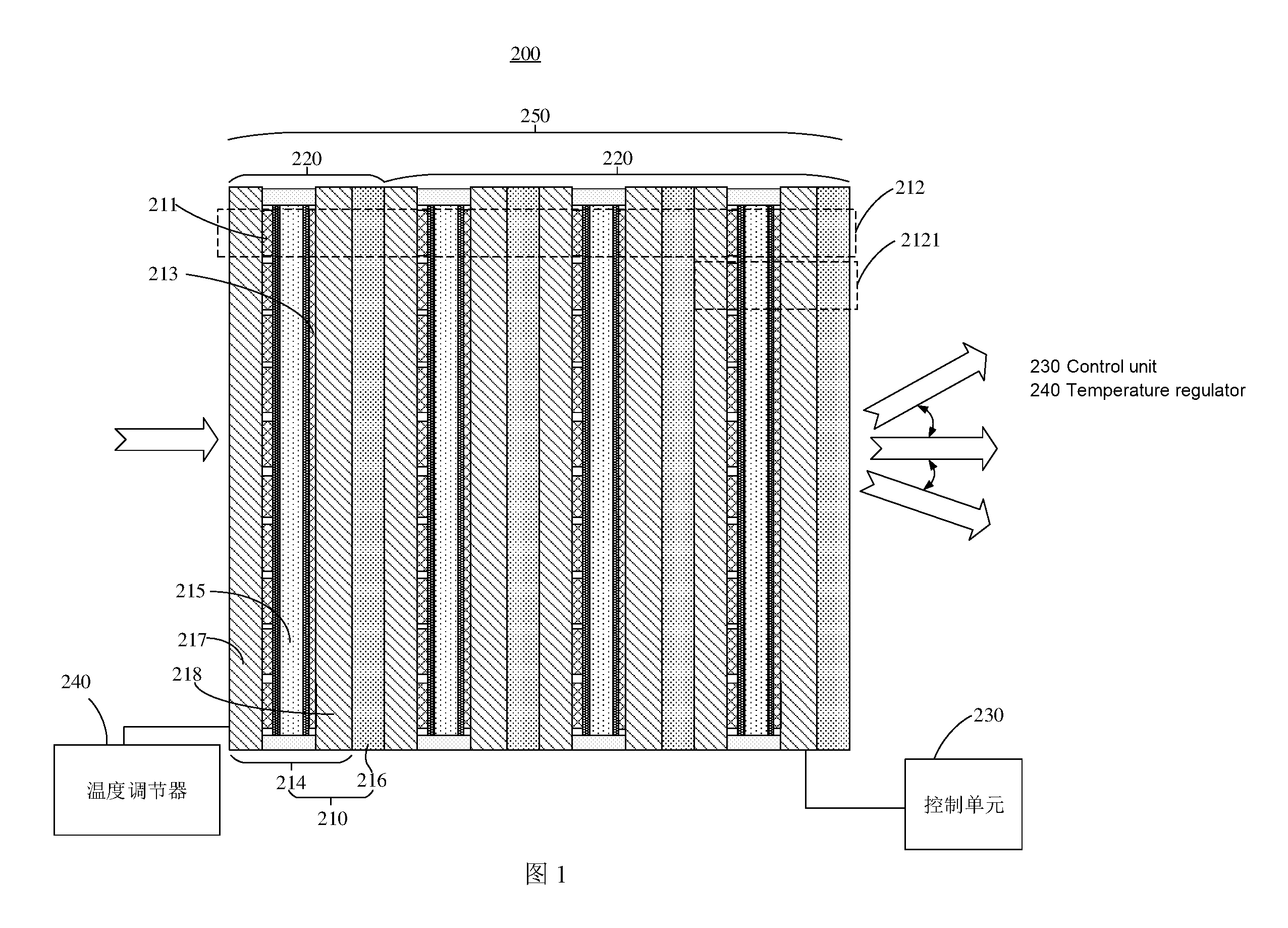

An optical deflection device (200), a transmitting module (1), a laser radar system, and an electronic device. The optical deflection device (200) comprises a control unit (230) and an optical deflection module (250). The optical deflection module (250) comprises a plurality of deflection partitions (212), and each deflection partition (212) can independently adjust a deflection angle of an incident light beam; and the plurality of deflection partitions (212) are configured to receive incident light beams at a plurality of different first deflection angles, and a deflection partition (212) which is currently scanned is used for deflecting the incident light beams by a required second deflection angle. The control unit (230) is used for controlling deflection partitions (212) which are not currently scanned to adjust a deflection angle thereby for the light beams, and at least one deflection partition (212) is configured such that a deflection angle for the incident light beams is adjusted, after the incident light beams have finished scanning within a current deflection period but before the incident light beams start scanning in a next deflection period, to a second deflection angle required for the next deflection period. The deflection partitions (212) in a non-scanning state in the optical deflection module (250) are adjusted, reducing waiting time for angle switching adjustment, thereby improving scanning frame rate.[French]
L'invention concerne un dispositif de déviation optique (200), un module de transmission (1), un système radar laser et un dispositif électronique. Le dispositif de déviation optique (200) comprend une unité de commande (230) et un module de déviation optique (250). Le module de déviation optique (250) comprend une pluralité de cloisons de déviation (212), et chaque cloison de déviation (212) peut régler indépendamment un angle de déviation d'un faisceau lumineux incident ; et la pluralité de cloisons de déviation (212) sont conçues pour recevoir des faisceaux lumineux incidents à une pluralité de premiers angles de déviation différents, et une cloison de déviation (212) qui est actuellement balayée est utilisée pour dévier les faisceaux lumineux incidents d'un second angle de déviation requis. L'unité de commande (230) est utilisée pour commander des cloisons de déviation (212) qui ne sont pas actuellement balayées pour ajuster un angle de déviation ainsi pour les faisceaux lumineux, et au moins une cloison de déviation (212) est configurée de telle sorte qu'un angle de déviation pour les faisceaux lumineux incidents est ajusté, après que les faisceaux lumineux incidents ont terminé un balayage dans une période de déviation actuelle mais avant que les faisceaux lumineux incidents commencent à balayer dans une période de déviation suivante, à un second angle de déviation requis pour la période de déviation suivante. Les cloisons de déviation (212) dans un état de non-balayage dans le module de déviation optique (250) sont ajustées, réduisant le temps d'attente pour un réglage de commutation d'angle, ce qui permet d'améliorer le taux de trame de balayage.[Chinese]
一种光偏转器件(200)、发射模组(1)、激光雷达系统和电子设备。光偏转器件(200),包括控制单元(230)和光偏转模块(250),光偏转模块(250)包括多个偏转分区(212),每个偏转分区(212)对入射光束的偏转角度可单独进行调整;多个偏转分区(212)被配置为接收多个不同的第一偏转角度的入射光束,当前被扫描的偏转分区(212)用于将入射光束偏转所需的第二偏转角度;控制单元(230)用于控制当前未被扫描的偏转分区(212)调整其对光束的偏转角度,至少一个偏转分区(212)对入射光束的偏转角度在当前偏转周期被入射光束扫描结束后,下一个偏转周期被入射光束扫描开始前被调整为下一偏转周期所需的第二偏转角度。通过对光偏转模块中(250)非扫描状态的偏转分区(212)进行调整,减少角度切换调整的等待时间,提高扫描帧率。
