WO2026091357 - SEMICONDUCTOR STRUCTURE AND MANUFACTURING METHOD THEREFOR
National phase entry is expected:
Publication Number
WO/2026/091357
Publication Date
07.05.2026
International Application No.
PCT/CN2025/080727
International Filing Date
05.03.2025
Title **
[English]
SEMICONDUCTOR STRUCTURE AND MANUFACTURING METHOD THEREFOR
[French]
STRUCTURE SEMI-CONDUCTRICE ET SON PROCÉDÉ DE FABRICATION
[Chinese]
半导体结构及其制备方法
Applicants **
CXMT CORPORATION
Inventors
CHEN, Jun
LIN, Lien-Kuan
LEE, Tzung-han
WANG, Chunyang
Priority Data
202411538521.2
30.10.2024
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1720 | |
| EPO | Filing, Examination, Granting | 11558 | |
| Japan | Filing, Examination, Granting | 2153 | |
| South Korea | Filing, Examination, Granting | 2137 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
22,308
Contact Us
Abstract[English]

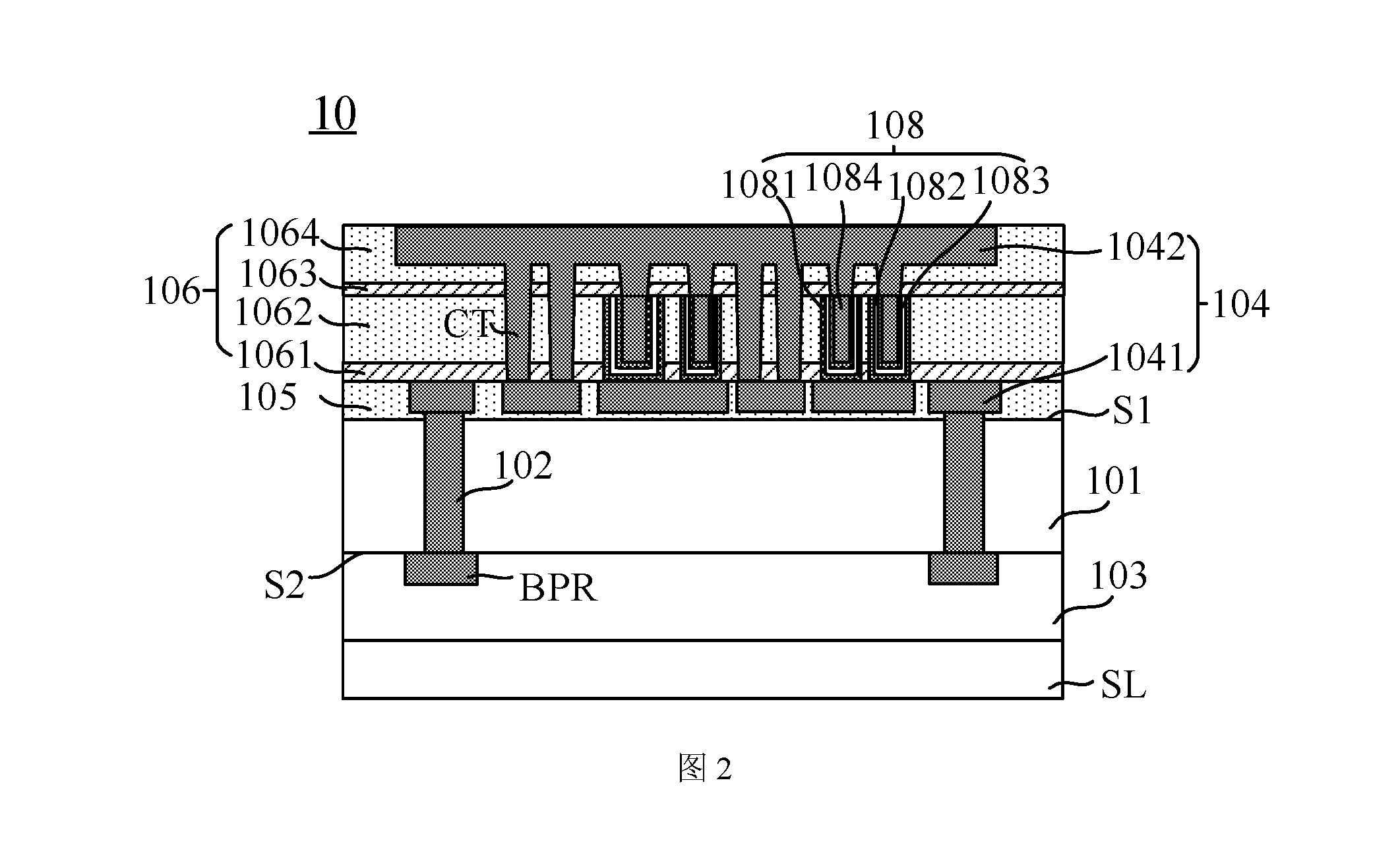

Disclosed are a semiconductor structure and a manufacturing method therefor. The semiconductor structure comprises: a substrate, comprising a device layer, buried power rails, and through-silicon vias, wherein the through-silicon vias are connected to the device layer by means of the buried power rails; a power supply network layer disposed on the substrate, wherein the power supply network layer comprises at least one layer of first power supply arrays and at least one layer of second power supply arrays, and the first power supply arrays are connected to the buried power rails by means of the through-silicon vias; and capacitor structures disposed between the first power supply arrays and the second power supply arrays, and respectively connected to the first power supply arrays and the second power supply arrays by means of lower electrodes and upper electrodes of the capacitor structures.[French]
