WO2025246400 - POWER TOOL
National phase entry is expected:
Publication Number
WO/2025/246400
Publication Date
04.12.2025
International Application No.
PCT/CN2025/072575
International Filing Date
15.01.2025
Title **
[English]
POWER TOOL
[French]
OUTIL ÉLECTRIQUE
[Chinese]
电动工具
Applicants **
JIANGSU DONGCHENG M & E TOOLS CO., LTD.
Inventors
TONG, Tianzeng
Priority Data
202410698434.7
31.05.2024
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1576 | |
| EPO | Filing, Examination, Granting | 11558 | |
| Japan | Filing, Examination, Granting | 1998 | |
| South Korea | Filing, Examination, Granting | 1804 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
21,676
Contact Us
Abstract[English]

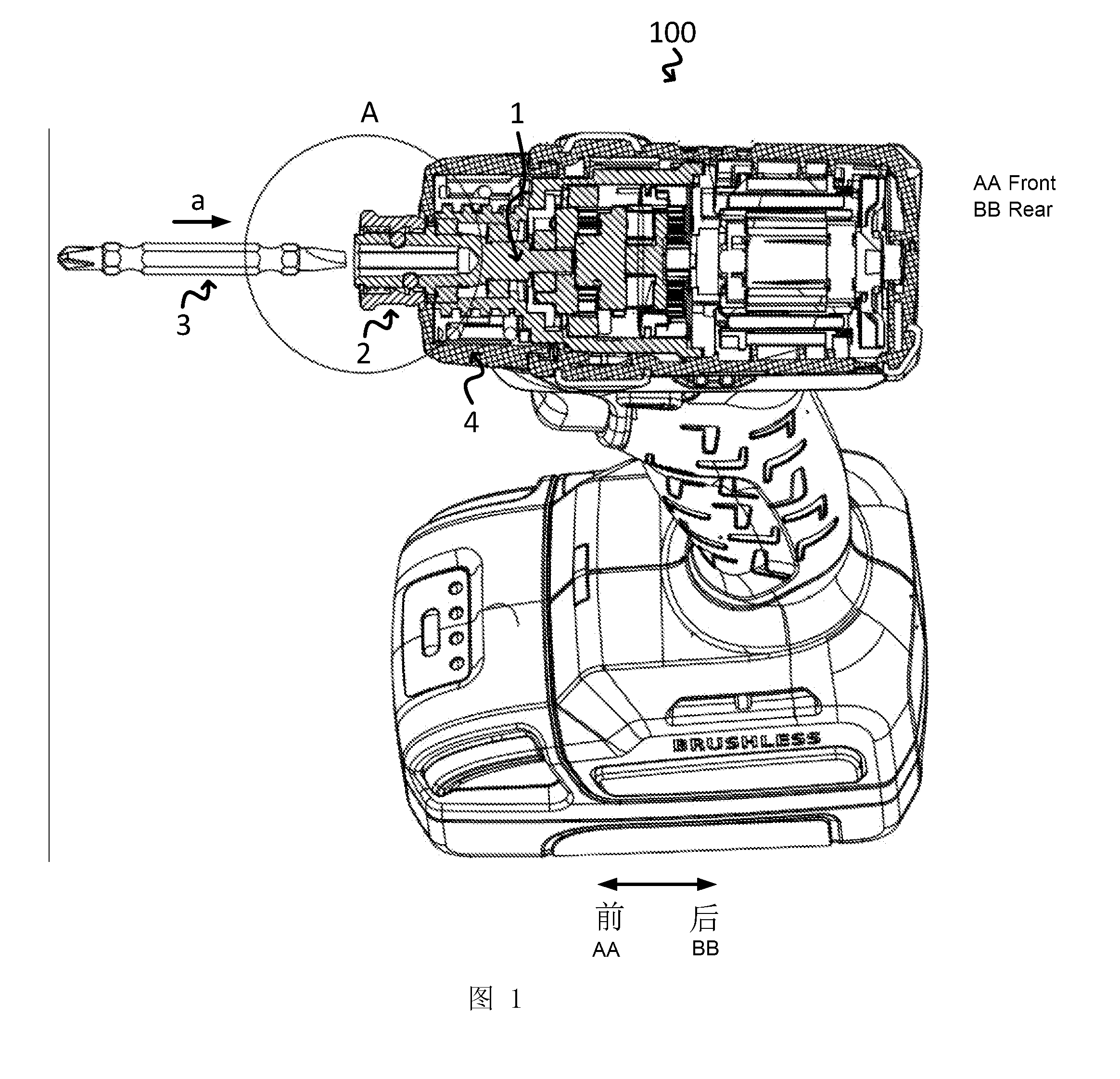

A power tool, comprising: an output shaft (1), which comprises a first through hole (11), a second through hole (12), and a mounting hole (13), the first through hole (11) and the second through hole (12) being arranged in an offset manner in the axial direction of the output shaft (1), and said through holes being respectively located on two sides in the radial direction of the output shaft (1); and a quick mounting assembly (2), which comprises a locking sleeve (21), a first locking member (22), a second locking member (23), and an elastic restoration member (24), the locking sleeve (21) being sleeved on the output shaft (1) and being provided with a guide inclined surface (211) and an abutting rib (212). When a tool head (3) is inserted into the mounting hole (13), the tool head (3) presses the first locking member (22) outward in the radial direction, and the first locking member (22) presses the guide inclined surface (211) outward in the radial direction and pushes the locking sleeve (21) to move in the axial direction, such that the tool head (3) can be inserted into a mounting position. According to the power tool, by improving the structure of the locking sleeve and improving the distribution positions of the first locking member and the second locking member on the output shaft, when the tool head is mounted or removed, the first locking member moving outward in the radial direction applies an axial pushing force to the guide inclined surface so as to push the locking sleeve to move in the axial direction, thus not requiring the locking sleeve to be manually pulled, achieving single-hand rapid mounting and removal, and attaining a simple structure.[French]
Outil électrique, comprenant : un arbre de sortie (1), qui comprend un premier trou traversant (11), un second trou traversant (12), et un trou de montage (13), le premier trou traversant (11) et le second trou traversant (12) étant agencés de manière décalée dans le sens axial de l'arbre de sortie (1), lesdits trous traversants étant situés respectivement sur deux côtés dans le sens radial de l'arbre de sortie (1) ; et un ensemble de montage rapide (2), qui comprend un manchon de verrouillage (21), un premier élément de verrouillage (22), un second élément de verrouillage (23), et un élément de restauration élastique (24), le manchon de verrouillage (21) étant emmanché sur l'arbre de sortie (1) et étant pourvu d'une surface inclinée de guidage (211) et d'une nervure de butée (212). Lorsqu'une tête d'outil (3) est insérée dans le trou de montage (13), la tête d'outil (3) presse le premier élément de verrouillage (22) vers l'extérieur dans le sens radial, et le premier élément de verrouillage (22) presse la surface inclinée de guidage (211) vers l'extérieur dans le sens radial et pousse le manchon de verrouillage (21) à se déplacer dans le sens axial, de sorte que la tête d'outil (3) peut être insérée dans une position de montage. Selon l'outil électrique, en améliorant la structure du manchon de verrouillage et en améliorant les positions de distribution du premier élément de verrouillage et du second élément de verrouillage sur l'arbre de sortie, lorsque la tête d'outil est montée ou retirée, le premier élément de verrouillage se déplaçant vers l'extérieur dans le sens radial applique une force de poussée axiale à la surface inclinée de guidage de façon à pousser le manchon de verrouillage à se déplacer dans le sens axial, ce qui ne nécessite pas de traction manuelle du manchon de verrouillage, permettant ainsi d'assurer un montage et un retrait rapides à une main et de bénéficier d'une structure simple.[Chinese]
一种电动工具,包括:输出轴(1),其包括第一通孔(11)、第二通孔(12)和安装孔(13);第一通孔(11)和第二通孔(12)在输出轴(1)的轴向上错位设置,且两者分别位于输出轴(1)的径向两侧;快装组件(2),其包括锁紧套(21)、第一锁紧件(22)、第二锁紧件(23)和复位弹性件(24),锁紧套(21)套设于输出轴(1)且设有引导斜面(211)和抵压肋(212),当工具头(3)插入安装孔(13)内时,工具头(3)径向向外挤压第一锁紧件(22),第一锁紧件(22)径向向外挤压引导斜面(211)而推动锁紧套(21)沿轴向发生移动,以使得工具头(3)能够插入至安装位置。该电动工具,通过改进锁紧套的结构,及改进第一锁紧件和第二锁紧件在输出轴上的分布位置,在装夹或拆卸工具头时,径向向外移动的第一锁紧件对引导斜面施加轴向推动力,以推动锁紧套沿轴向发生移动,无需手动拉动锁紧套,实现单手快速装卸,且结构简单。
