WO2026045081 - ELECTRIC TOOL
National phase entry is expected:
Publication Number
WO/2026/045081
Publication Date
05.03.2026
International Application No.
PCT/CN2025/072464
International Filing Date
15.01.2025
Title **
[English]
ELECTRIC TOOL
[French]
OUTIL ÉLECTRIQUE
[Chinese]
电动工具
Applicants **
JIANGSU DONGCHENG M & E TOOLS CO., LTD.
Inventors
LU, Saihua
Priority Data
202411212504.X
30.08.2024
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1577 | |
| EPO | Filing, Examination, Granting | 11551 | |
| Japan | Filing, Examination, Granting | 2000 | |
| South Korea | Filing, Examination, Granting | 1802 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
21,670
Contact Us
Abstract[English]

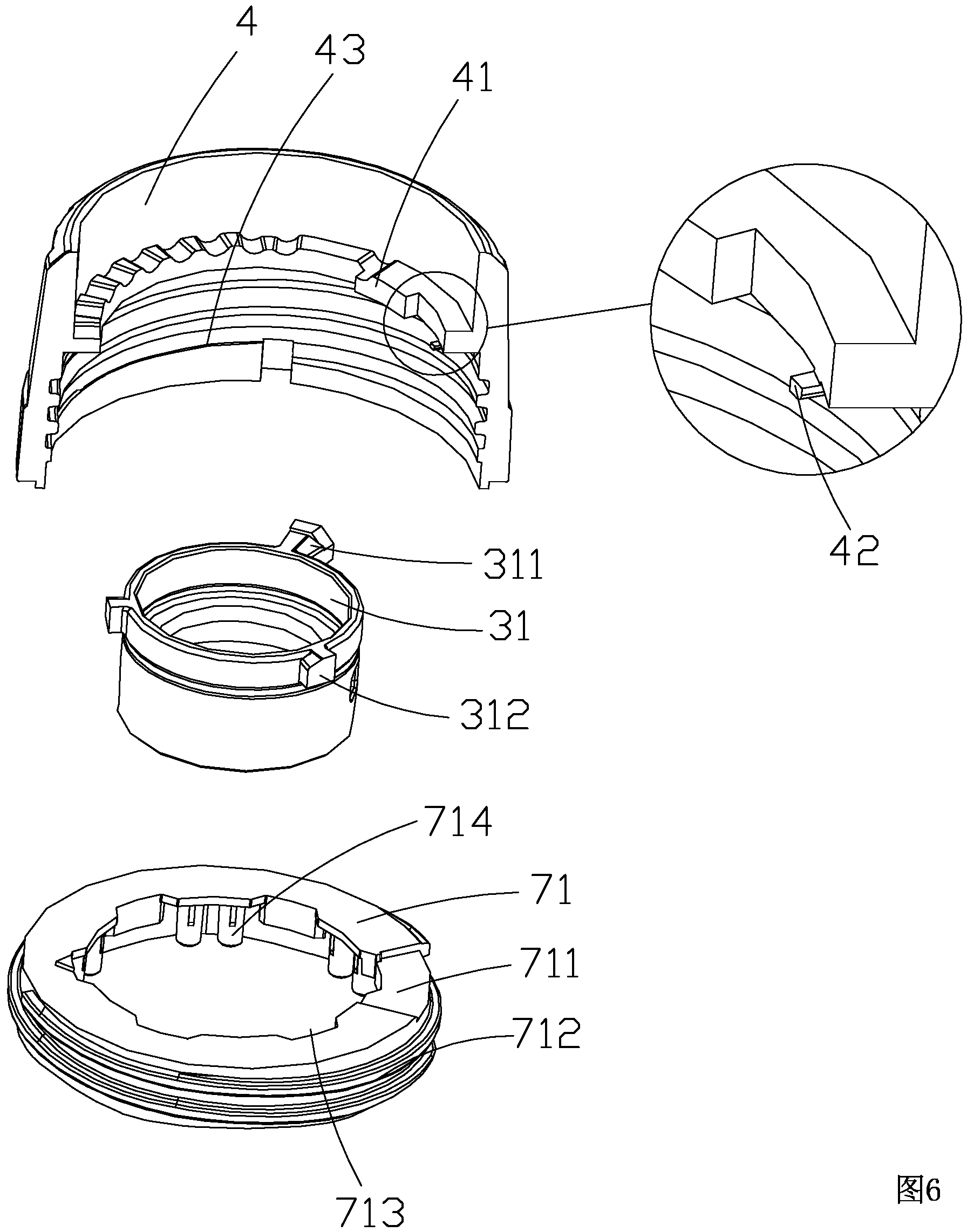

An electric tool (100), comprising an adjustment sleeve (4), wherein the adjustment sleeve (4) has a first arm of force (41), by means of which a transmission arm (311) is driven to rotate and a mode switching member (31) is moved from a first position to a second position; the adjustment sleeve (4) further has a second arm of force (42); when the mode switching member (31) is maintained at the first position, the transmission arm (311) and the second arm of force (42) are misaligned in an axial direction, such that when the adjustment sleeve (4) rotates, the second arm of force (42) cannot come into contact with the transmission arm (311); and when the mode switching member (31) is maintained at the second position, the transmission arm (311) moves to axially overlap with the second arm of force (42), such that when the adjustment sleeve (4) is rotated in a direction opposite a first direction, the second arm of force (42) drives the mode switching member (31) to rotate, thereby preventing a torsion spring (34) from not being able to get the mode switching member (31) of the electric tool (100) reset due to excessive circumferential resistance, and thus ensuring that the electric tool (100) can be smoothly switched from an impact gear back to a drilling gear.[French]
