WO2026091238 - BIONIC EYEBALL OPTICAL MODULE, CAMERA FOR SIMULATING HUMAN EYE, AND TEST APPARATUS
National phase entry is expected:
Publication Number
WO/2026/091238
Publication Date
07.05.2026
International Application No.
PCT/CN2024/137769
International Filing Date
09.12.2024
Title **
[English]
BIONIC EYEBALL OPTICAL MODULE, CAMERA FOR SIMULATING HUMAN EYE, AND TEST APPARATUS
[French]
MODULE OPTIQUE DE GLOBE OCULAIRE BIONIQUE, CAMÉRA POUR SIMULER UN ŒIL HUMAIN, ET APPAREIL DE TEST
[Chinese]
仿生眼球光学模组、模拟人眼的摄像头及测试设备
Applicants **
GOERTEK TECHNOLOGY CO., LTD
Inventors
YANG, Liu
GUO, Weihao
WANG, Yang
ZHANG, Shaoqian
Priority Data
202411545909.5
31.10.2024
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1576 | |
| EPO | Filing, Examination, Granting | 11576 | |
| Japan | Filing, Examination, Granting | 2001 | |
| South Korea | Filing, Examination, Granting | 1805 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
21,698
Contact Us
Abstract[English]

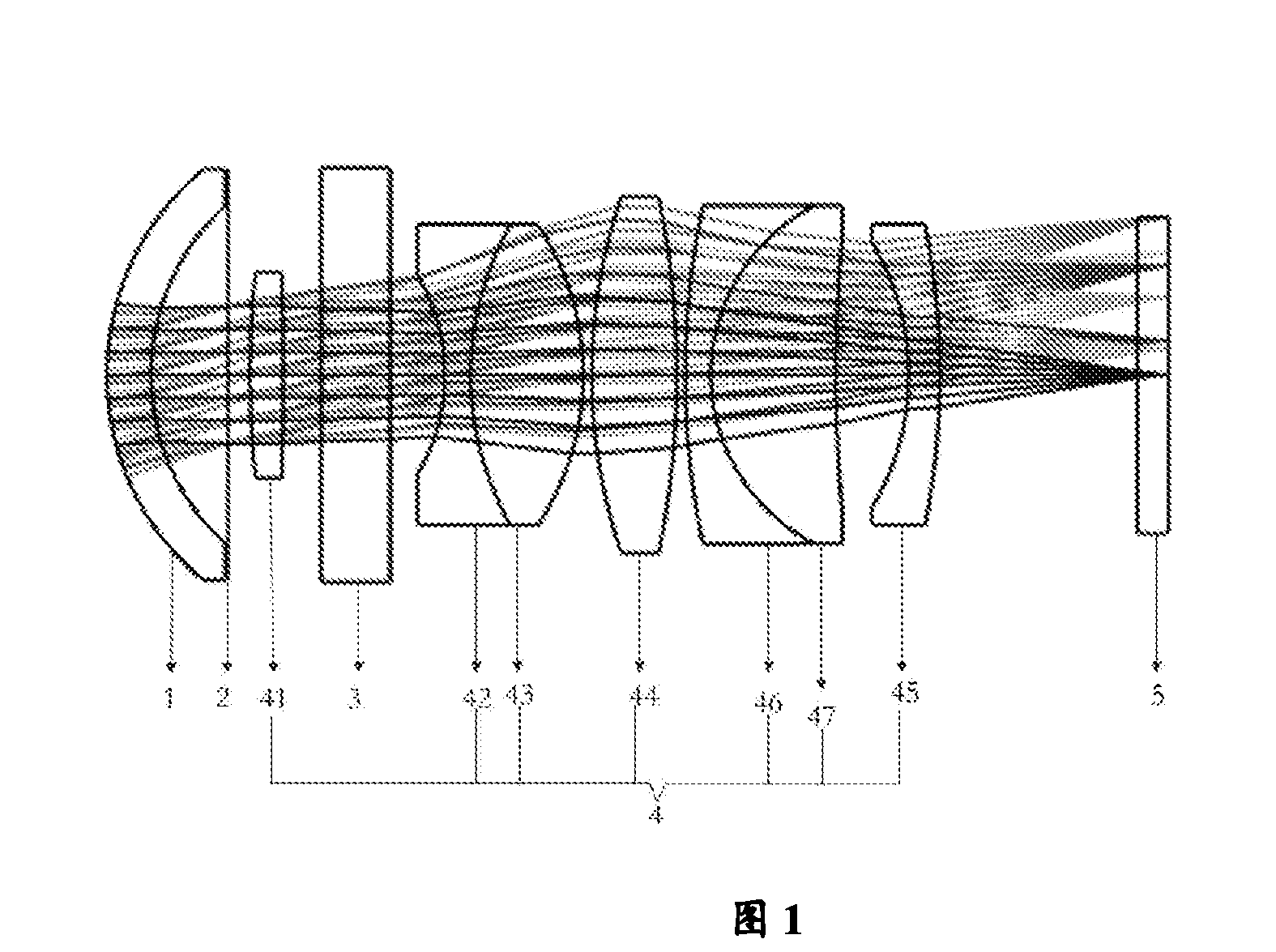

A bionic eyeball optical module, a camera for simulating a human eye, and a test apparatus. The bionic eyeball optical module comprises: a corneal lens (1), a dimming film (2) and an imaging lens group (4), which are arranged in sequence along an incident optical axis, wherein the distance between the dimming film (2) and a front surface of the corneal lens (1) ranges from 3 mm to 5 mm, and a light-transmitting area of the dimming film (2) can be adjusted; and the focal power of the corneal lens (1) is negative, and the overall focal power of the imaging lens group (4) is positive. By means of the combination of the corneal lens (1), the dimming film (2) and the imaging lens group (4), the optical module can simulate the imaging process of a human eye, thereby achieving an imaging effect similar to that of the human eye.[French]
