WO2025098439 - PHOTOVOLTAIC DEVICE
National phase entry is expected:
Publication Number
WO/2025/098439
Publication Date
15.05.2025
International Application No.
PCT/CN2024/130517
International Filing Date
07.11.2024
Title **
[English]
PHOTOVOLTAIC DEVICE
[French]
DISPOSITIF PHOTOVOLTAÏQUE
[Chinese]
一种光伏装置
Applicants **
SHANGHAI XINGYE MATERIALS TECHNOLOGY CO., LTD.
Inventors
GAO, Feng
Priority Data
202311484715.4
09.11.2023
CN
202421348046.8
13.06.2024
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2171 | |
| EPO | Filing, Examination, Granting | 17076 | |
| Japan | Filing, Examination, Granting | 2464 | |
| South Korea | Filing, Examination, Granting | 2835 | |
| USA | Filing, Examination, Granting | 5740 |
Total:
30,286
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

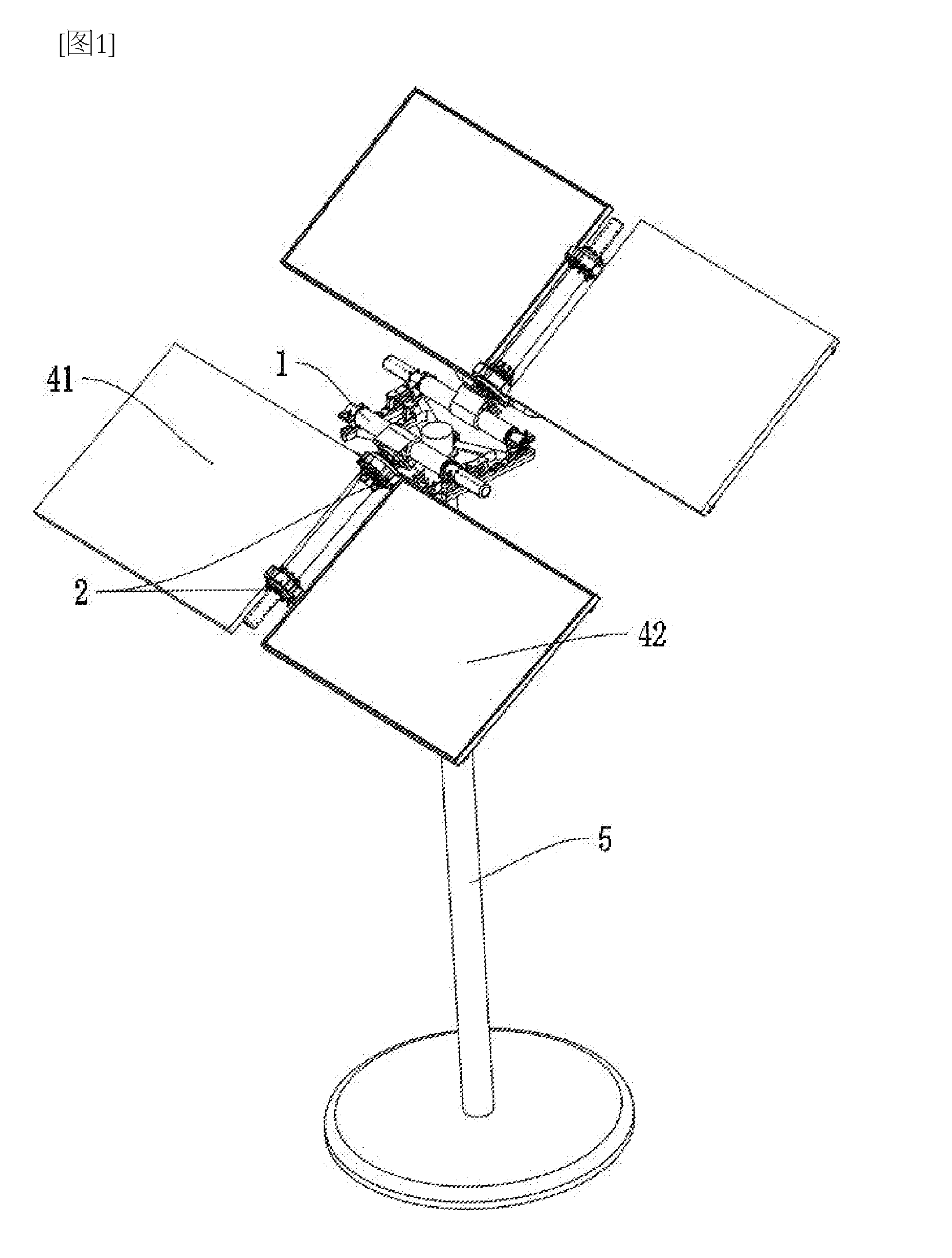

The present invention relates to a photovoltaic device, comprising a first photovoltaic panel, a second photovoltaic panel, and a transmission structure. The transmission structure comprises a transmission assembly and a clutch component. The transmission assembly comprises an output end, a first mounting part is provided at the output end, and the first photovoltaic panel is fixedly connected to the first mounting part. The clutch component is connected to the output end and has an engaged state in which the clutch component is in transmitting connection with the output end and a disengaged state in which the clutch component can rotate relative to the output end, a second mounting part is provided on the clutch component, and the second photovoltaic panel is fixedly connected to the second mounting part. In the engaged state, the transmission assembly can drive the first photovoltaic panel and the second photovoltaic panel to rotate synchronously; in the disengaged state, the transmission assembly can drive the first photovoltaic panel to rotate relative to the second photovoltaic panel.[French]
La présente invention concerne un dispositif photovoltaïque, comprenant un premier panneau photovoltaïque, un second panneau photovoltaïque et une structure de transmission. La structure de transmission comprend un ensemble de transmission et un élément d'embrayage. L'ensemble de transmission comprend une extrémité de sortie, une première partie de montage est disposée au niveau de l'extrémité de sortie, et le premier panneau photovoltaïque est relié à demeure à la première partie de montage. L'élément d'embrayage est relié à l'extrémité de sortie et présente un état embrayé dans lequel l'élément d'embrayage est en liaison de transmission avec l'extrémité de sortie, et un état débrayé dans lequel l'élément d'embrayage peut tourner par rapport à l'extrémité de sortie, une seconde partie de montage est disposée sur l'élément d'embrayage, et le second panneau photovoltaïque est relié à demeure à la seconde partie de montage. Dans l'état embrayé, l'ensemble de transmission peut entraîner le premier panneau photovoltaïque et le second panneau photovoltaïque en rotation de manière synchrone ; dans l'état débrayé, l'ensemble de transmission peut entraîner le premier panneau photovoltaïque en rotation par rapport au second panneau photovoltaïque.[Chinese]
本发明关于一种光伏装置，包括第一光伏板、第二光伏板和传动结构。传动结构包括传动组件和离合件。传动组件包括输出端，输出端上设有第一安装部，第一光伏板固定连接于第一安装部。离合件与输出端相连接，且与输出端间具有可传动连接的闭合状态和可相对转动的分离状态，离合件上设有第二安装部，第二光伏板固定连接于第二安装部。在闭合状态下，传动组件可带动第一光伏板和第二光伏板同步转动；在分离状态下，传动组件可带动第一光伏板相对于第二光伏板转动。
