WO2025251239 - BONE CONDUCTION MEMS CHIP AND MANUFACTURING METHOD THEREFOR, AND BONE CONDUCTION PACKAGING STRUCTURE HAVING BONE CONDUCTION MEMS CHIP
National phase entry is expected:
Publication Number
WO/2025/251239
Publication Date
11.12.2025
International Application No.
PCT/CN2024/097643
International Filing Date
06.06.2024
Title **
[English]
BONE CONDUCTION MEMS CHIP AND MANUFACTURING METHOD THEREFOR, AND BONE CONDUCTION PACKAGING STRUCTURE HAVING BONE CONDUCTION MEMS CHIP
[French]
PUCE MEMS À CONDUCTION OSSEUSE ET SON PROCÉDÉ DE FABRICATION, ET STRUCTURE D'ENCAPSULATION DE CONDUCTION OSSEUSE AYANT UNE PUCE MEMS À CONDUCTION OSSEUSE
[Chinese]
骨传导MEMS芯片及其制造方法、具有该骨传导MEMS芯片的骨传导封装结构
Applicants **
AAC ACOUSTIC TECHNOLOGIES (SHENZHEN) CO., LTD.
Inventors
WANG, Kaijie
LI, Bo
ZHANG, Rui
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1503 | |
| EPO | Filing, Examination, Granting | 11576 | |
| Japan | Filing, Examination, Granting | 2001 | |
| South Korea | Filing, Examination, Granting | 1713 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
21,533
Contact Us
Abstract[English]

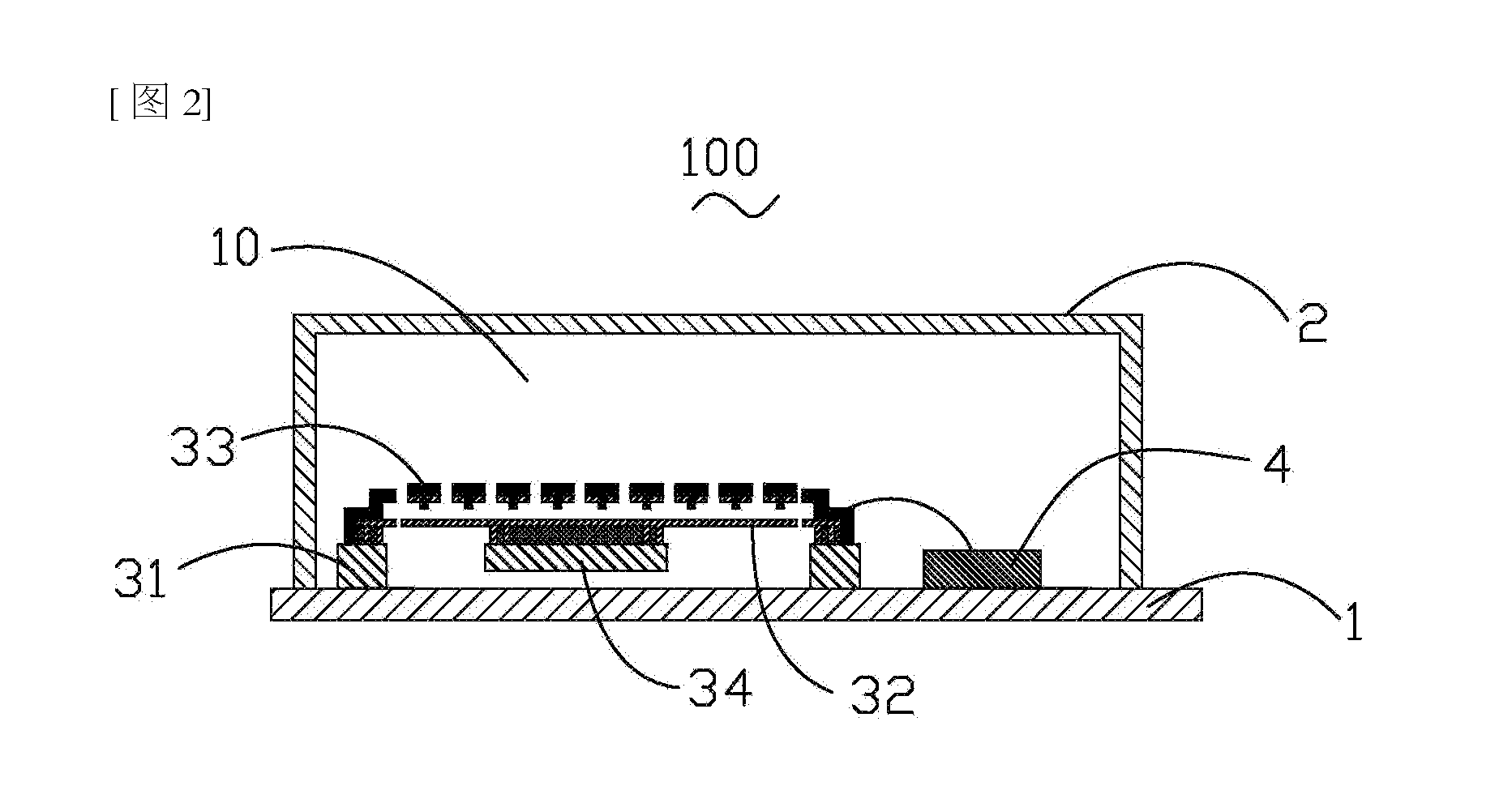

The present invention provides a bone conduction MEMS chip and a manufacturing method therefor, and a bone conduction packaging structure having the bone conduction MEMS chip. The bone conduction MEMS chip comprises: a substrate provided with a cavity, a diaphragm supported on the substrate, and a back plate spaced apart from the side of the diaphragm distant from the substrate, wherein a mass block is arranged on the side of the diaphragm distant from the back plate. The mass block in the bone conduction MEMS chip of the present invention is directly formed on the diaphragm, and the bone conduction packaging structure avoids additionally providing a vibration sheet and a mass block, thereby reducing costs, achieving simple packaging, and allowing the structure to be smaller.[French]
