WO2025000218 - CABINET X-RAY SYSTEMS WITH TWO-DIMENSIONAL COORDINATE SYSTEM ON SPECIMEN TRAY OR SPECIMEN BAG
National phase entry is expected:
Publication Number
WO/2025/000218
Publication Date
02.01.2025
International Application No.
PCT/CN2023/102627
International Filing Date
27.06.2023
Title **
[English]
CABINET X-RAY SYSTEMS WITH TWO-DIMENSIONAL COORDINATE SYSTEM ON SPECIMEN TRAY OR SPECIMEN BAG
[French]
SYSTÈMES D'ARMOIRE À RAYONS X COMPORTANT UN SYSTÈME DE COORDONNÉES BIDIMENSIONNEL SUR UN PLATEAU À ÉCHANTILLONS OU UN SAC À ÉCHANTILLONS
Applicants **
SHENZHEN XPECTVISION TECHNOLOGY CO., LTD.
B507, Block A And B, Nanshan Medical Device Industrial Park, Nanhai Avenue 1019, Nanshan District
Shenzhen, Guangdong 518000, CN
Inventors
LIU, Yanqing
B507, Block A And B, Nanshan Medical Device Industrial Park, Nanhai Avenue 1019, Nanshan District
Shenzhen, Guangdong 518000, CN
ZHANG, Shuai
B507, Block A And B, Nanshan Medical Device Industrial Park, Nanhai Avenue 1019, Nanshan District
Shenzhen, Guangdong 518000, CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
CNIPA
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1223 | |
| EPO | Filing, Examination | 8888 | |
| Japan | Filing | 597 | |
| South Korea | Filing | 482 | |
| USA | Filing, Examination | 3110 |
Total: 14300 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

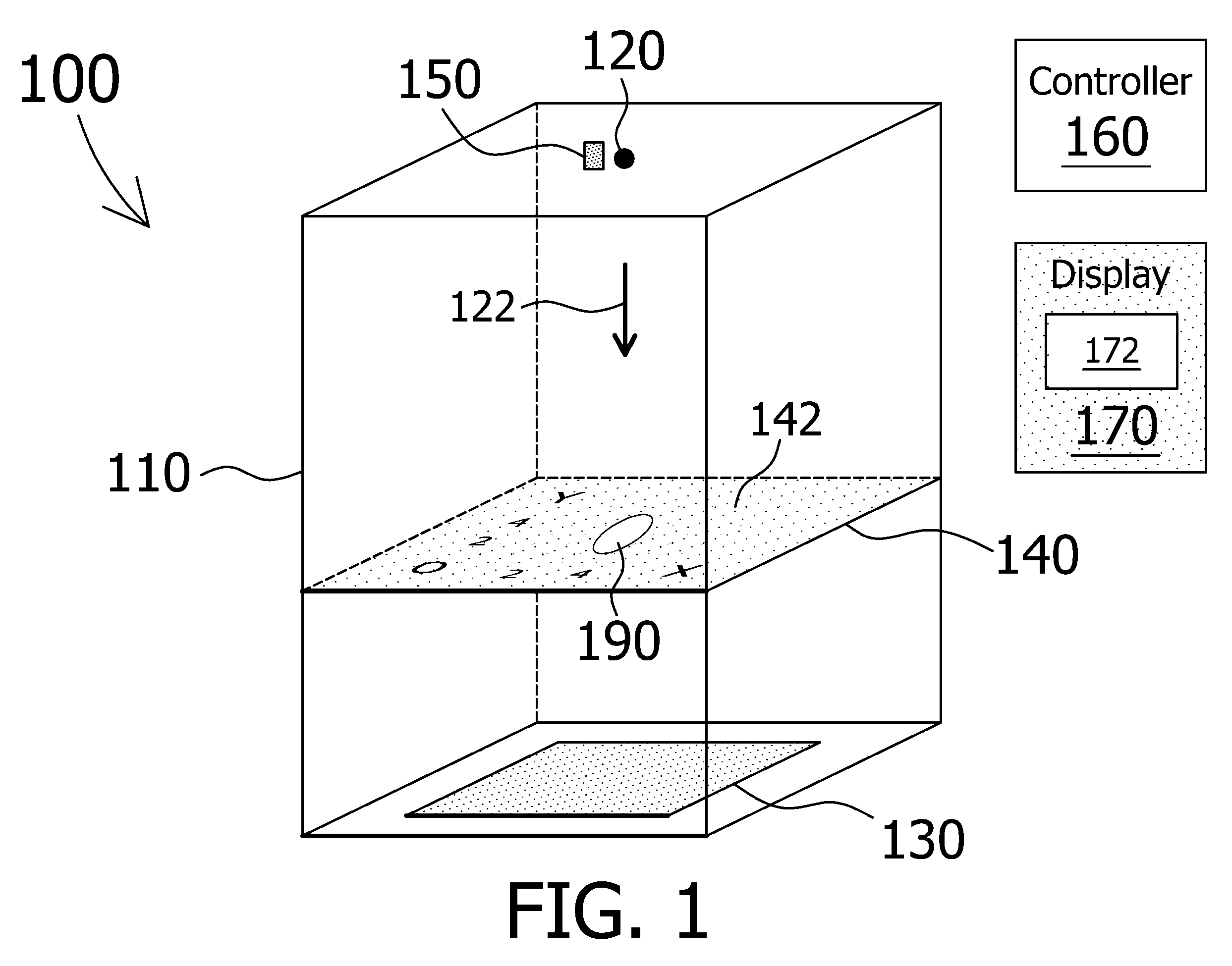

Disclosed herein is a method, comprising: capturing with an X-ray subsystem of a cabinet X-ray system(100) an X-ray image of a specimen(190) held by a holder inside a chamber(110) of the cabinet X-ray system(100); displaying the X-ray image on a screen(172) of a display(170); and for i=1, …, M, determining a coordinate (i) of a point (i) of interest in the X-ray image in a same coordinate image on the screen(172) of a same 2-dimensional coordinate system which is fixed to the holder, with M being a positive integer.[French]
La présente invention divulgue un procédé qui consiste à : capturer, à l'aide d'un sous-système à rayons X d'un système d'armoire à rayons X (100), une image à rayons X d'un échantillon (190) maintenu par un support situé dans une chambre (110) du système d'armoire à rayons X (100) ; afficher l'image à rayons X sur un écran (172) d'un dispositif d'affichage (170) ; et pour i=1, ..., M, déterminer une coordonnée (i) d'un point (i) d'intérêt dans l'image à rayons X dans une même image de coordonnées sur l'écran (172) d'un même système de coordonnées bidimensionnel qui est fixé au support, M étant un entier positif.
