WO2023066037 - SYSTEMS AND METHODS FOR MONITORING GENERALIZED OPTICAL SIGNAL-TO-NOISE RATIO
National phase entry is expected:
Publication Number
WO/2023/066037
Publication Date
27.04.2023
International Application No.
PCT/CN2022/123933
International Filing Date
09.10.2022
Title **
[English]
SYSTEMS AND METHODS FOR MONITORING GENERALIZED OPTICAL SIGNAL-TO-NOISE RATIO
[French]
SYSTÈMES ET PROCÉDÉS DE SURVEILLANCE DU RAPPORT SIGNAL SUR BRUIT OPTIQUE GÉNÉRALISÉ
Applicants **
HUAWEI TECHNOLOGIES CO., LTD.
Inventors
JIANG, Zhiping
HAHN, Choloong
Priority Data
17/503,712
18.10.2021
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2060 | |
| EPO | Filing, Examination, Granting | 15988 | |
| Japan | Filing, Examination, Granting | 2400 | |
| South Korea | Filing, Examination, Granting | 2662 | |
| USA | Filing, Examination, Granting | 5340 |
Total:
28,450
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

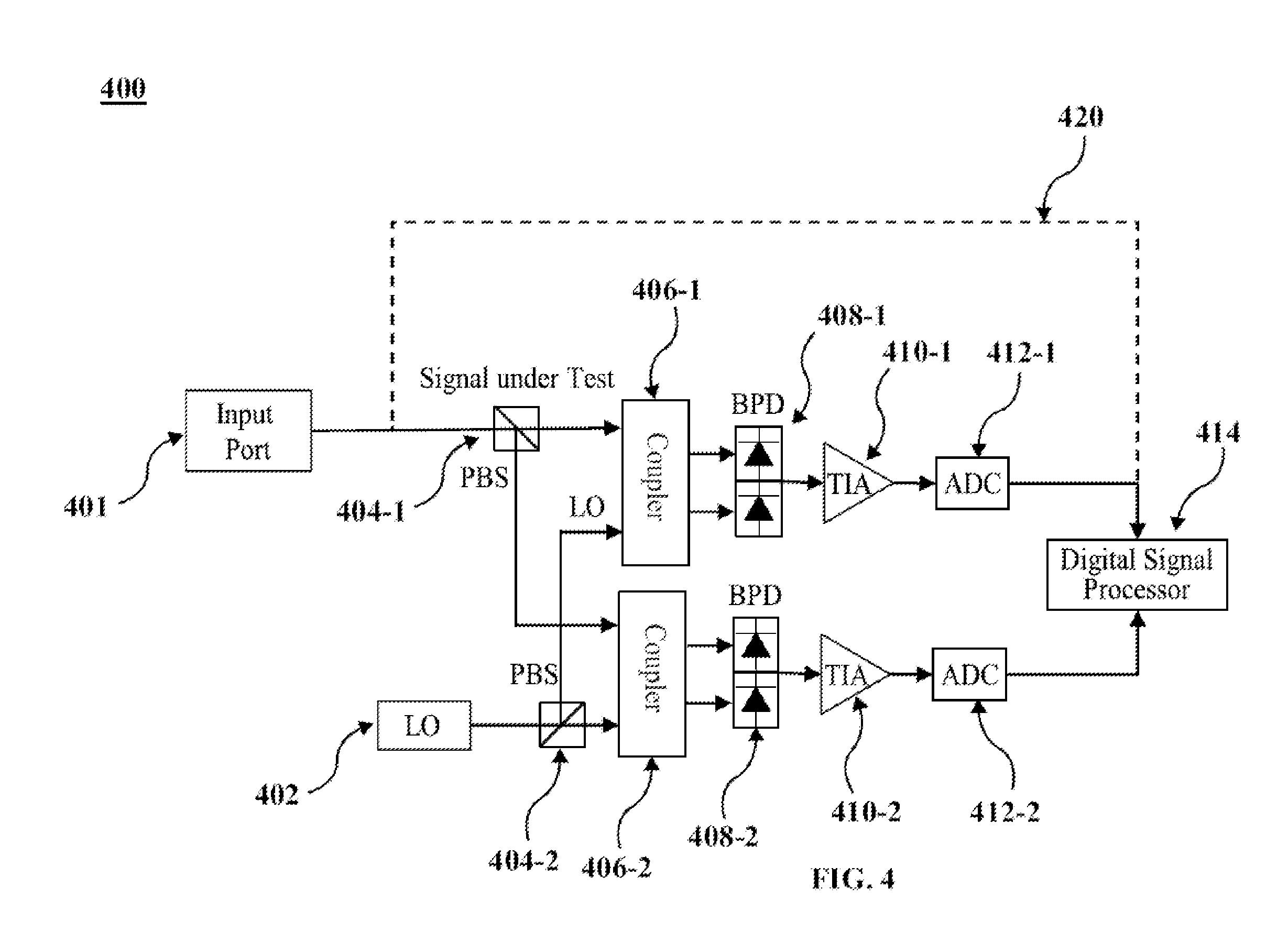

The disclosed systems and methods for monitoring, by a coherent optical monitor (OPM), generalized optical signal-to-noise ratio (gOSNR) of an optical channel, the method comprising: i) receiving, by an input port of the coherent OPM, a first signal and a second signal, wherein: the first signal and the second signal include same data, the first signal is an optical signal received from the optical channel, and the first signal is affected by a noise; ii) processing, by a digital signal processor (DSP) of the coherent OPM, the first signal and the second signal and extract the data from the first signal and the second signal; iii) computing, by the DSP, a first correlation between the data from the first signal and the data from the second digital signal; and iv) computing, by the DSP, a first gOSNR based on the first correlation.[French]
Les systèmes et les procédés de l'invention permettent de surveiller, par un dispositif de surveillance optique cohérent (OPM), le rapport signal sur bruit optique généralisé (gOSNR) d'un canal optique, le procédé comprenant les étapes suivantes : i) réception, par un port d'entrée de l'OPM cohérent, d'un premier signal et d'un second signal, le premier signal et le second signal comprenant les mêmes données, le premier signal étant un signal optique reçu en provenance du canal optique, et le premier signal étant affecté par un bruit ; ii) traitement, par un processeur de signal numérique (DSP) de l'OPM cohérent, du premier signal et du second signal et extraction des données du premier signal et du second signal ; iii) calcul, par le DSP, d'une première corrélation entre les données provenant du premier signal et les données provenant du second signal numérique ; et iv) calcul, par le DSP, d'un premier gOSNR sur la base de la première corrélation.
