WO2023159892 - ADAPTER TRANSFERRING SSD INTO CFEXPRESS TYPE B CARD
National phase entry is expected:
Publication Number
WO/2023/159892
Publication Date
31.08.2023
International Application No.
PCT/CN2022/113792
International Filing Date
20.08.2022
Title **
[English]
ADAPTER TRANSFERRING SSD INTO CFEXPRESS TYPE B CARD
[French]
ADAPTATEUR DE TRANSFERT DE DSS DANS UNE CARTE CFEXPRESS TYPE B
Applicants **
SHENZHEN KANGRUIYOU MEDICAL DEVICES CO., LTD.
PAN, Huan
2123 Bixing Road, Longgang Avenue, Longgang District
Shenzhen, Guangdong 518000, CN
Inventors
PAN, Huan
2nd Floor
2123 Bixing Road, Longgang Avenue, Longgang District
Shenzhen, Guangdong 518000, CN
Priority Data
202210162346.6
22.02.2022
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
CNIPA
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1046 | |
| EPO | Filing, Examination | 6349 | |
| Japan | Filing | 587 | |
| South Korea | Filing | 574 | |
| USA | Filing, Examination | 5110 |
Total: 13666 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

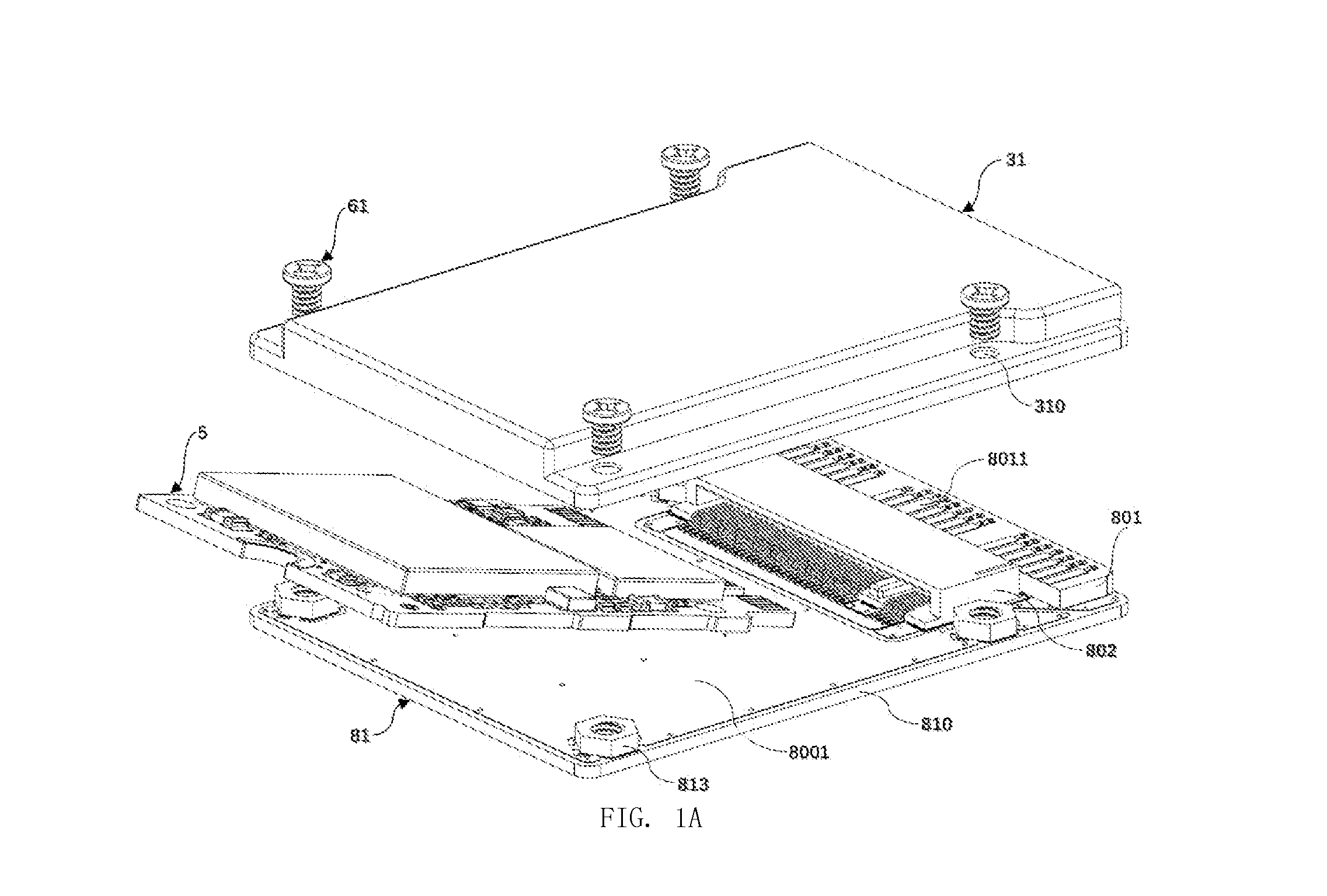

The invention provides an adapter, suitable for transferring a solid state disk (SSD) compliant with M.2 2230 specification into a memory card compatible with CFexpress Type B specification. The adapter comprises at least an adapter metal housing, an adapter circuit body and design/device for installing the adapter housing (at least comprising the adapter metal housing) and the adapter circuit body. The adapter designs provided by the invention are based on stacked and electrical connections of multi circuit boards, which hugely simplifies the requirements of CFexpress Type B standard on the design of the housing, so that the external contact interface requirements of CFexpress Type B are met with low cost. The cost of transferring the M.2 2230SSD into a memory card compatible with CFexpress Type B specification and various stress specifications is reduced.[French]
L'invention concerne un adaptateur approprié pour transférer un disque statique à semiconducteurs (DSS) conforme à la spécification M.2 2230 dans une carte mémoire compatible avec une spécification CFexpress Type B. L'adaptateur comprend au moins un boîtier métallique d'adaptateur, un corps de circuit d'adaptateur et une conception/un dispositif pour installer le boîtier d'adaptateur (comprenant au moins le boîtier métallique d'adaptateur) et le corps de circuit d'adaptateur. Les conceptions d'adaptateur de l'invention sont basées sur des connexions empilées et électriques de cartes à circuits multiples, ce qui permet de simplifier énormément les exigences de la norme CFexpress Type B relatives à la conception du boîtier et de satisfaire aux exigences d'interface de contact externe de CFexpress Type B avec de faibles coûts. Le coût de transfert de DSS M.2 2230 dans une carte mémoire compatible avec une spécification CFexpress Type B et diverses spécifications de contrainte est réduit.
