WO2023184077 - DISPLAY PANEL AND DISPLAY APPARATUS
National phase entry:
Publication Number
WO/2023/184077
Publication Date
05.10.2023
International Application No.
PCT/CN2022/083339
International Filing Date
28.03.2022
Title **
[English]
DISPLAY PANEL AND DISPLAY APPARATUS
[French]
ÉCRAN D'AFFICHAGE ET APPAREIL D'AFFICHAGE
Applicants **
BOE TECHNOLOGY GROUP CO., LTD.
No. 10 Jiuxianqiao Road, Chaoyang District
Beijing 100015, CN
CHENGDU BOE OPTOELECTRONICS TECHNOLOGY CO., LTD.
No. 1188 Hezuo Road (West Zone)
Hi-tech Development Zone
Chengdu, Sichuan 611731, CN
Inventors
ZENG, Yang
No.9 Dize Rd., BDA
Beijing 100176, CN
CHEN, Tianci
No.9 Dize Rd., BDA
Beijing 100176, CN
ZHANG, Shun
No.9 Dize Rd., BDA
Beijing 100176, CN
LUO, Chang
No.9 Dize Rd., BDA
Beijing 100176, CN
ZHANG, Yuanqi
No.9 Dize Rd., BDA
Beijing 100176, CN
ZHANG, Yi
No.9 Dize Rd., BDA
Beijing 100176, CN
KO, Youngyik
No.9 Dize Rd., BDA
Beijing 100176, CN
KANG, Sanghun
No.9 Dize Rd., BDA
Beijing 100176, CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
CNIPA
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1186 | |
| EPO | Filing, Examination | 8027 | |
| Japan | Filing | 590 | |
| South Korea | Filing | 482 | |
| USA | Filing, Examination | 2710 |
Total: 12995 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

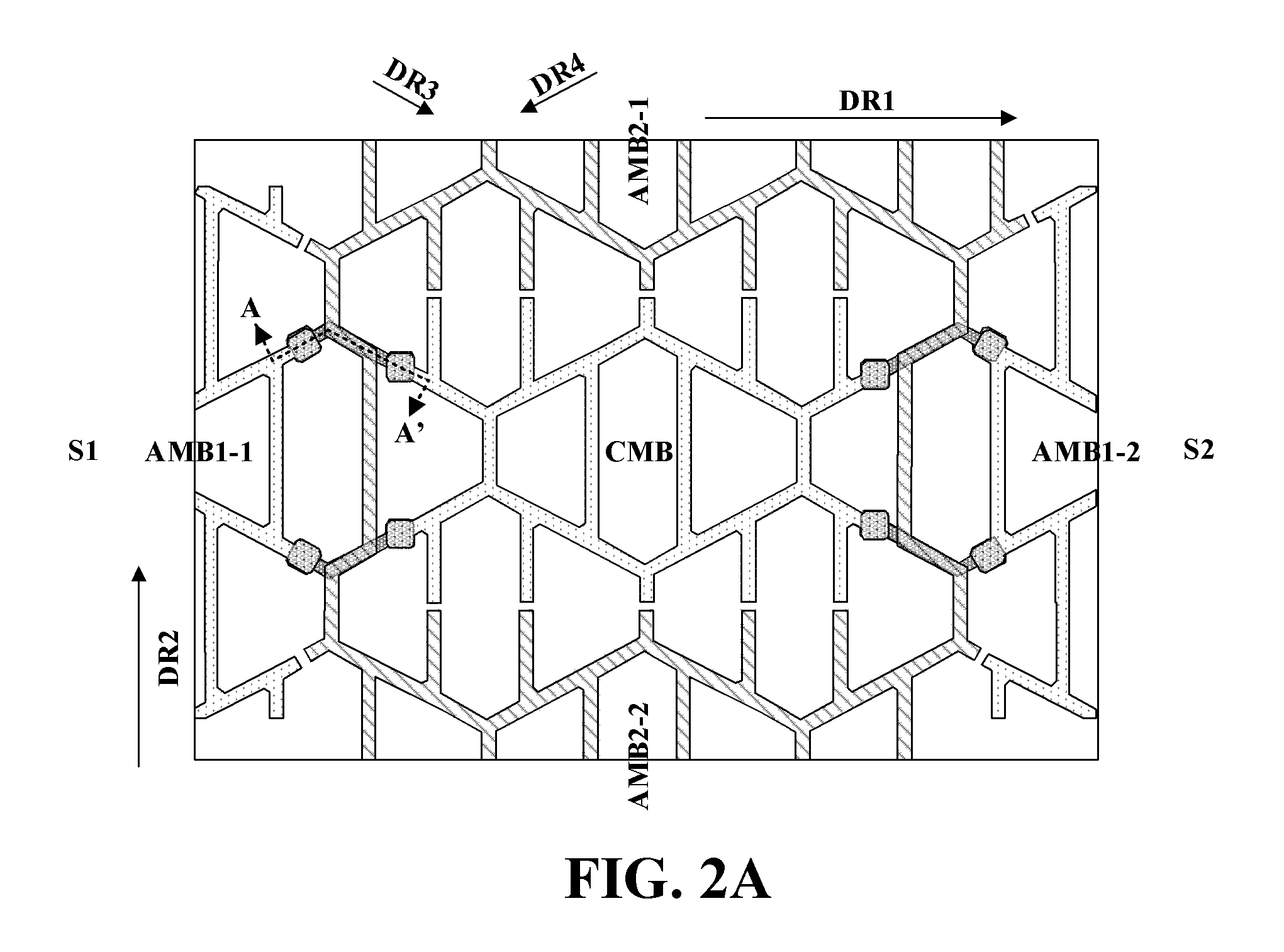

A display panel is provided. The display panel includes a touch control structure. The touch control structure includes a plurality of first mesh electrodes and a plurality of second mesh electrodes. A respective one of the plurality of first mesh electrodes includes a plurality of first mesh blocks consecutively electrically connected along a first direction. A respective one of the plurality of second mesh electrodes includes a plurality of second mesh blocks consecutively electrically connected along a second direction. Two adjacent first mesh blocks of the plurality of first mesh blocks are electrically connected to each other through a respective first conductive bridge. The respective first conductive bridge includes a plurality of first single mesh lines spaced apart from each other, and in a layer different from the plurality of first mesh blocks and the plurality of second mesh blocks.[French]
L'invention concerne un écran d'affichage. L'écran d'affichage comprend une structure de commande tactile. La structure de commande tactile comprend une pluralité de premières électrodes de maillage et une pluralité de secondes électrodes de maillage. Une électrode respective de la pluralité de premières électrodes de maillage comprend une pluralité de premiers blocs de maillage connectés électriquement de manière consécutive le long d'une première direction. Une électrode respective de la pluralité de secondes électrodes de maillage comprend une pluralité de seconds blocs de maillage connectés électriquement consécutivement le long d'une seconde direction. Deux premiers blocs de maillage adjacents de la pluralité de premiers blocs de maillage sont électriquement connectés l'un à l'autre par l'intermédiaire d'un premier pont conducteur respectif. Le premier pont conducteur respectif comprend une pluralité de premières lignes de maillage uniques espacées les unes des autres, et dans une couche différente de la pluralité de premiers blocs de maillage et de la pluralité de seconds blocs de maillage.
