WO2023010239 - ZOOM LENS OPTICAL SYSTEM
National phase entry:
Publication Number
WO/2023/010239
Publication Date
09.02.2023
International Application No.
PCT/CN2021/110020
International Filing Date
02.08.2021
Title **
[English]
ZOOM LENS OPTICAL SYSTEM
[French]
SYSTÈME OPTIQUE DE LENTILLE DE ZOOM
Applicants **
HUAWEI TECHNOLOGIES CO.,LTD.
Huawei Administration Building, Bantian, Longgang District
Shenzhen, Guangdong 518129, CN
Inventors
MIYATANI, Sota
8th Floor, Shinagawa Grand Central Tower, 2-16-4, Konan
Minato-ku, Tokyo 108-0075, JP
TONG, Qing
Huawei Administration Building, Bantian, Longgang District
Shenzhen, Guangdong 518129, CN
ANZAWA, Takuya
8th Floor, Shinagawa Grand Central Tower, 2-16-4, Konan
Minato-ku, Tokyo 108-0075, JP
IZUMI, Ryotaro
8th Floor, Shinagawa Grand Central Tower, 2-16-4, Konan
Minato-ku, Tokyo 108-0075, JP
ATSUTA, Kazuya
8th Floor, Shinagawa Grand Central Tower, 2-16-4, Konan
Minato-ku, Tokyo 108-0075, JP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
CNIPA
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 983 | |
| EPO | Filing, Examination | 6594 | |
| Japan | Filing | 594 | |
| South Korea | Filing | 482 | |
| USA | Filing, Examination | 2710 |
Total: 11363 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

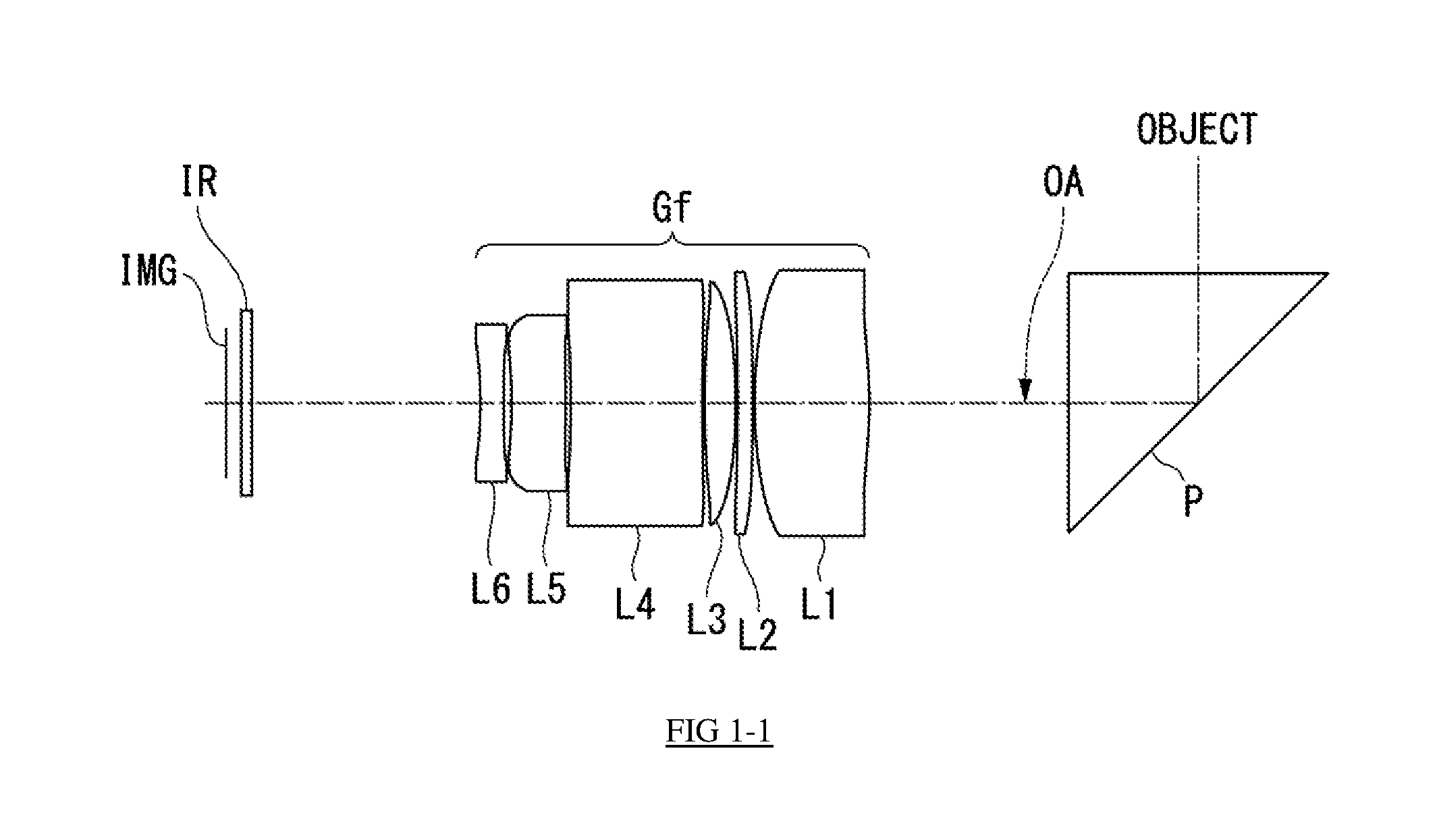

A switching zoom lens comprises, from an object side to an image side along an optical axis (OA), a reflective optical element (P) to bend an optical path from the object side to the image side, a front lens group (Gf) with a positive refractive power, and a rear lens group (Gr) comprising three or more and five or less lens elements (L7-L10). When zooming from a wide angle end to a telephoto end, the rear lens group (Gr) is inserted between the front lens group (Gf) and an imaging surface (IMG), and when zooming from the telephoto end to the wide angle end, the rear lens group (Gr) is moved out of the optical path of the switching zoom lens.[French]
L'invention concerne une lentille de zoom à commutation comprenant, d'un côté objet à un côté image le long d'un axe optique (OA), un élément optique réfléchissant (P) pour courber un trajet optique à partir du côté objet vers le côté image, un groupe de lentilles avant (Gf) ayant une réfringence positive, et un groupe de lentilles arrière (Gr) comprenant trois ou plus et cinq ou moins éléments de lentille (L7-L10). Lors d'un zoom d'une extrémité grand angle à une extrémité téléobjectif, le groupe de lentilles arrière (Gr) est inséré entre le groupe de lentilles avant (Gf) et une surface d'imagerie (IMG), et lors d'un zoom de l'extrémité téléobjectif à l'extrémité grand angle, le groupe de lentilles arrière (Gr) est déplacé hors du trajet optique de la lentille de zoom à commutation.
