WO2023150821 - A BLIND MECHANICAL FASTENING SYSTEM FOR CONNECTING MEMBERS TO ONE ANOTHER
National phase entry:
Publication Number
WO/2023/150821
Publication Date
17.08.2023
International Application No.
PCT/AU2023/050064
International Filing Date
01.02.2023
Title **
[English]
A BLIND MECHANICAL FASTENING SYSTEM FOR CONNECTING MEMBERS TO ONE ANOTHER
[French]
SYSTÈME DE FIXATION MÉCANIQUE AVEUGLE POUR RELIER DES ÉLÉMENTS LES UNS AUX AUTRES
Applicants **
STRANG, Alan
7 Lisbon St
Maroochydore, Queensland 4558, AU
Inventors
STRANG, Alan
7 Lisbon St
Maroochydore, Queensland 4558, AU
Priority Data
2022900272
10.02.2022
AU
2022901146
02.05.2022
AU
2022902391
22.08.2022
AU
2022903075
19.10.2022
AU
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| * | |
International Searching Authority |
IP Australia
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Translation |
|
Recalculate
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing | 1833 | |
| EPO | Filing, Examination | 9390 | |
| Japan | Filing | 587 | |
| South Korea | Filing | 671 | |
| USA | Filing, Examination | 5710 |
Total: 18191 USD
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

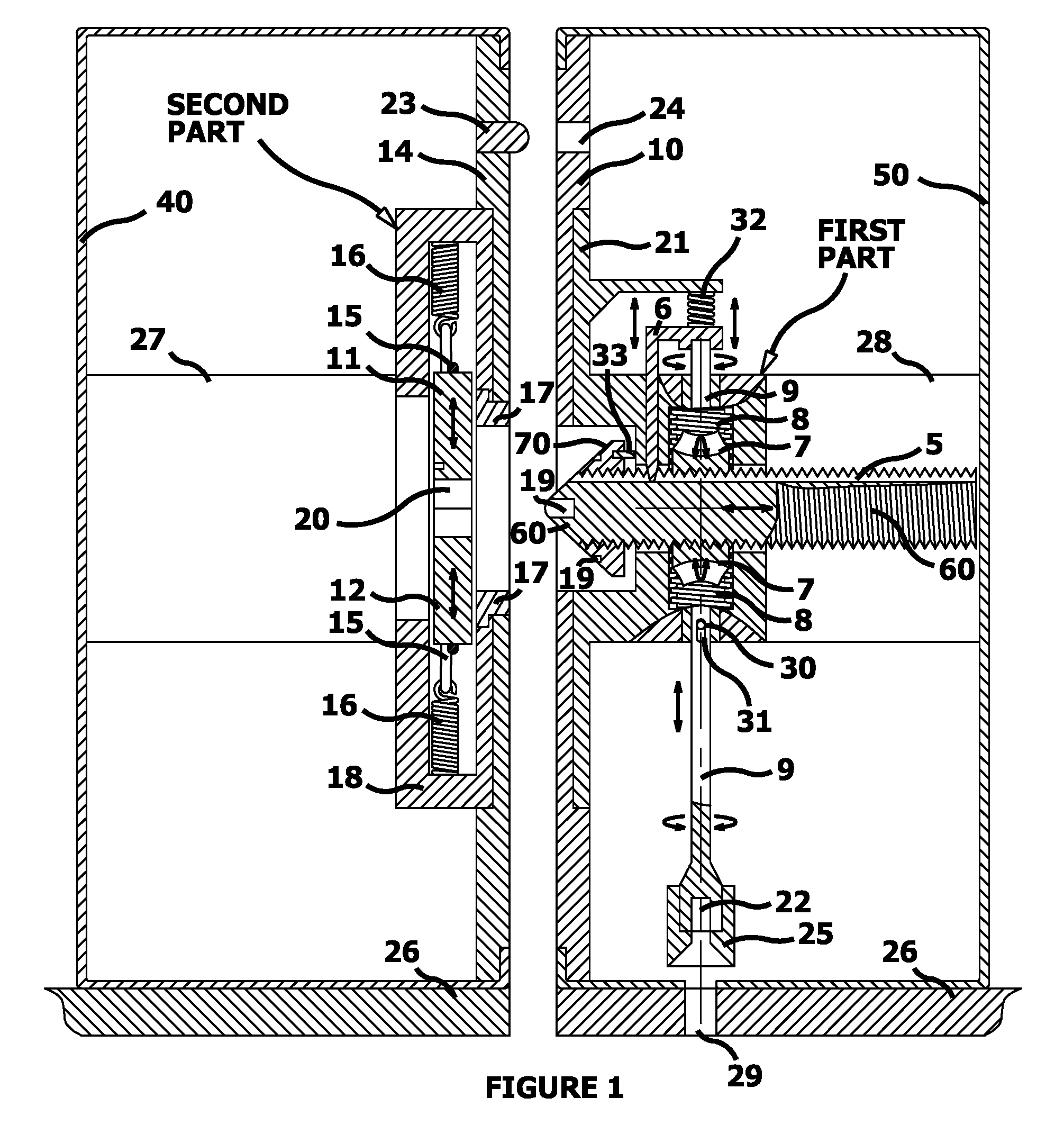

According to the present invention, a blind fastening system for connecting members to one another comprises two parts; a structure containing a conical nut, matched to a threaded rod engaged to a lineal guide and a driven gear meshed to a driving gear having a tooling interface as the first part and; a separate structure containing anchor plates with springs and spring supports to act on and retain the conical nut of the first part. The blind fastening system also has a friction collar, a drive shaft, a retractable mechanism, a funnel tool guide, dowels and aligning & restricting guides.[French]
Selon la présente invention, un système de fixation aveugle destiné à relier des éléments les uns aux autres comprend deux parties ; une structure contenant un écrou conique, associé à une tige filetée en prise avec un guide linéaire et un engrenage mené en prise avec un engrenage menant ayant une interface d'outillage en tant que première partie et ; une structure séparée contenant des plaques d'ancrage dotées de ressorts et de supports de ressort pour agir sur et retenir l'écrou conique de la première partie. Le système de fixation aveugle comporte également un collier de frottement, un arbre d'entraînement, un mécanisme rétractable, un guide d'outil en entonnoir, des goujons et des guides d'alignement et de restriction.
