WO2025152030 - PIXEL CIRCUIT AND IMAGE SENSOR
National phase entry is expected:
Publication Number
WO/2025/152030
Publication Date
24.07.2025
International Application No.
PCT/CN2024/072531
International Filing Date
16.01.2024
Title **
[English]
PIXEL CIRCUIT AND IMAGE SENSOR
[French]
CIRCUIT DE PIXEL ET CAPTEUR D'IMAGE
Applicants **
HUAWEI TECHNOLOGIES CO., LTD.
Inventors
MONOI, Makoto
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1678 | |
| EPO | Filing, Examination, Granting | 12186 | |
| Japan | Filing, Examination, Granting | 1937 | |
| South Korea | Filing, Examination, Granting | 1578 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
22,119
Contact Us
Abstract[English]

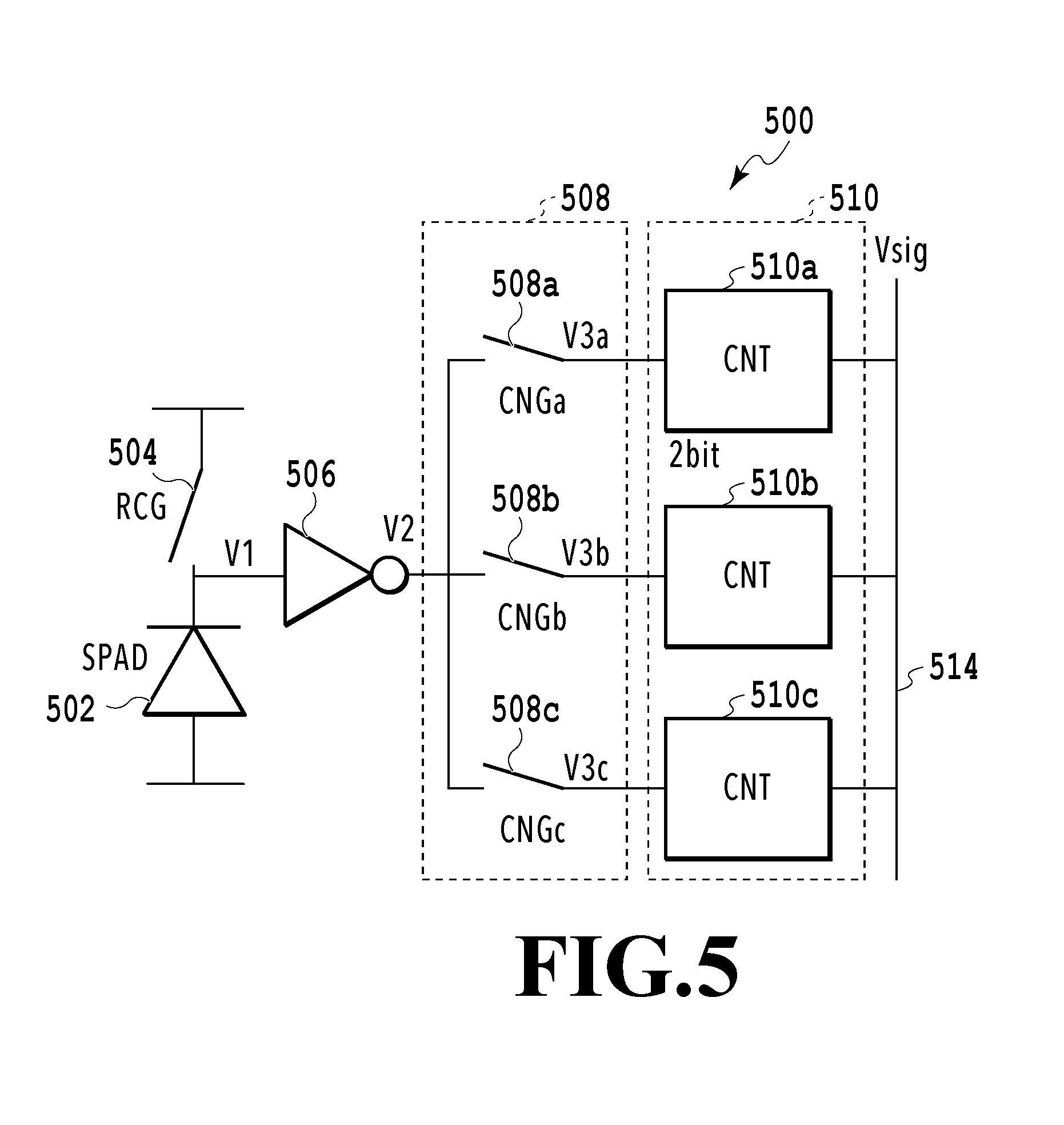

Provided is a pixel circuit and an image sensor that have a wider dynamic range than the conventional one and can read electrical signals at high speeds while suppressing power consumption. The pixel circuit comprises a photodiode, a measuring part that measures a light amount according to a current output from one end of the photodiode, and a gate part provided between the photodiode and the measuring part. The pixel circuit is supplied with a recharge signal to set one end of the photodiode to a predetermined potential. The gate part is configured to connect the photodiode and the measuring part such that the measuring part measures the light amount at a plurality of time points in a single cycle of the recharge signal.[French]
