WO2025145216 - SYSTEMS AND METHODS FOR REDUCING COOLANT BACKFLOW THROUGH A POOL-TYPE REACTOR CORE

National phase entry is expected:
Publication Number WO/2025/145216
Publication Date 03.07.2025
International Application No. PCT/US2024/062362
International Filing Date 30.12.2024
Title **
[English] SYSTEMS AND METHODS FOR REDUCING COOLANT BACKFLOW THROUGH A POOL-TYPE REACTOR CORE
[French] SYSTÈMES ET PROCÉDÉS DE RÉDUCTION DE REFLUX DE FLUIDE DE REFROIDISSEMENT À TRAVERS UN COEUR DE RÉACTEUR DE TYPE PISCINE
Applicants **
GE-HITACHI NUCLEAR ENERGY AMERICAS LLC
Inventors
BURNETTE, David
Priority Data
63/616,570   30.12.2023   US
19/006,196   30.12.2024   US
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
译文

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting2300
EPO Filing, Examination, Granting14132
Japan Filing, Examination, Granting2309
South Korea Filing, Examination, Granting1915
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 25,396
Contact Us

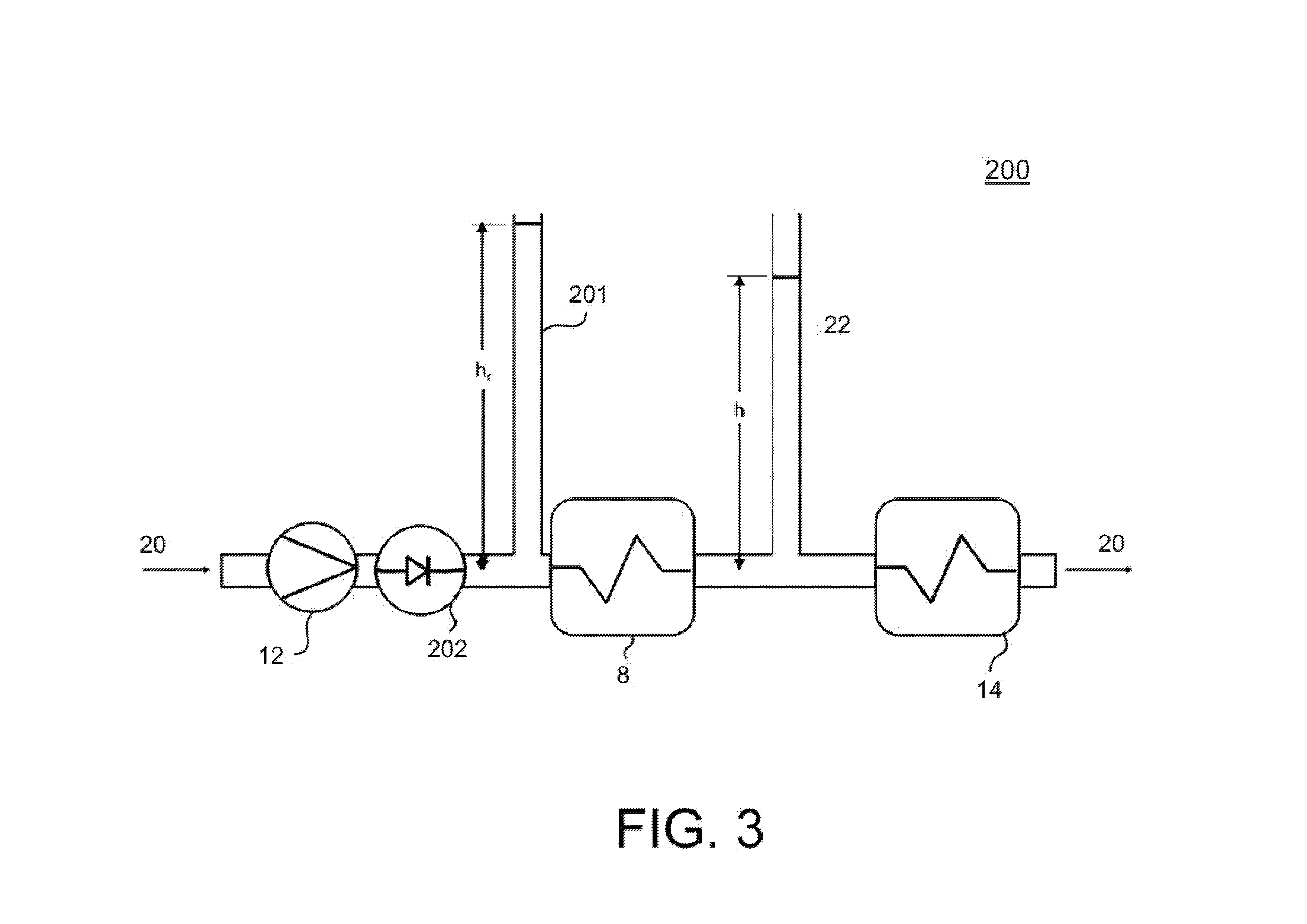

Abstract[English] Systems limit backflow through a nuclear reactor cores from a hot pool to a cold pool. Example systems include coolant risers and/or one-way flow structures before a coolant inlet for the reactor. The coolant riser provides coolant that will flow under gravity alone into the reactor despite hot pool pressure head. Fluidic diodes and/or check-valves prevent nearly all reverse flow. Such structures may be positioned with the flow limiter before the riser in the normal direction of coolant flow into the inlet. Such structures may be positioned anywhere they can functionally provide coast down cooling and prevent reverse flow, including as a pump annulus or pool. For a sodium-cooled fast reactor, the riser and fluidic diode may provide sufficient volume to cool the reactor with forward coolant flow for an entire reactor coast down period, when the reactor is shut down and generating only decay heat.[French] L'invention concerne des systèmes qui limitent le reflux à travers un cœur de réacteur nucléaire d'une piscine chaude à une piscine froide. Des exemples de systèmes comprennent des colonnes de refroidissement et/ou des structures d'écoulement unidirectionnel avant une entrée de fluide de refroidissement pour le réacteur. La colonne de refroidissement fournit un fluide de refroidissement qui s'écoule sous l'effet de la gravité dans le réacteur malgré la tête de pression de piscine chaude. Des diodes fluidiques et/ou des clapets anti-retour empêchent quasiment tout flux de retour. De telles structures peuvent être positionnées avec un limiteur de débit avant la colonne de refroidissement dans la direction normale de l'écoulement de fluide de refroidissement dans l'entrée. Ces structures peuvent être positionnées à n'importe quel emplacement où elles peuvent assurer le refroidissement par décélération et empêcher le reflux, par exemple sous la forme d'un espace annulaire autour d'une pompe ou d'une piscine. Dans un réacteur rapide refroidi au sodium, la colonne de refroidissement et la diode fluidique peuvent fournir un volume suffisant pour refroidir le réacteur avec un flux de fluide caloporteur vers l'avant pendant toute la période de refroidissement du réacteur, lorsque celui-ci est arrêté et ne produit que de la chaleur de décroissance.
