WO2026101394 - FOLDABLE PANEL SUPPORT MECHANISM, CHAIN FOR A FOLDABLE PANEL SUPPORT MECHANISM AND PANEL SUPPORT
National phase entry is expected:
Publication Number
WO/2026/101394
Publication Date
15.05.2026
International Application No.
PCT/NL2025/000007
International Filing Date
03.11.2025
Title **
[English]
FOLDABLE PANEL SUPPORT MECHANISM, CHAIN FOR A FOLDABLE PANEL SUPPORT MECHANISM AND PANEL SUPPORT
[French]
MÉCANISME SUPPORT DE PANNEAU PLIABLE, CHAÎNE POUR MÉCANISME DE SUPPORT DE PANNEAU PLIABLE ET SUPPORT DE PANNEAU
Applicants **
DE BOSCH KEMPER, Joan Melchior
Inventors
Priority Data
1044986
06.11.2024
NL
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2316 | |
| EPO | Filing, Examination, Granting | 9766 | |
| Japan | Filing, Examination, Granting | 2462 | |
| South Korea | Filing, Examination, Granting | 2693 | |
| USA | Filing, Examination, Granting | 5740 |
Total:
22,977
Contact Us
Abstract[English]

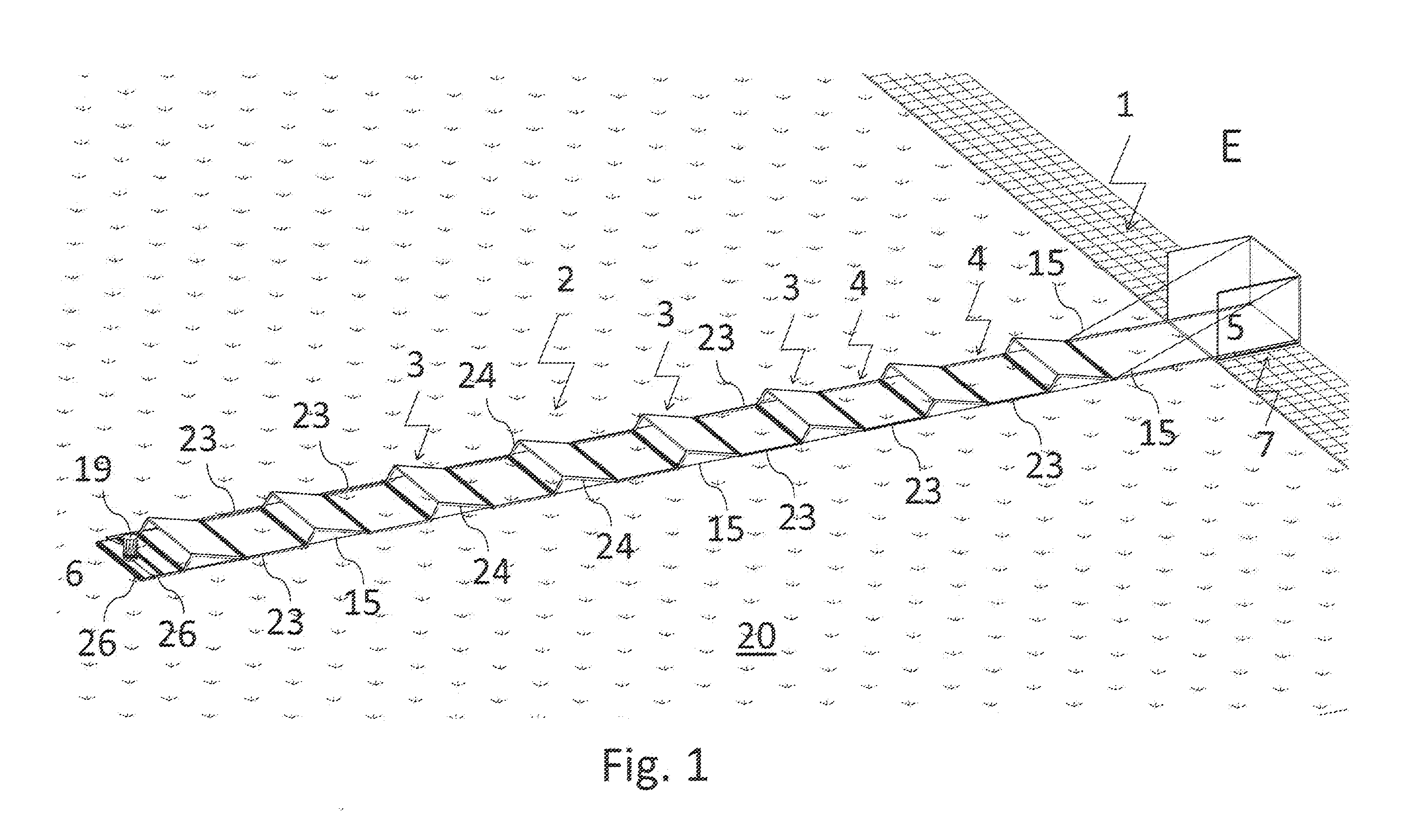

Foldable panel support mechanism (1), comprising a chain 82) of a plurality of panel supports (3) placed in a row that extends in a longitudinal direction (L) from a beginning (5) of the chain that is held to a base (7) to a free end (6) of the chain, the panel supports being arranged to hinge relative to each other about a hinge axis (10) that extends transversely to the longitudinal direction of the chain. The panel supports are provided with elongate runners (11) that extend transversely to the longitudinal direction of the chain, such that by running the runners over the ground, the chain can be switched between an extended state (e) in which the panel supports are supported directly on the ground via the runners to cover an area of the ground adjacent the base, and a retracted state (R) in which the panel supports leave the area of the ground adjacent the base free.[French]
L'invention concerne un mécanisme de support de panneau pliable (1), comprenant une chaîne (82) d'une pluralité de supports de panneau (3) placés dans une rangée qui s'étend dans une direction longitudinale (L) depuis un début (5) de la chaîne qui est maintenu sur une base (7) jusqu'à une extrémité libre (6) de la chaîne, les supports de panneau étant agencés pour s'articuler l'un par rapport à l'autre autour d'un axe de charnière (10) qui s'étend transversalement à la direction longitudinale de la chaîne. Les supports de panneaux sont pourvus de patins allongés (11) qui s'étendent transversalement à la direction longitudinale de la chaîne, de telle sorte qu'en roulant les patins sur le sol, la chaîne peut être commutée entre un état étendu (e) dans lequel les supports de panneaux sont soutenus directement sur le sol par l'intermédiaire des patins pour recouvrir une zone du sol adjacente à la base, et un état rétracté (R) dans lequel les supports de panneau quittent la zone du sol adjacente à la base libre.
