WO2025202976 - VACUUM PUMP SYSTEM AND INTERFACE CIRCUIT
National phase entry is expected:
Publication Number
WO/2025/202976
Publication Date
02.10.2025
International Application No.
PCT/IB2025/053273
International Filing Date
28.03.2025
Title **
[English]
VACUUM PUMP SYSTEM AND INTERFACE CIRCUIT
[French]
SYSTÈME DE POMPE À VIDE ET CIRCUIT D'INTERFACE
Applicants **
EDWARDS JAPAN LIMITED
Inventors
HONMA, Ryutaro
SUN, Yanbin
Priority Data
2024-057774
29.03.2024
JP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1910 | |
| EPO | Filing, Examination, Granting | 8186 | |
| Japan | Filing, Examination, Granting | 1753 | |
| South Korea | Filing, Examination, Granting | 1253 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
17,842
Contact Us
Abstract[English]

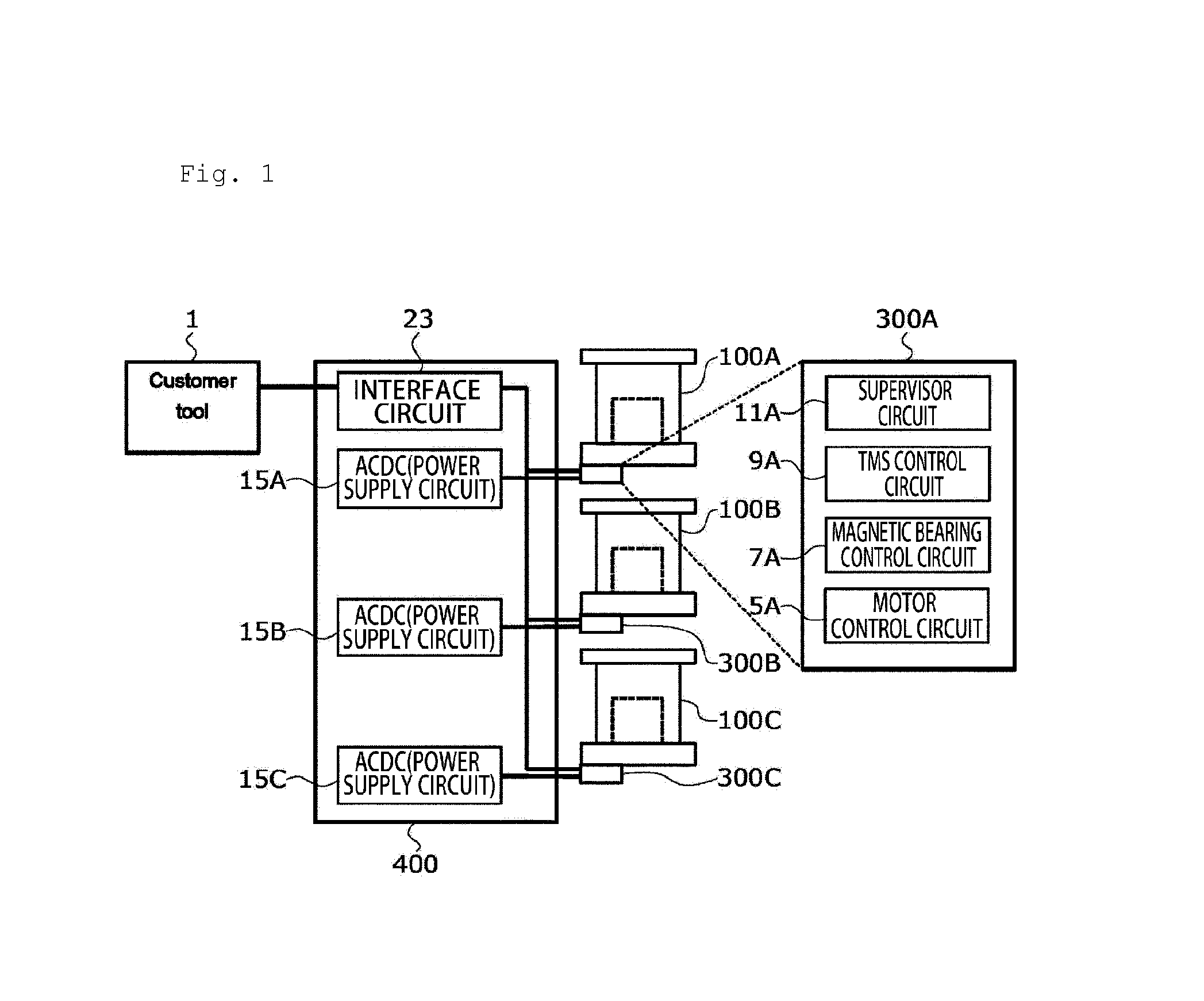

[Problem] Provided is a vacuum pump system and an interface circuit in which one interface circuit can monitor and control a plurality of vacuum pumps when the plurality of vacuum pumps are monitored and controlled from a customer supervisory control tool via the interface circuit [Solving Means] Turbomolecular pumps 100 and control devices 300 are provided in pairs. An interface circuit 23 and AC/DC power supply circuits 15A, 15B, and 15C are not included in the control devices 300 but are configured in a separate integration unit 400. Conventional interface circuits 13A, 13B, and 13C are provided for respective turbomolecular pumps 100 in order to monitor and control respective control devices 200A, 200B, and 200C. In contrast, the interface circuit 23 integrally monitor and control the control devices 300A, 300B, and 300C. Thus, one interface circuit 23 is configured for three turbomolecular pumps 100.[French]
