WO2025202782 - HARD DRIVE CARRIER, CARRIER CONTROL METHOD, AND STORAGE MEDIUM
National phase entry is expected:
Publication Number
WO/2025/202782
Publication Date
02.10.2025
International Application No.
PCT/IB2025/052175
International Filing Date
28.02.2025
Title **
[English]
HARD DRIVE CARRIER, CARRIER CONTROL METHOD, AND STORAGE MEDIUM
[French]
SUPPORT DE DISQUE DUR, PROCÉDÉ DE COMMANDE DE SUPPORT ET SUPPORT DE STOCKAGE
[Chinese]
硬盘托架、托架控制方法及存储介质
Applicants **
CLOUD INTELLIGENCE ASSETS HOLDING (SINGAPORE) PRIVATE LIMITED
Inventors
LI, Hu
Priority Data
202410347708.8
25.03.2024
CN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
IPOS
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1956 | |
| EPO | Filing, Examination, Granting | 11576 | |
| Japan | Filing, Examination, Granting | 1723 | |
| South Korea | Filing, Examination, Granting | 1206 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
21,201
Contact Us
Abstract[English]

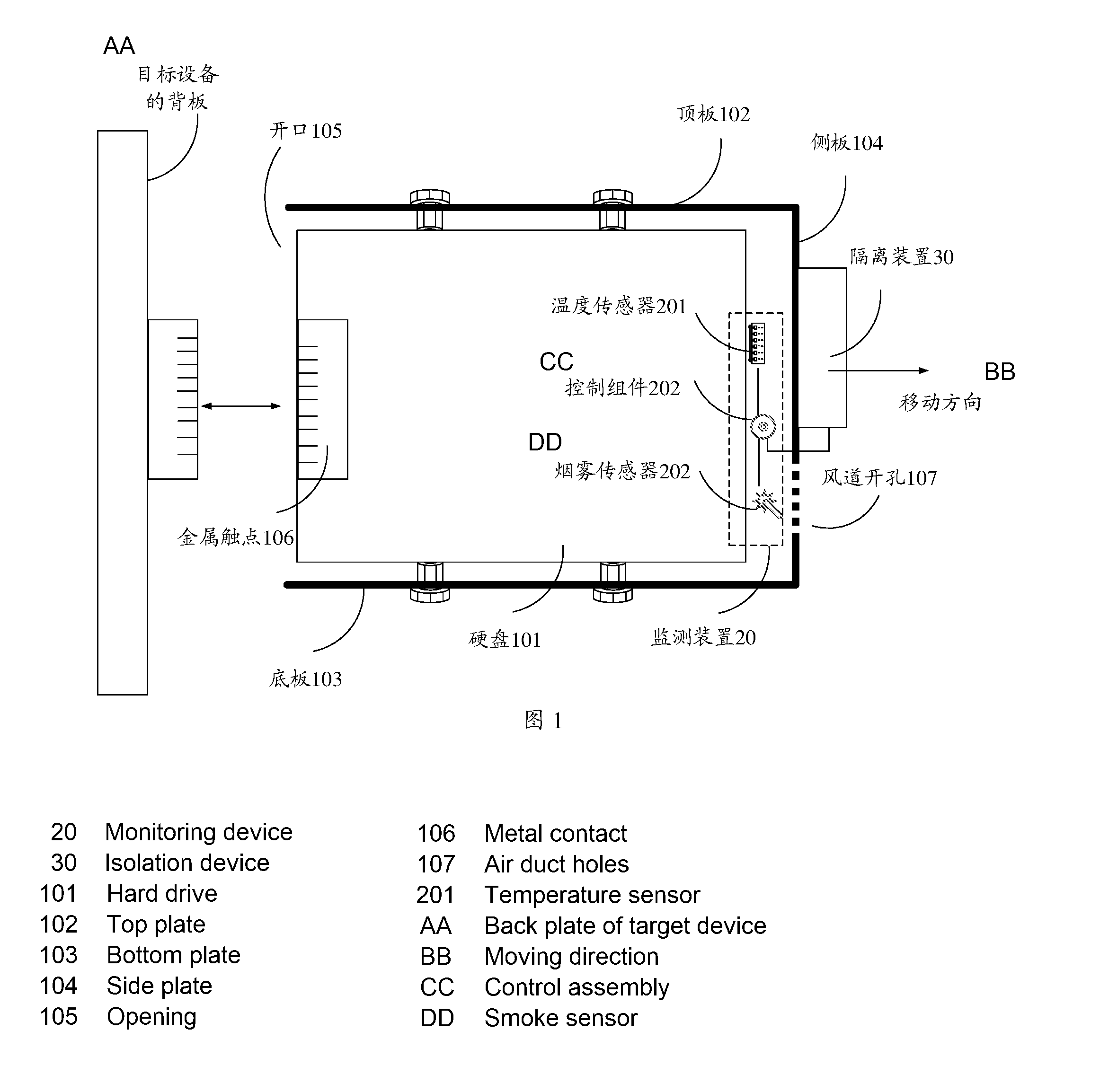

Embodiments of the present invention provide a hard drive carrier, a carrier control method, and a storage medium. The hard drive carrier comprises a carrier body, and a monitoring device and an isolation device which are mounted on the carrier body. By means of at least one sensor in the monitoring device, automatic monitoring of a hard drive can be achieved. Upon detecting an anomaly in the hard drive, the isolation device can be controlled to disconnect connection between the hard drive and a target device. Furthermore, physical isolation between the hard drive and the connected target device (e.g., a server) can be achieved when an anomaly occurs to the hard drive, reducing the impact of the hard drive anomaly on the hardware safety of the target device, and improving the physical safety of the target device.[French]
Des modes de réalisation de la présente invention concernent un support de disque dur, un procédé de commande de support et un support de stockage. Le support de disque dur comprend un corps de support, un dispositif de surveillance et un dispositif d'isolation qui sont montés sur le corps de support. Au moyen d'au moins un capteur dans le dispositif de surveillance, on peut obtenir une surveillance automatique d'un disque dur. Lors de la détection d'une anomalie dans le disque dur, le dispositif d'isolation peut être commandé pour supprimer la connexion entre le disque dur et un dispositif cible. En outre, une isolation physique entre le disque dur et le dispositif cible connecté (par exemple, un serveur) peut être obtenue lorsqu'une anomalie se produit dans le disque dur, ce qui réduit l'impact de l'anomalie du disque dur sur la sécurité matérielle du dispositif cible et améliore la sécurité physique du dispositif cible.[Chinese]
本公开实施例提供一种硬盘托架、托架控制方法及存储介质。其中，硬盘托架包括托架本体以及安装在托架本体上的监测装置和隔离装置。通过监测装置中的至少一个传感器，可实现对硬盘的自动监测。当监测出硬盘存在异常时，可控制隔离装置断开硬盘与目标设备之间的连接。进而，可在硬盘存在异常时，实现硬盘与被连接的目标设备（例如服务器）之间的物理隔离，降低了硬盘异常对目标设备的硬件安全造成的影响，提升了目标设备的物理安全性。
