WO2025181707 - CONFINEMENT ROD-BASED SPOT SIZE CONVERTER FOR FIBER-TO-CHIP COUPLING IN PHOTONIC INTEGRATED CIRCUITS
National phase entry is expected:
Publication Number
WO/2025/181707
Publication Date
04.09.2025
International Application No.
PCT/IB2025/052083
International Filing Date
26.02.2025
Title **
[English]
CONFINEMENT ROD-BASED SPOT SIZE CONVERTER FOR FIBER-TO-CHIP COUPLING IN PHOTONIC INTEGRATED CIRCUITS
[French]
CONVERTISSEUR DE TAILLE DE POINT BASÉ SUR UNE TIGE DE CONFINEMENT POUR COUPLAGE FIBRE-PUCE DANS DES CIRCUITS INTÉGRÉS PHOTONIQUES
Applicants **
LUMIPHASE AG
Inventors
GRANDJEAN, Loris
ELTES, Felix
COMMIN, James Paul
Priority Data
63/558,421
27.02.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2140 | |
| EPO | Filing, Examination, Granting | 10170 | |
| Japan | Filing, Examination, Granting | 2279 | |
| South Korea | Filing, Examination, Granting | 2323 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
21,652
Contact Us
Abstract[English]

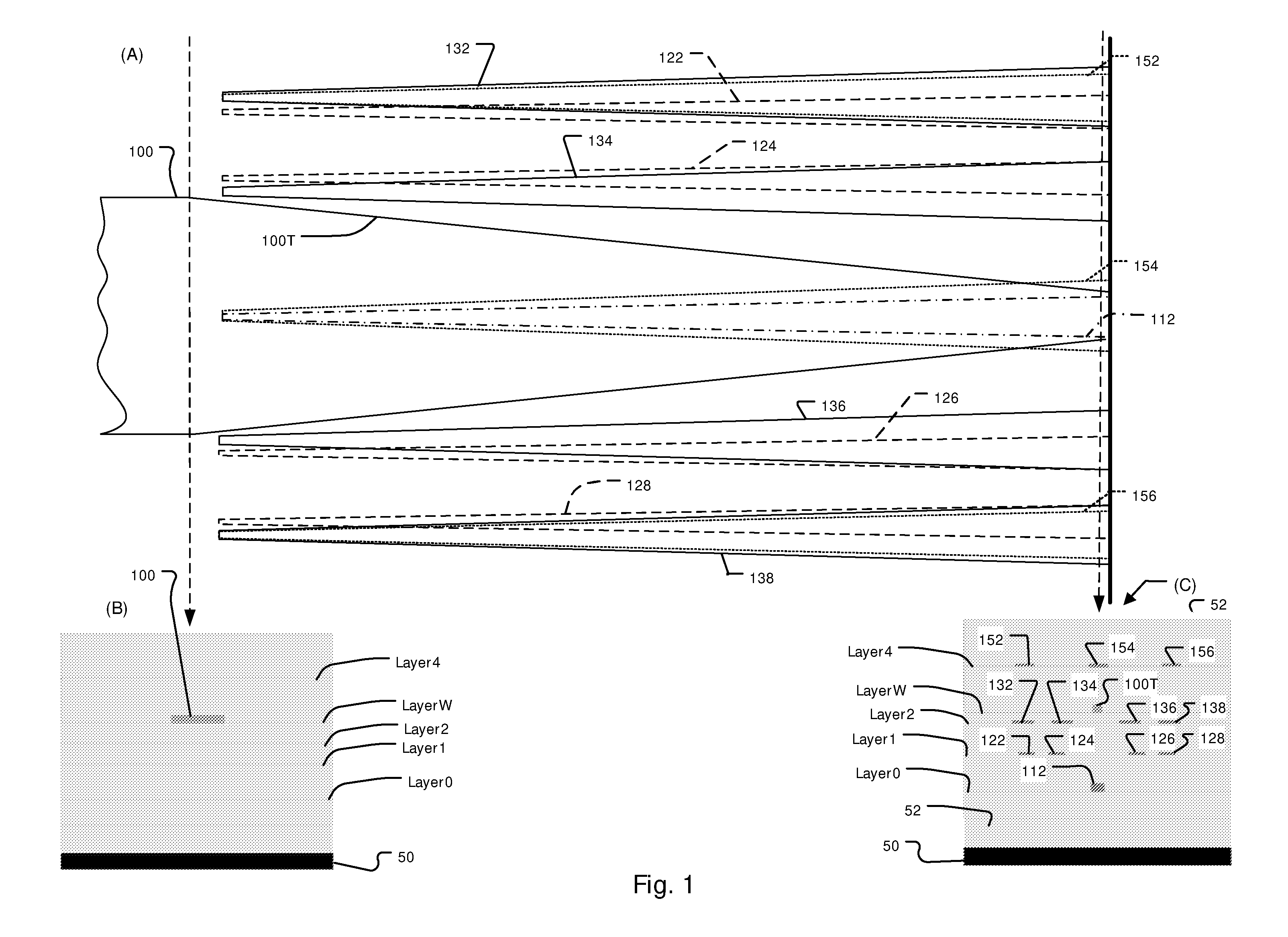

A photonic device and method are disclosed for low-loss fiber-to-chip coupling in photonic integrated circuits. A waveguide tapers near the edge, reducing its width by at least 50%, while confinement rods arranged in multiple vertical layers above and below the waveguide taper in the opposite direction. Together, they form a complementary "super-mode," ensuring a smooth transition for the optical field. This design alleviates fabrication challenges tied to extremely narrow tapers and enables a smaller footprint than conventional edge couplers. By placing the waveguide at the super-mode's center, the dielectric stack is thinner, facilitating integration with standard silicon photonics processes. The result is a robust, compact, and highly efficient solution for fiber-to-chip interconnects.[French]
Sont divulgués un dispositif photonique et un procédé de couplage fibre-puce à faible perte dans des circuits intégrés photoniques. Un guide d'ondes se rétrécit à proximité du bord, réduisant sa largeur d'au moins 50%, tandis que des tiges de confinement disposées dans de multiples couches verticales au-dessus et au-dessous du guide d'ondes se rétrécissent dans la direction opposée. Ils forment ensemble un "super-mode" complémentaire assurant une transition douce pour le champ optique. Cette conception atténue les défis de fabrication liés à des effilements extrêmement étroits et permet une empreinte plus petite que les coupleurs de bord classiques. En plaçant le guide d'ondes au centre du super-mode, l'empilement diélectrique est plus mince, facilitant l'intégration avec des processus photoniques de silicium standard. Le résultat est une solution robuste, compacte et hautement efficace pour des interconnexions fibre-puce.
