WO2025003763 - DESIGN AND METHOD TO IMPROVE PERFORMANCE OF CRYOGENIC PUMP
National phase entry is expected:
Publication Number
WO/2025/003763
Publication Date
02.01.2025
International Application No.
PCT/IB2024/000360
International Filing Date
27.06.2024
Title **
[English]
DESIGN AND METHOD TO IMPROVE PERFORMANCE OF CRYOGENIC PUMP
[French]
CONCEPTION ET PROCÉDÉ D'AMÉLIORATION DES PERFORMANCES D'UNE POMPE CRYOGÉNIQUE
Applicants **
L'AIR LIQUIDE, SOCIETE ANONYME POUR L'ETUDE ET L'EXPLOITATION DES PROCEDES GEORGES CLAUDE
Inventors
LIGHT, Joshua
HAYES, Jerry
Priority Data
63/523,528
27.06.2023
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2026 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2154 | |
| South Korea | Filing, Examination, Granting | 2066 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,093
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

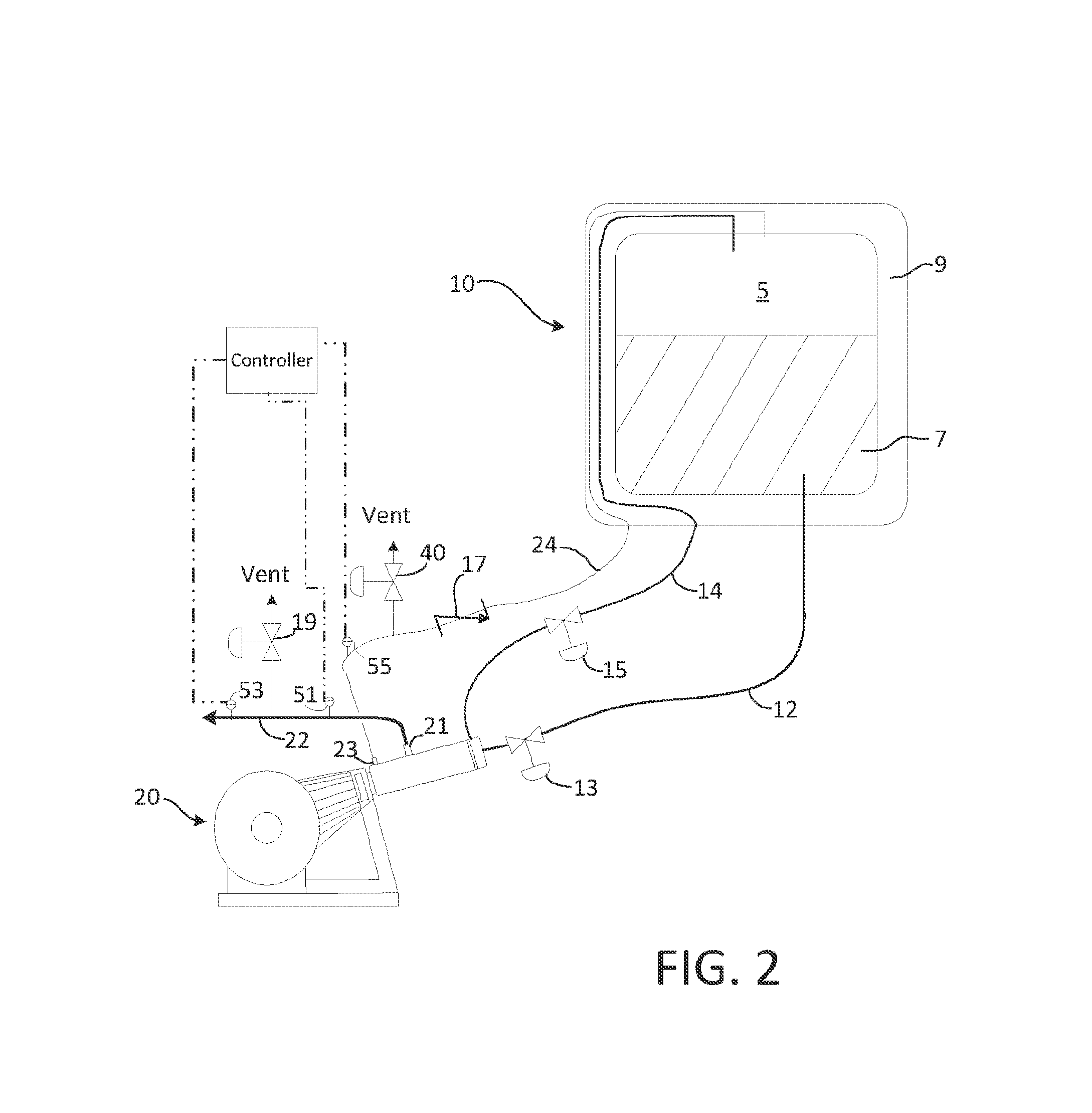

An apparatus and method for storage of a liquid cryogen, particularly liquid hydrogen, is provided. The apparatus may include: a cryogenic pump (20) positioned to receive the liquid cryogen from a liquid cryogen storage tank (10), wherein the cryogenic pump (20) comprises: a piston ring leak conduit (24) in fluid communication with a piston ring leak outlet (23) on the cryogenic pump (20) and the headspace (5) of the liquid cryogen storage tank (10); a piston ring leak check valve (17) disposed on the piston ring leak conduit (24); a piston ring leak vent valve (40) in fluid communication with the piston ring leak conduit (24); a pump discharge conduit (22) in fluid communication with the pump discharge outlet (21); and a pump discharge vent valve (19) in fluid communication with the pump discharge conduit (22).[French]
L'invention concerne un appareil et un procédé de stockage d'un liquide cryogénique, en particulier de l'hydrogène liquide. L'appareil peut comprendre : une pompe cryogénique (20) positionnée pour recevoir le liquide cryogénique provenant d'un réservoir de stockage (10) de liquide cryogénique, la pompe cryogénique (20) présentant : un conduit de fuite (24) de segment de piston en communication fluidique avec une sortie de fuite (23) de segment de piston sur la pompe cryogénique (20) et l'espace libre (5) du réservoir de stockage de liquide cryogénique (10); un clapet de non-retour de fuite (17) de segment de piston disposé sur le conduit de fuite (24) de segment de piston; une soupape de purge de fuite (40) de segment de piston en communication fluidique avec le conduit de fuite (24) de segment de piston; un conduit de refoulement (22) de pompe en communication fluidique avec la sortie de refoulement (21) de pompe; et une soupape de purge (19) de refoulement de pompe en communication fluidique avec le conduit de refoulement (22) de pompe.
