WO2024089672 - CORNER BLOCK SEGMENT FOR A ROLL OF A COMMINUTION DEVICE
National phase entry:
Publication Number
WO/2024/089672
Publication Date
02.05.2024
International Application No.
PCT/IB2023/060906
International Filing Date
30.10.2023
Title **
[English]
CORNER BLOCK SEGMENT FOR A ROLL OF A COMMINUTION DEVICE
[French]
SEGMENT BLOC D'ANGLE POUR ROULEAU DE DISPOSITIF DE BROYAGE
Applicants **
FLSMIDTH A/S
Inventors
HÖRSTER, Nils
WORTMANN, Daniel
LORENZ, Silvio
SCHROERS, Frank
JANSSEN, Matthias
Priority Data
2022/5888
28.10.2022
BE
102022128769.6
28.10.2022
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter II
* |
| * | |
| * | |
| * | |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2050 | |
| EPO | Filing, Examination, Granting | 8113 | |
| Japan | Filing, Examination, Granting | 2122 | |
| South Korea | Filing, Examination, Granting | 2041 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,066
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

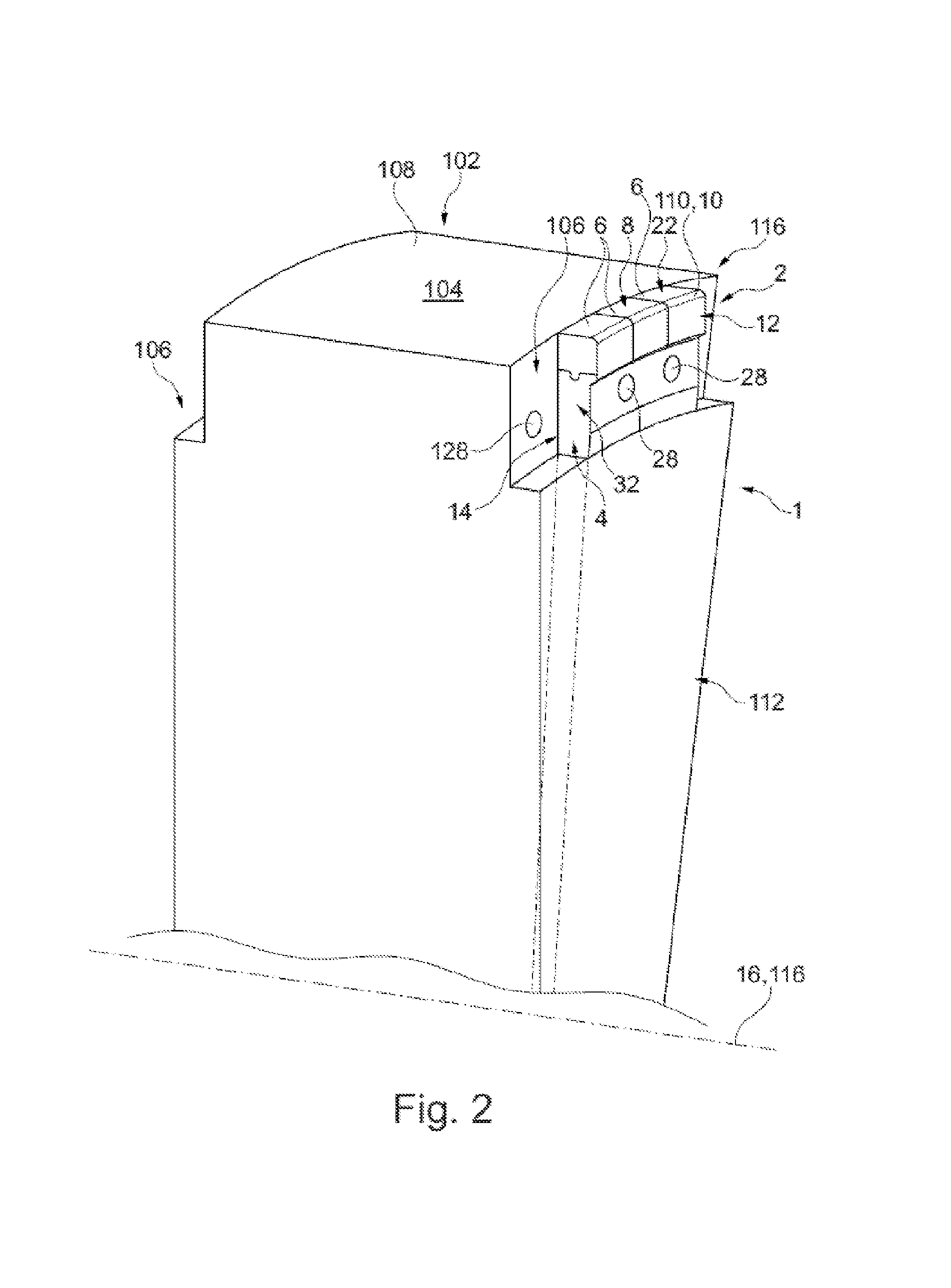

The invention relates to a corner block segment (2) for attachment to a cylindrical roll body (104) of a roll (102) of a comminution device (100), the corner block segment (2) having a base body (4), a segment outer side (8), a segment end face (12), a corner region (10) between the segment outer side (8) and the segment end face (12) to form a roll edge (110) of the roll (102), and a receiving side (14),wherein the receiving side (14) corresponds to a segment receptacle (106) of the roll body (104) and is arranged facing away from the corner region (10), wherein the segment outer side (8) is curved and is arranged facing away from an imaginary reference axis (16), and wherein in the longitudinal section through the reference axis (16), the corner region (10) has a radius (18) of at least 5 mm.[French]
L'invention concerne un segment bloc d’angle (2) destiné à être fixé à un corps de rouleau cylindrique (104) d'un rouleau (102) d'un dispositif de broyage (100), le segment bloc d’angle (2) ayant un corps de base (4), un côté externe de segment (8), une face d'extrémité de segment (12), une région d’angle (10) entre le côté externe de segment (8) et la face d'extrémité de segment (12) pour former un bord de rouleau (110) du rouleau (102), et un côté de réception (14). Le côté de réception (14) correspond à un réceptacle de segment (106) du corps de rouleau (104) et est disposé à l'opposé de la région d’angle (10). Le côté externe de segment (8) est incurvé et est disposé à l'opposé d’un axe de référence imaginaire (16). Dans la section longitudinale passant par l’axe de référence (16), la région d’angle (10) a un rayon (18) d'au moins 5 mm.
