WO2024246598 - FITTING ELEMENT FOR CONNECTORS
National phase entry is expected:
Publication Number
WO/2024/246598
Publication Date
05.12.2024
International Application No.
PCT/IB2023/059115
International Filing Date
14.09.2023
Title **
[English]
FITTING ELEMENT FOR CONNECTORS
[French]
ÉLÉMENT DE RACCORD POUR CONNECTEURS
Applicants **
HARTING ELECTRIC STIFTUNG & CO. KG
Inventors
JAWAHAR, Balaji
KRISHNASWAMY, Venkataraman
DÖKEL, Nils
GRIEPENSTROH, Sebastian
HARIDAS, Rohit
Priority Data
202311038409
02.06.2023
IN
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2053 | |
| EPO | Filing, Examination, Granting | 8637 | |
| Japan | Filing, Examination, Granting | 2186 | |
| South Korea | Filing, Examination, Granting | 2135 | |
| USA | Filing, Examination, Granting | 5940 |
Total:
20,951
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

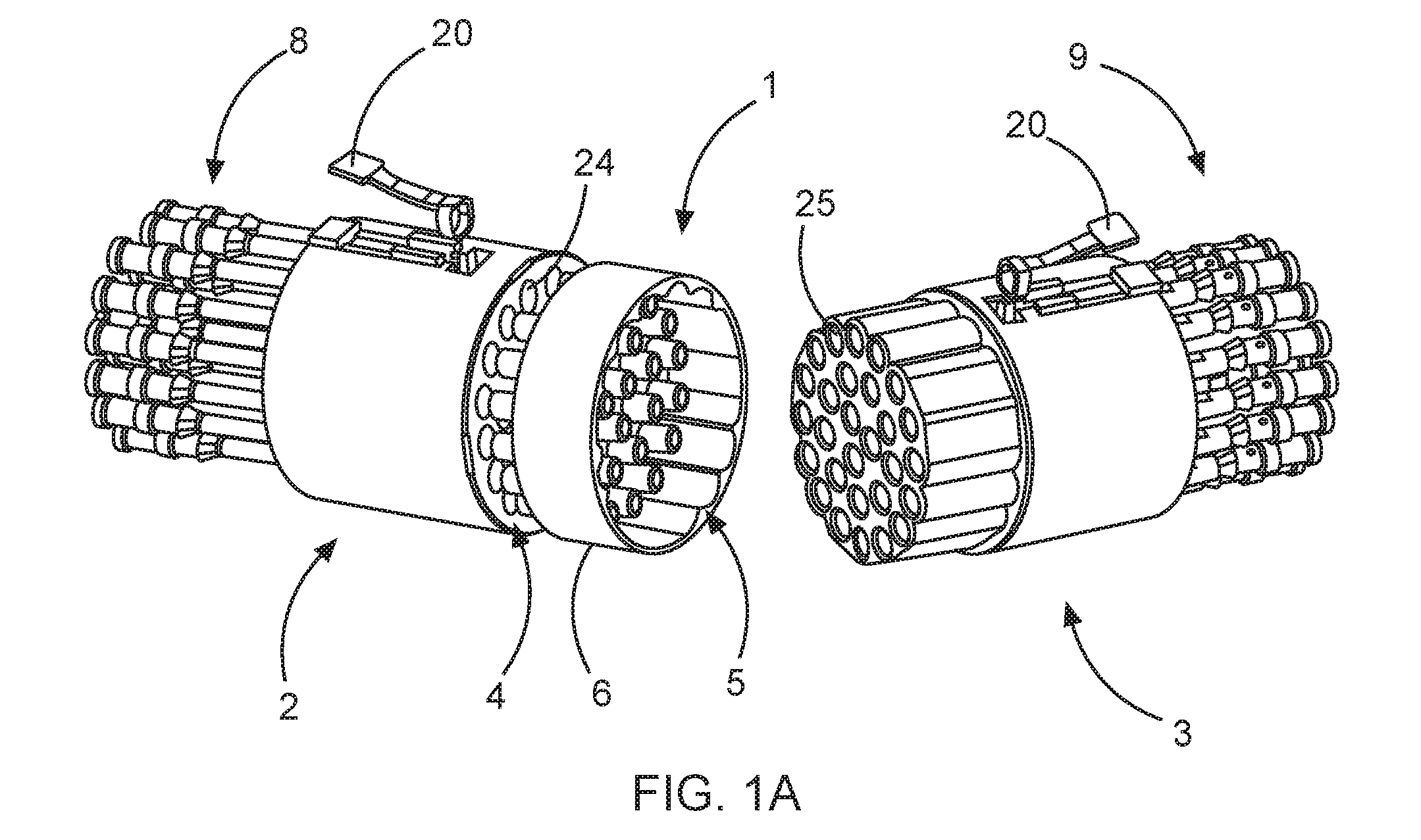

Fitting element (1) for multi-contact connectors (17) placeable between a male insulation body (2) accommodating a plurality of first conductors (8) and a female insulation body (3) accommodating a plurality of second conductors (9). The fitting element (1) comprises a main body (6) having an inserting part (4) insertable into a portion of the male insulation body (2) and a receiving part (5) for receiving a portion of the female insulation body (3), which are shaped such that, when the inserting part (4) is inserted into said portion of the male insulation body (2) and the receiving part (4) receives said portion of the female insulation body (3), the clearance and creepage among the plurality of first conductors (8) and among the plurality of second conductors (9) is maintained higher than 3 mm and higher than 4.7 mm, in particular higher than 5.5 mm, respectively.[French]
Un élément de raccord (1) pour connecteurs à contacts multiples (17) peut être placé entre un corps d'isolation mâle (2) recevant une pluralité de premiers conducteurs (8) et un corps d'isolation femelle (3) recevant une pluralité de seconds conducteurs (9). L'élément de raccord (1) comprend un corps principal (6) ayant une partie d'insertion (4) pouvant être insérée dans une partie du corps d'isolation mâle (2) et une partie de réception (5) pour recevoir une partie du corps d'isolation femelle (3), qui sont formées de telle sorte que, lorsque la partie d'insertion (4) est insérée dans ladite partie du corps d'isolation mâle (2) et la partie de réception (4) reçoit ladite partie du corps d'isolation femelle (3), le dégagement et le fluage parmi la pluralité de premiers conducteurs (8) et parmi la pluralité de seconds conducteurs (9) sont maintenus supérieurs à 3 mm et supérieurs à 4,7 mm, en particulier supérieurs à 5,5 mm, respectivement.
