WO2026120042 - HEATER FOR AEROSOL-GENERATING DEVICE
National phase entry is expected:
Publication Number
WO/2026/120042
Publication Date
11.06.2026
International Application No.
PCT/EP2025/085400
International Filing Date
03.12.2025
Title **
[English]
HEATER FOR AEROSOL-GENERATING DEVICE
[French]
DISPOSITIF DE CHAUFFAGE POUR DISPOSITIF GÉNÉRATEUR D'AÉROSOL
Applicants **
ZELECTROLAB SAS
Inventors
ZOMINY, Claude
Priority Data
24217577.6
04.12.2024
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2293 | |
| EPO | Filing, Examination, Granting | 9153 | |
| Japan | Filing, Examination, Granting | 2154 | |
| South Korea | Filing, Examination, Granting | 2066 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
20,406
Contact Us
Abstract[English]

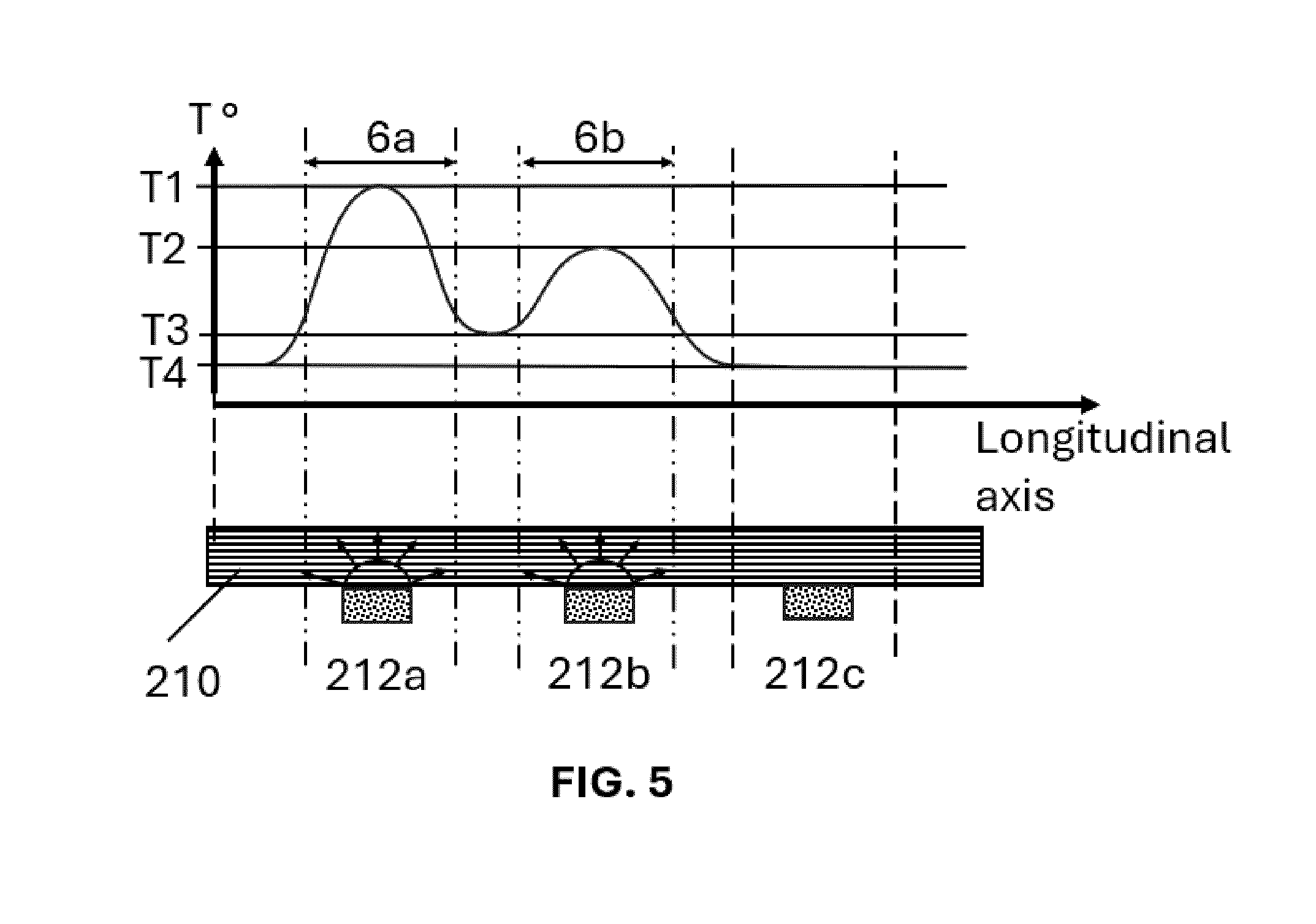

A heater (2) adapted to be electrically connected to an aerosol-generating device (1) configured to generate an aerosol when heat is delivered to an aerosol-forming system (7), said aerosol-forming system (7) comprising one or more aerosol-forming articles (6), characterized in that the heater (2) comprises at least one heating element (201, 202), said at least one heating element (201,202) comprising a heat diffusion element (210), at least two heat sources (212) and at least a base plate (214), said heat diffusion element (210) having a low thermal conductivity, and thermally connected to the at least two heat sources (212), each heat source (212) being electrically controlled to produce heat independently so that to create local controlled heated areas (6a, 6b, 6c) on an outer surface of the heat diffusion element (210), and said base plate serving as a structural foundation, supporting and mechanically unifying heating sources (212).[French]
L’invention concerne un dispositif de chauffage (2) conçu pour être connecté électriquement à un dispositif générateur d'aérosol (1) conçu pour générer un aérosol lorsque de la chaleur est délivrée à un système de formation d'aérosol (7), ledit système de formation d'aérosol (7) comprenant un ou plusieurs articles de formation d'aérosol (6). L’invention est caractérisée en ce que le dispositif de chauffage (2) comprend au moins un élément chauffant (201, 202), ledit élément chauffant (201, 202) comprenant un élément de diffusion de chaleur (210), au moins deux sources de chaleur (212) et au moins une plaque de base (214), ledit élément de diffusion de chaleur (210) ayant une faible conductivité thermique, et étant relié thermiquement auxdites sources de chaleur (212), chaque source de chaleur (212) étant électriquement commandée pour produire de la chaleur indépendamment de façon à créer des zones chauffées locales commandées (6a, 6b, 6c) sur une surface externe de l'élément de diffusion de chaleur (210), et ladite plaque de base servant de fondation structurale, supportant et unifiant mécaniquement des sources de chauffage (212).
