WO2026125110 - THERMAL INTERFACE MATERIAL FOR HIGH VOLTAGE APPLICATION
National phase entry is expected:
Publication Number
WO/2026/125110
Publication Date
18.06.2026
International Application No.
PCT/EP2025/085358
International Filing Date
03.12.2025
Title **
[English]
THERMAL INTERFACE MATERIAL FOR HIGH VOLTAGE APPLICATION
[French]
MATÉRIAU D'INTERFACE THERMIQUE POUR APPLICATION HAUTE TENSION
Applicants **
HENKEL AG & CO. KGAA
Inventors
SCHUH, Holger
SCHIMMECK, Frederic
RIEM, Nicolas
WHITE, Kevin
Priority Data
63/730,260
10.12.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2024 | |
| EPO | Filing, Examination, Granting | 8126 | |
| Japan | Filing, Examination, Granting | 2155 | |
| South Korea | Filing, Examination, Granting | 2071 | |
| USA | Filing, Examination, Granting | 5340 |
Total:
19,716
Contact Us
Abstract[English]

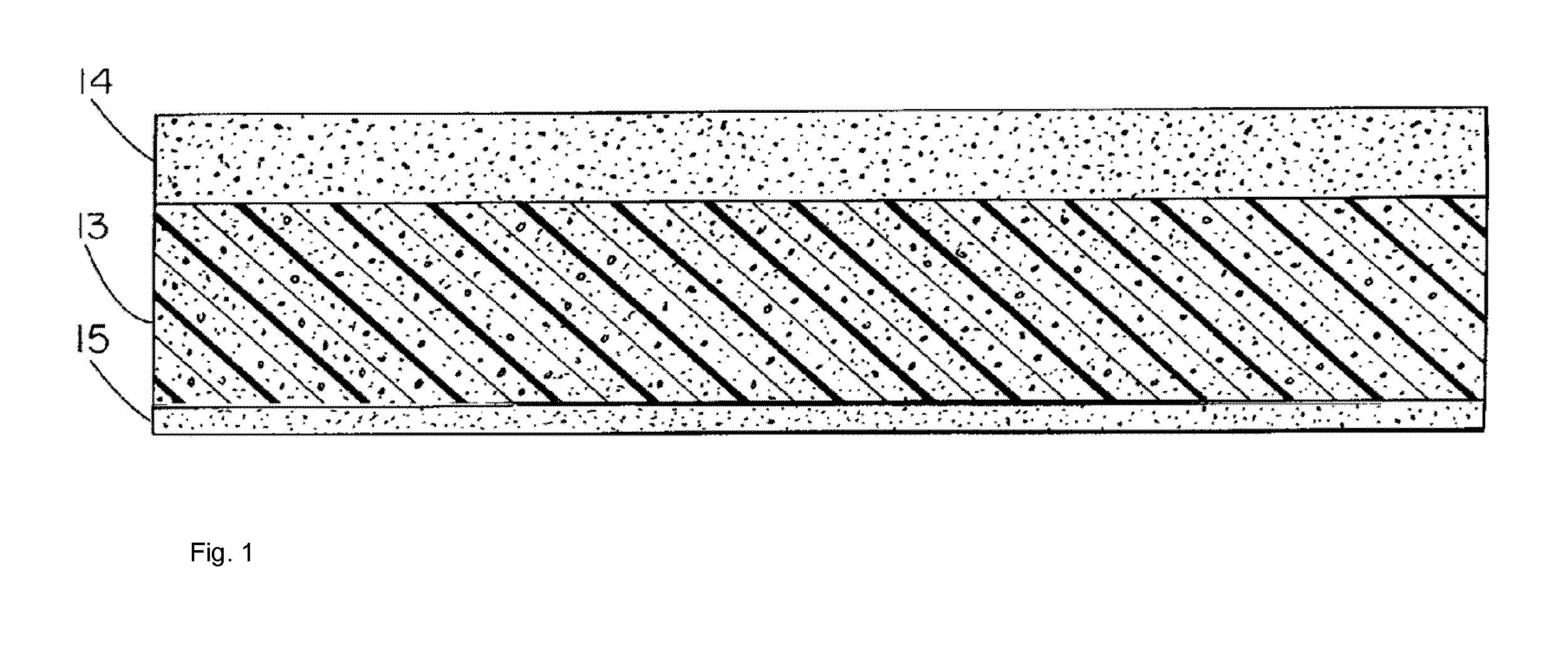

The present invention relates to a thermal interface material structure for high voltage application, in particular for high voltage power system and to a method of producing the thermal interface material structure. Further, the present invention relates to an electronic apparatus comprising the thermal interface material structure and to a method of manufacturing the electronic apparatus. The thermal interface material structure, comprises in sequence: a gap filler layer, a thermal pad layer, and an adhesive layer having a first adhesion strength to metal of from 50 to 1000 g/in, measured according to ASTM D3330/D3330M Method A and having a second adhesion strength to the thermal pad layer of at least 10% larger than the first adhesion strength.[French]
