WO2026099267 - LEAK DETECTION DEVICE AND METHOD FOR A CONNECTOR ASSEMBLY CONNECTING TWO HYDRAULIC ELEMENTS CONVEYING MOLTEN SALTS
National phase entry is expected:
Publication Number
WO/2026/099267
Publication Date
15.05.2026
International Application No.
PCT/EP2025/081980
International Filing Date
05.11.2025
Title **
[English]
LEAK DETECTION DEVICE AND METHOD FOR A CONNECTOR ASSEMBLY CONNECTING TWO HYDRAULIC ELEMENTS CONVEYING MOLTEN SALTS
[French]
DISPOSITIF ET PROCÉDÉ DE DÉTECTION DE FUITE POUR UN MONTAGE DE RACCORD RELIANT DEUX ÉLÉMENTS HYDRAULIQUES CONVOYANT DES SELS FONDUS
Applicants **
NAAREA
Inventors
RAME, Jérémy
FRICAUDET, Matthieu
JOURDAIN, Erwan
MIROTTA, Salvatore
Priority Data
24315514.0
06.11.2024
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2026 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2154 | |
| South Korea | Filing, Examination, Granting | 2066 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,093
Contact Us
Abstract[English]

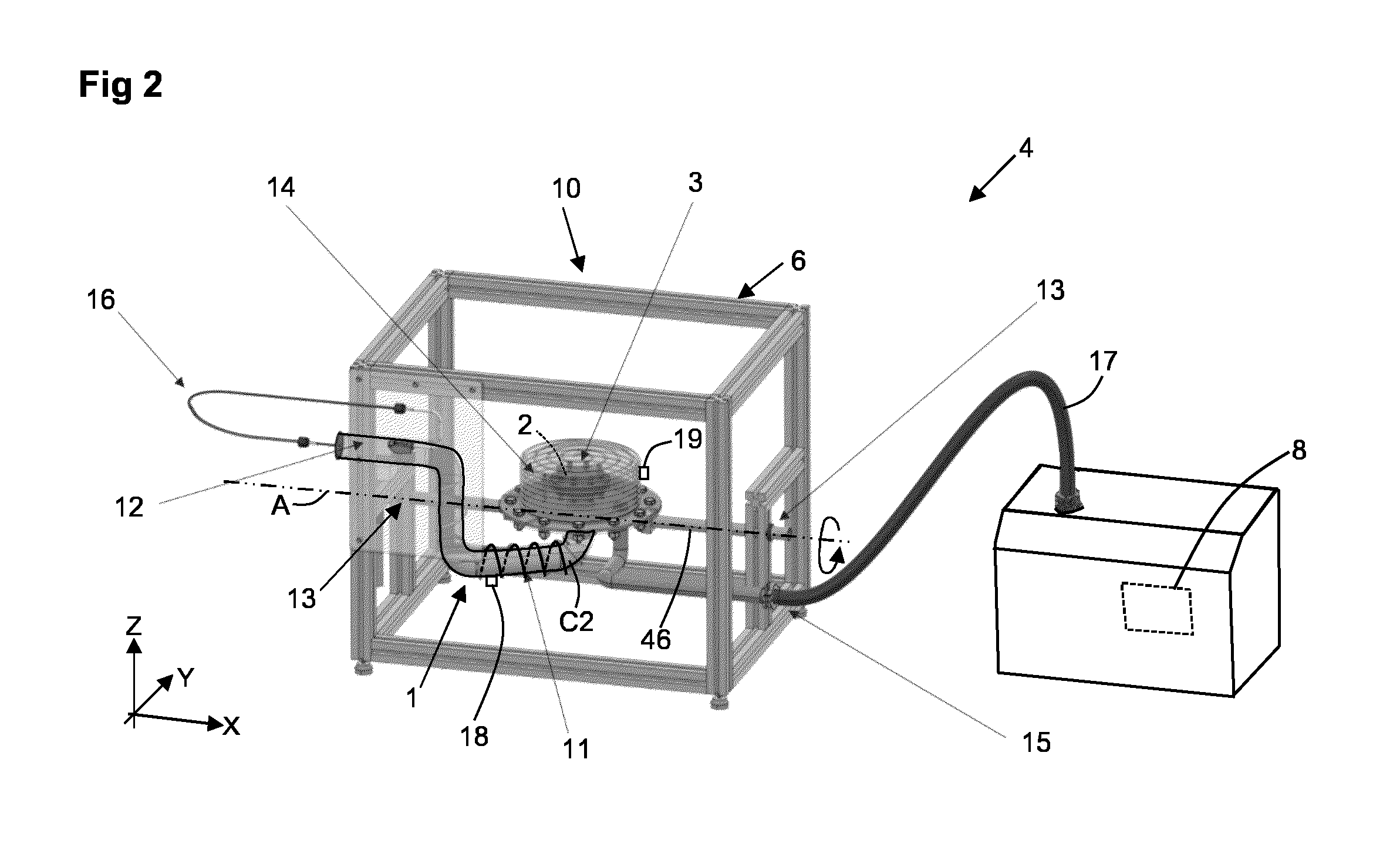

The invention relates to a leak detection device for characterizing a connector assembly (2) interconnecting two hydraulic elements, which has a test pipe (1) comprising a blind-end first portion (C1) and a second portion (C2) coupled to the first portion via the connector assembly, the second pipe portion being pressurized under light gas, the test pipe containing a predetermined quantity of molten salts (SF), the device comprising dynamics of movement of the test pipe, which is movable between a first position (P1) in which the connector zone (Z2) is immersed in the molten salts contained in the test pipe and a second position (P2) in which the connector zone is not immersed in the molten salts but is subjected to the light-gas pressure, the device comprising a sealed chamber (3) containing at least the connector.[French]
Dispositif de détection de fuite pourcaractériser un montage de raccord (2) reliant deux éléments hydrauliques entre eux, avec une canalisation de test (1) comprenant une première portion (C1) en cul-de-sac et une deuxième portion (C2) couplée à la première portion via le montage de raccord, la deuxième portion de canalisation étant mise en pression sous gaz léger, la canalisation de test contenant une quantité prédéterminée de sels fondus (SF), le dispositif comprenant une cinématique de déplacement de la canalisation de test, déplaçable entre une première position (P1) dans laquelle la zone du raccord (Z2) est baignée par les sels fondus contenus dans de la canalisation de test et une deuxième position (P2) dans laquelle la zone du raccord n'est pas baignée par les sels fondus, mais soumise à la pression de gaz léger, le dispositif comprenant une enceinte hermétique (3) renfermant au moins le raccord.
