WO2026068107 - BEARING FLANGE WITH A ROTATION AVOIDANCE MECHANISM
National phase entry is expected:
Publication Number
WO/2026/068107
Publication Date
02.04.2026
International Application No.
PCT/EP2025/074189
International Filing Date
26.08.2025
Title **
[English]
BEARING FLANGE WITH A ROTATION AVOIDANCE MECHANISM
[French]
BRIDE DE PALIER DOTÉE D'UN MÉCANISME D'ÉVITEMENT DE ROTATION
Applicants **
KB INTELLECTUAL PROPERTY GMBH & CO. KG
Inventors
GRINDEL, Daniel
HEBRARD, Gilles
MARESCOT, Jean-Baptiste
VERON, Frederic
WEINHOLD, Thomas
Priority Data
24202399.2
25.09.2024
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2053 | |
| EPO | Filing, Examination, Granting | 8637 | |
| Japan | Filing, Examination, Granting | 2186 | |
| South Korea | Filing, Examination, Granting | 2135 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,751
Contact Us
Abstract[English]

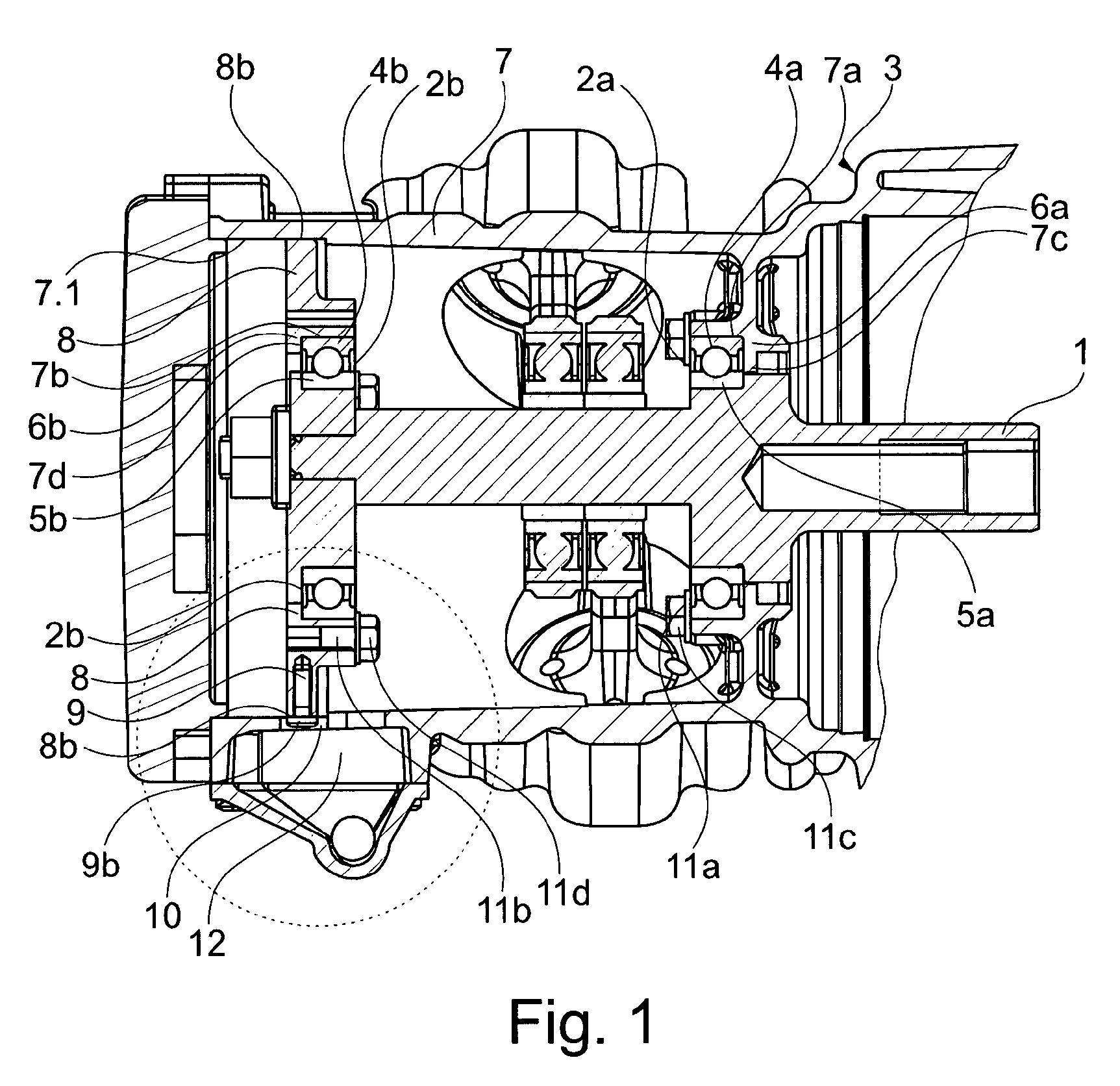

A crankshaft assembly for a housing of an air compressor of an air supply and/or treatment system for a braking system of commercial vehicles comprises a compressor housing (3) of an air compressor; a crankshaft (1) which is rotatably mounted within the compressor housing (3); and at least one roller bearing (2a, 2b) which is configured such that it rotatably supports the crankshaft (1); wherein means are provided for enabling an axial movement of the at least one roller bearing (2b) within the compressor housing (3) together with an axial movement of the crankshaft (1) or of parts of the crankshaft (1). The crankshaft assembly is further configured such that the housing (3) comprises an inner, axially extending surface (7.1); the bearing (2b) comprises a radially outer race (4b) and a radially inner race (5b), wherein the radially inner race (5b) is mounted on the crankshaft (1); and the means for enabling an axial movement of the bearing (2b) within the housing (3) comprise a disc (8) which is disposed between the inner surface (7.1) of the housing (3) and the radially outer race (4b) of the bearing (2b), wherein the radially outer race (4b) of the bearing (2b) is mounted on the disc (8). The disc (8) comprises means (9, 9b) which are configured to lock the disc (8) in the circumferential direction such that the disc (8) is not able to rotate, particularly when the crankshaft (1) rotates. The locking means (9, 9b) comprise a protrusion (9, 9b) which extends radially outward from a radially outer edge (8b) of disc (8); and the inner surface (7.1) of the housing (3) comprises a recess (10) into which the protrusion (9, 9b) of disc (8) can engage.[French]
