WO2026052400 - A DETECTION DEVICE AND A DETECTION METHOD FOR DETECTING A HOSE BURST OR BREAKAGE OF A BRAKE HOSE IN A PNEUMATIC BRAKE SYSTEM
National phase entry is expected:
Publication Number
WO/2026/052400
Publication Date
12.03.2026
International Application No.
PCT/EP2025/073856
International Filing Date
21.08.2025
Title **
[English]
A DETECTION DEVICE AND A DETECTION METHOD FOR DETECTING A HOSE BURST OR BREAKAGE OF A BRAKE HOSE IN A PNEUMATIC BRAKE SYSTEM
[French]
DISPOSITIF DE DÉTECTION ET PROCÉDÉ DE DÉTECTION POUR DÉTECTER UN ÉCLATEMENT OU UNE RUPTURE DE FLEXIBLE D'UN FLEXIBLE DE FREIN DANS UN SYSTÈME DE FREINAGE PNEUMATIQUE
Applicants **
KB INTELLECTUAL PROPERTY GMBH & CO. KG
Inventors
PURWINS, Claudia
BALOGH, Barnabas
JUHASZ, Alexandra
Priority Data
24198535.7
05.09.2024
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1969 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2092 | |
| South Korea | Filing, Examination, Granting | 1942 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,850
Contact Us
Abstract[English]

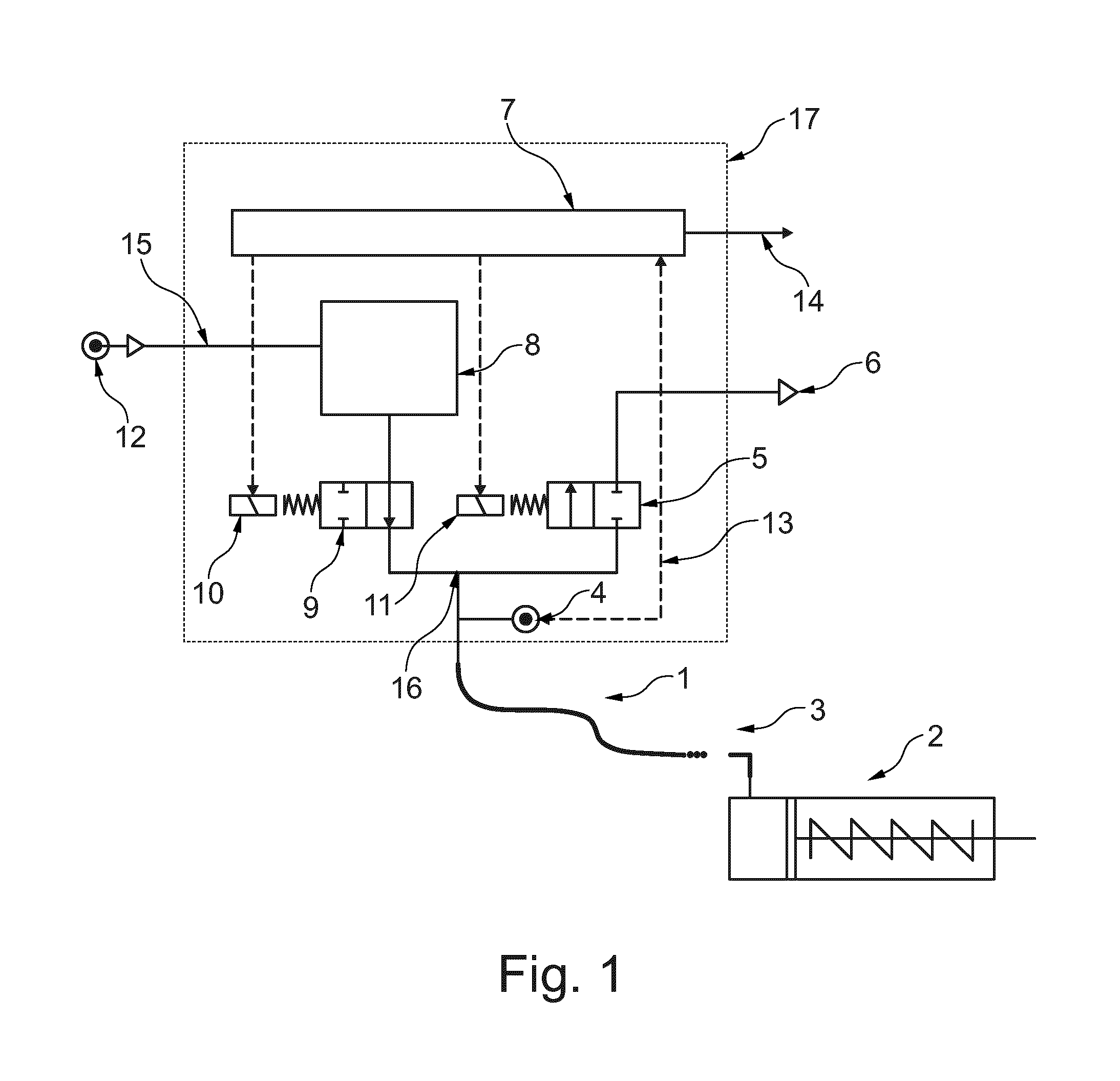

A detection device is disclosed for detecting a hose burst or breakage of a brake hose (1) in a pneumatic brake system, preferably in a brake system of a train, comprising: an ECU (7) comprising a brake controller, said detection device further comprising a pressure controller, control valves (5, 8, 9), and a brake pressure sensor (4), said pressure controller being configured to control said control valves for providing a brake pressure for operating a brake cylinder (2), said brake pressure sensor (4) being configured to detect the actual brake pressure lead to the brake cylinder (2), said brake controller being configured to receive the actual brake pressure, the demanded brake pressure, and the control valve outputs of the pressure controller, wherein the brake controller comprises an algorithm configured to determine a hose break.[French]
L'invention divulgue un dispositif de détection pour détecter un éclatement ou une rupture de flexible d'un flexible de frein (1) dans un système de freinage pneumatique, de préférence dans un système de freinage d'un train, comprenant : une ECU (7) comprenant un régulateur de freinage, ledit dispositif de détection comprenant en outre un régulateur de pression, des soupapes de commande (5, 8, 9) et un capteur de pression de freinage (4), ledit régulateur de pression étant conçu pour commander lesdites soupapes de commande afin de fournir une pression de freinage pour faire fonctionner un cylindre de frein (2), ledit capteur de pression de freinage (4) étant conçu pour détecter la pression de freinage réelle menée au cylindre de frein (2), ledit régulateur de freinage étant conçu pour recevoir la pression de freinage réelle, la pression de freinage demandée et les sorties de soupape de commande du régulateur de pression, le régulateur de freinage comprenant un algorithme conçu pour déterminer une rupture de flexible.
