WO2026046753 - EMOTOR/GENERATOR MOUNTING ARRANGEMENT
National phase entry is expected:
Publication Number
WO/2026/046753
Publication Date
05.03.2026
International Application No.
PCT/EP2025/073428
International Filing Date
15.08.2025
Title **
[English]
EMOTOR/GENERATOR MOUNTING ARRANGEMENT
[French]
AGENCEMENT DE MONTAGE DE MOTEUR ÉLECTRIQUE/DE GÉNÉRATEUR
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
PAYNE, Matthew
KEE, Noah
PATEL, Jai
Priority Data
18/816,301
27.08.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2082 | |
| EPO | Filing, Examination, Granting | 9134 | |
| Japan | Filing, Examination, Granting | 2214 | |
| South Korea | Filing, Examination, Granting | 2197 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
20,367
Contact Us
Abstract[English]

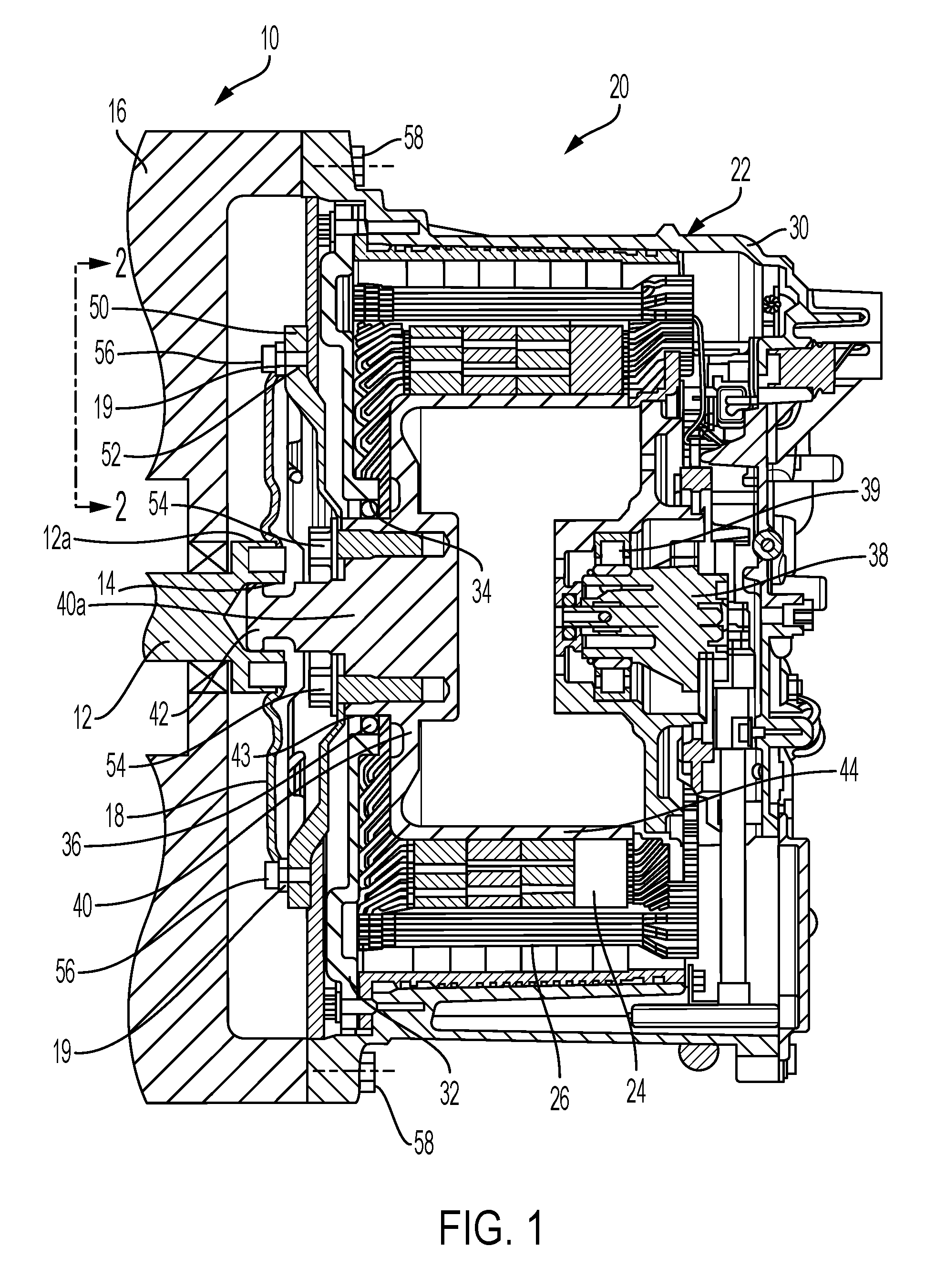

An emotor mounting arrangement (20) for an internal combustion engine (10) is provided, including an emotor (22) having a rotor (24) that is rotatably mounted and a stator (26) that is fixed relative to the engine (10). A hub (40) is connected to the rotor (24), with the hub (40) including a pilot extension (42) that is adapted to be supported in an end of a crankshaft (12) of the internal combustion engine (10). A drive plate (50) is connected to and extends radially from the hub (40), and the drive plate (50) includes connector openings (52) that are adapted for connecting the drive plate (50) to a flex plate (18) connected to the crankshaft (12). The hub (40) can be integrally formed with a rotor carrier (44), or the hub (40) can be assembled from stamped sheet metal parts (41•, 40a•, 42•).[French]
