WO2026027324 - ELEKTRISCHE VERDRÄNGERPUMPE SOWIE ÖLDURCHSTRÖMUNGSKREISLAUF IN DER ELEKTRISCHEN VERDRÄNGERPUMPE

National phase entry is expected:
Publication Number WO/2026/027324
Publication Date 05.02.2026
International Application No. PCT/EP2025/070930
International Filing Date 22.07.2025
Title **
[German] ELEKTRISCHE VERDRÄNGERPUMPE SOWIE ÖLDURCHSTRÖMUNGSKREISLAUF IN DER ELEKTRISCHEN VERDRÄNGERPUMPE
[English] ELECTRIC DISPLACEMENT PUMP AND OIL FLOW CIRCUIT IN THE ELECTRIC DISPLACEMENT PUMP
[French] POMPE VOLUMÉTRIQUE ÉLECTRIQUE ET CIRCUIT D'ÉCOULEMENT D'HUILE DANS LA POMPE VOLUMÉTRIQUE ÉLECTRIQUE
Applicants **
BÜHLER MOTOR GMBH
Inventors
LEYKAMM, Jürgen
KRAUSE, Matthias
BAUCH, Christian
Priority Data
102024122137.2   02.08.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
译文

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting2024
EPO Filing, Examination, Granting8126
Japan Filing, Examination, Granting2155
South Korea Filing, Examination, Granting2071
USA Filing, Examination, Granting5340
MasterCard Visa
Total: 19,716
Contact Us

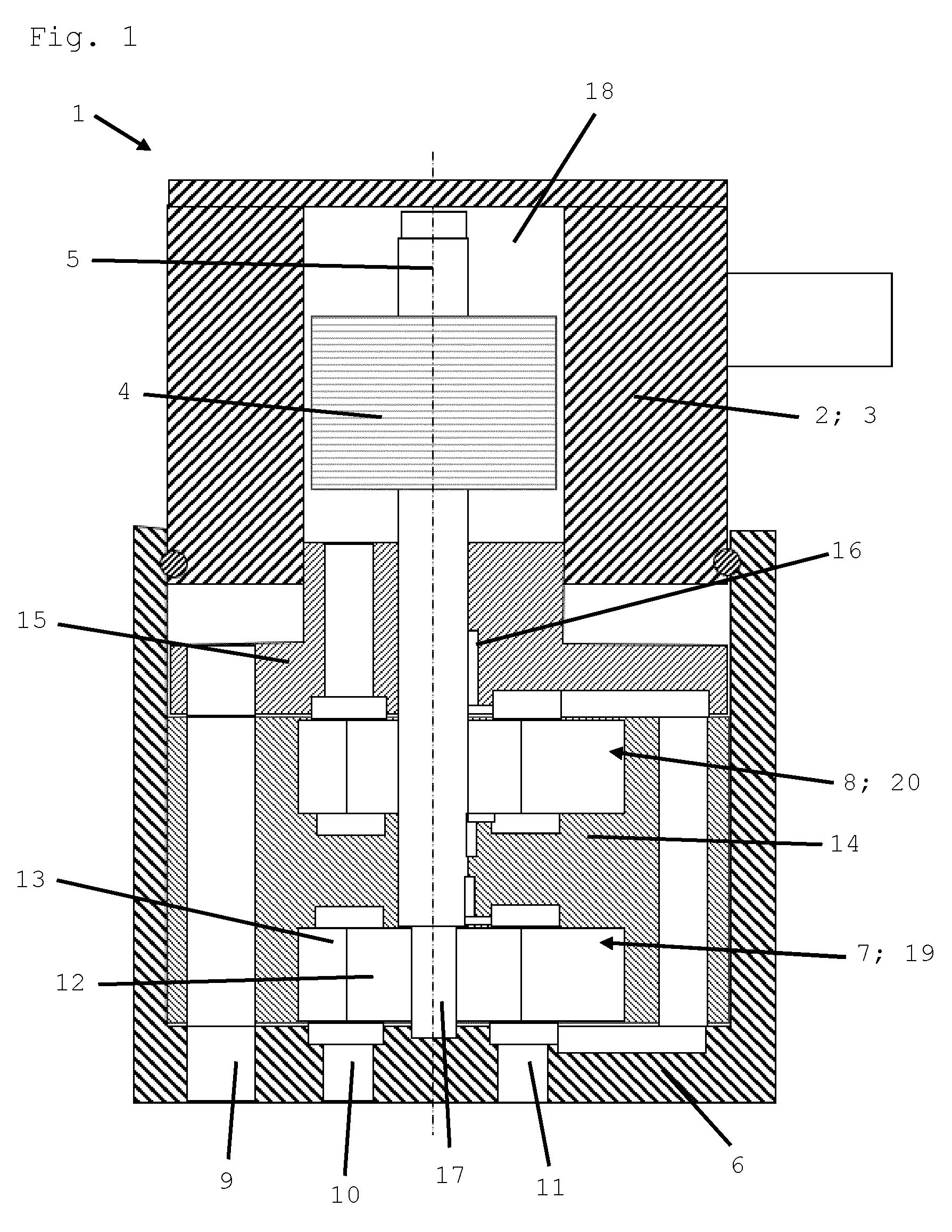

Abstract[German] Die Erfindung betrifft eine elektrische Verdrängerpumpe (1) umfassend einen Elektromotor (2), der als Innen- oder Außenläufer ausgebildet ist, aufweisend einen, insbesondere umspritzten, Stator (3) und einen Permanentmagnetrotor (4), der auf einer Welle (5) gelagert ist, wobei in einem Pumpenkopf (6) mindestens zwei Gerotoren (7, 8) auf der Welle (5) angeordnet sind, wobei die Welle (5) in einem Pumpengehäuselagerschild (14) und einem Motorlagerschild (15) gleitgelagert ist und wobei im Pumpenkopf (6) mindestens zwei Sauganschlüsse (9, 10) stirnseitig axial und mindestens ein Druckanschluss (11) stirnseitig axial ausgebildet sind. Ferner betrifft die Erfindung eine elektrische Verdrängerpumpe (1) umfassend einen Elektromotor (2), der als Innen- oder Außenläufer ausgebildet ist, aufweisend einen, insbesondere umspritzten, Stator (3) und einen Permanentmagnetrotor (4), der auf einer Welle (5) gelagert ist, wobei in einem Pumpenkopf (6) mindestens zwei Gerotoren (7, 8) auf der Welle (5) angeordnet sind, wobei die Welle (5) in einem Pumpengehäuselagerschild (14) und einem Motorlagerschild (15) gleitgelagert ist und wobei im Pumpenkopf (6) mindestens zwei Sauganschlüsse (9, 10) stirnseitig axial und mindestens ein Druckanschluss (11) radial ausgebildet sind. Die Erfindung betrifft ferner einen Öldurchströmungskreislauf in der elektrischen Verdrängerpumpe (1).[English] The invention relates to an electric displacement pump (1) comprising an electric motor (2), which is in the form of an inrunner or outrunner and which has a stator (3), in particular an overmolded stator, and a permanent magnet rotor (4) which is mounted on a shaft (5), wherein, in a pump head (6), at least two gerotors (7, 8) are arranged on the shaft (5), wherein the shaft (5) is plain-bearing-mounted in a pump housing end shield (14) and a motor end shield (15), and wherein, in the pump head (6), at least two suction ports (9, 10) and at least one pressure port (11) are formed axially at an end face. The invention also relates to an electric displacement pump (1) comprising an electric motor (2), which is in the form of an inrunner or outrunner and which has a stator (3), in particular an overmolded stator, and a permanent magnet rotor (4) which is mounted on a shaft (5), wherein, in a pump head (6), at least two gerotors (7, 8) are arranged on the shaft (5), wherein the shaft (5) is plain-bearing-mounted in a pump housing end shield (14) and a motor end shield (15), and wherein, in the pump head (6), at least two suction ports (9, 10) are formed axially at an end face and at least one pressure port (11) is formed radially. The invention also relates to an oil flow circuit in the electric displacement pump (1).[French] L'invention concerne une pompe volumétrique électrique (1) comprenant un moteur électrique (2), qui se présente sous la forme d'un moteur à rotor interne ou d'un moteur à rotor externe et qui possède un stator (3), en particulier un stator surmoulé, et un rotor à aimant permanent (4) qui est monté sur un arbre (5), dans une tête de pompe (6) au moins deux engrenages emboîtés (7, 8) étant agencés sur l'arbre (5), l'arbre (5) étant monté sur palier lisse dans un flasque de carter de pompe (14) et un flasque de moteur (15), et dans la tête de pompe (6) au moins deux orifices d'aspiration (9, 10) et au moins un orifice de pression (11) étant formés axialement au niveau d'une face d'extrémité. L'invention concerne également une pompe volumétrique électrique (1) comprenant un moteur électrique (2), qui se présente sous la forme d'un moteur à rotor interne ou d'un moteur à rotor externe et qui possède un stator (3), en particulier un stator surmoulé, et un rotor à aimant permanent (4) qui est monté sur un arbre (5), dans une tête de pompe (6) au moins deux engrenages emboîtés (7, 8) étant agencés sur l'arbre (5), l'arbre (5) étant monté sur palier lisse dans un flasque de carter de pompe (14) et un flasque de moteur (15), et dans la tête de pompe (6) au moins deux orifices d'aspiration (9, 10) étant formés axialement au niveau d'une face d'extrémité et au moins un orifice de pression (11) étant formé radialement. L'invention concerne également un circuit d'écoulement d'huile dans la pompe volumétrique électrique (1).
