WO2026037553 - MOTOR VEHICLE COMPRISING A REAR WINDOW MOVABLE ABOUT A HORIZONTAL AXIS OF ROTATION
National phase entry is expected:
Publication Number
WO/2026/037553
Publication Date
19.02.2026
International Application No.
PCT/EP2025/069788
International Filing Date
10.07.2025
Title **
[English]
MOTOR VEHICLE COMPRISING A REAR WINDOW MOVABLE ABOUT A HORIZONTAL AXIS OF ROTATION
[French]
VÉHICULE AUTOMOBILE COMPRENANT UNE VITRE ARRIÈRE MOBILE AUTOUR D'UN AXE DE ROTATION HORIZONTAL
Applicants **
RENAULT S.A.S.
Inventors
MULATO, Gilles
Priority Data
FR2408866
12.08.2024
FR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1938 | |
| EPO | Filing, Examination, Granting | 8113 | |
| Japan | Filing, Examination, Granting | 2061 | |
| South Korea | Filing, Examination, Granting | 1883 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,735
Contact Us
Abstract[English]

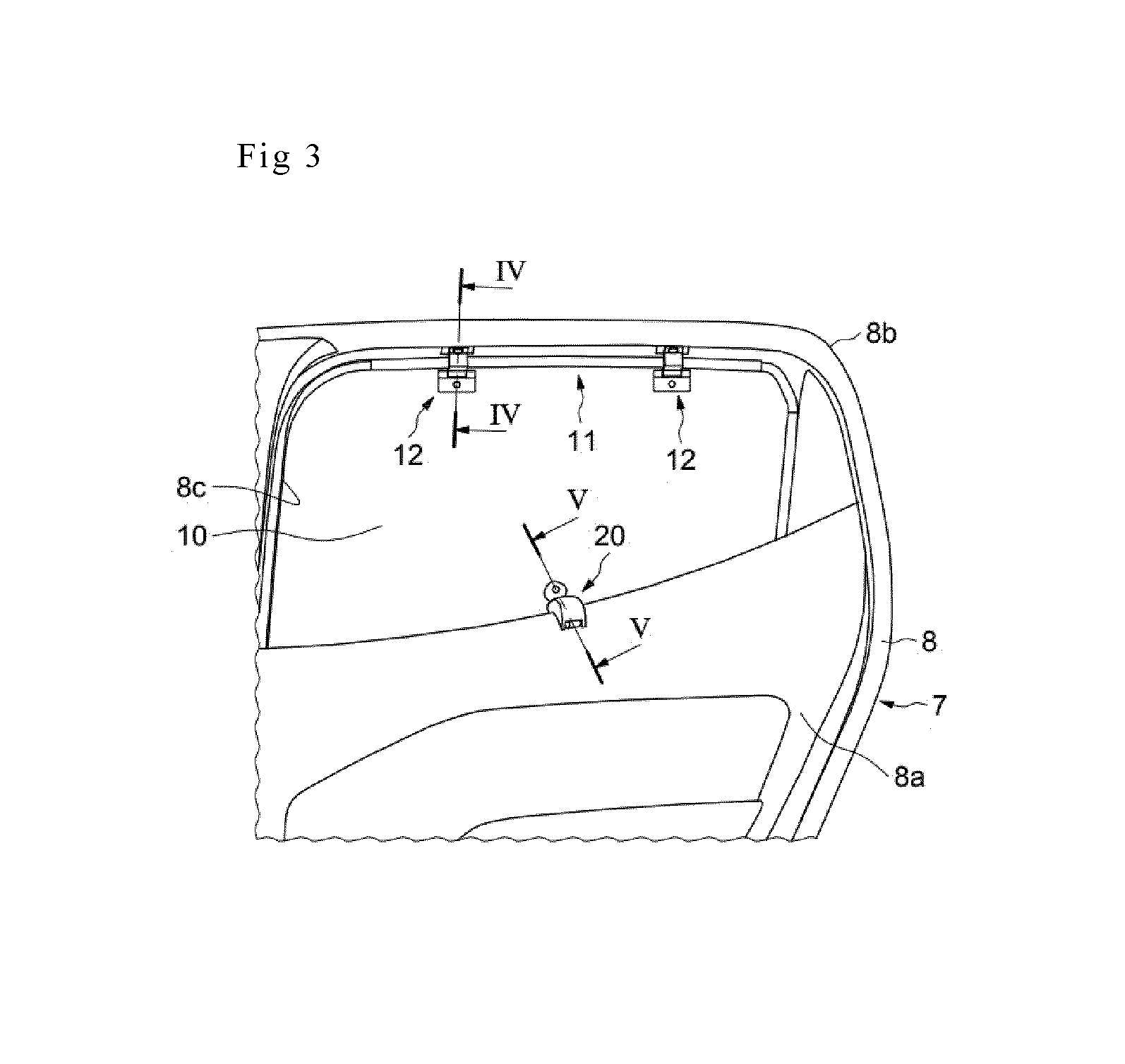

The invention relates to a motor vehicle extending along a longitudinal axis (X) and comprising a body, at least one front door intended to allow access to a first row of front seats of the motor vehicle, and at least one rear door (7) intended to allow access to a second row of seats of the motor vehicle, located at the rear of the first row of seats, the rear door (7) comprising a door structure (8) comprising an internal structure (8a) and an external structure (8b) connected to one another and delimiting an opening (8c), the vehicle comprising a rear window (10) secured to the door structure (8) by an associated connection system (11). The rear window (10) is movable about a horizontal axis of rotation, parallel to the longitudinal axis (X), between an open position in which the rear window (10) is pivoted relative to the horizontal axis of rotation away from the door structure (8) towards the outside of the vehicle and a closed position in which the rear window (10) closes off the opening (8c) located in the door structure (8).[French]
Véhicule automobile s’ étendant selon un axe longitudinal (X) et comprenant une carrosserie, au moins une porte avant destinée à permettre l’ accès à une première rangée de sièges avant du véhicule automobile, et au moins une porte arrière (7) destinée à permettre l’ accès à une deuxième rangée de sièges du véhicule automobile, située à l’ arrière de la première rangée de sièges, la porte arrière (7) comprenant une structure de porte (8) comprenant une structure interne (8a) et une structure externe (8b) reliées entre elles et délimitant une ouverture (8c), le véhicule comprenant une vitre arrière (10) solidaire de la structure de porte (8) par un système de liaison (1 1) associé. La vitre arrière (10) est mobile autour d’un axe de rotation horizontal, parallèle à l’ axe longitudinale (X) entre une position ouverte dans laquelle la vitre arrière (10) est pivotée par rapport à l’ axe de rotation horizontal à l’ écart de la structure de porte (8) vers l’ extérieur du véhicule et une position fermée dans laquelle la vitre arrière (10) obture l’ ouverture (8c) située dans ladite structure de porte (8).
