WO2026061650 - GASINJEKTOR
National phase entry is expected:
Publication Number
WO/2026/061650
Publication Date
26.03.2026
International Application No.
PCT/EP2025/069574
International Filing Date
09.07.2025
Title **
[German]
GASINJEKTOR
[English]
GAS INJECTOR
[French]
INJECTEUR DE GAZ
Applicants **
ROBERT BOSCH GMBH
Inventors
KALMAR, Kevin
BAYER, Christian
ILGNER, Frank
KREHER, Thilo
FOCHTNER, Nina
Priority Data
102024209072.7
23.09.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1967 | |
| EPO | Filing, Examination, Granting | 8113 | |
| Japan | Filing, Examination, Granting | 2091 | |
| South Korea | Filing, Examination, Granting | 1945 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
18,856
Contact Us

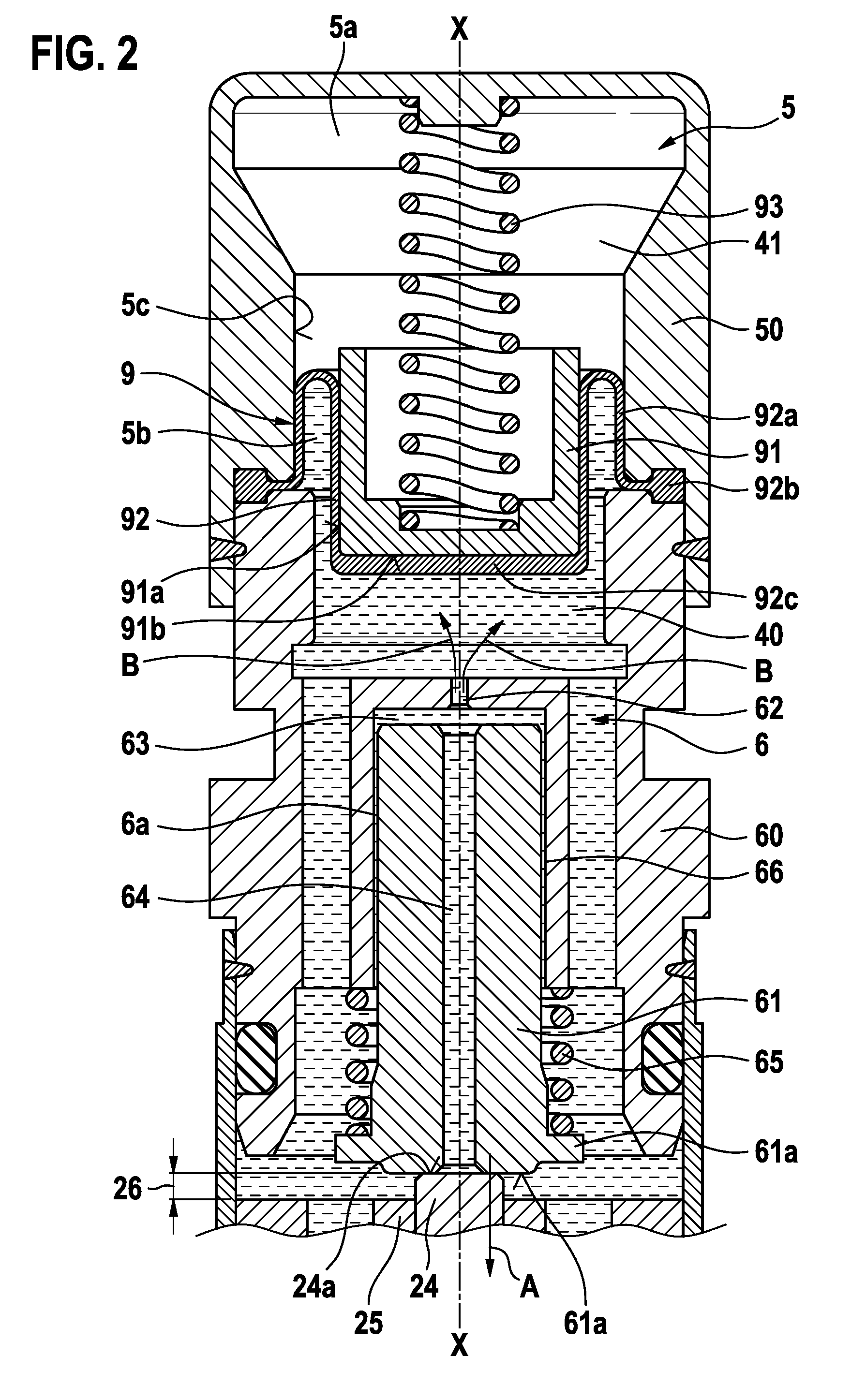

Abstract[German]
Die vorliegende Erfindung betrifft einen Gasinjektor zum Einblasen eines gasförmigen Brennstoffs, umfassend einen Magnetaktor mit einem Anker, einem Innenpol und einer Spule, ein Schließelement mit einer Ventilnadel und einem Ankerbolzen, wobei die Ventilnadel einen Gaspfad an einem ersten Ende des Gasinjektors angeordneten Dichtsitz freigibt und verschließt, wobei der Anker mit dem Ankerbolzen verbunden ist und der Ankerbolzen mit der Ventilnadel in Wirkverbindung steht, einen abgeschlossenen Schmiermittelraum, der mit einer Flüssigkeit als Schmiermittel und einem Gas gefüllt ist, und in welchem der Anker und der Ankerbolzen angeordnet sind, wobei das Schmiermittel eine Schmierwirkung im Schmiermittelraum bereitstellt, ein Rückstellelement, welches das Schließelement in die geschlossene Ausgangsstellung zurückstellt, eine Dämpfungseinrichtung, welche im Schmiermittelraum angeordnet ist, wobei die Dämpfungseinrichtung eingerichtet ist, um eine Schließbewegung des Schließelements zu dämpfen, einen Ausgleichsraum, welcher ein Teil des Schmiermittelraums ist und in welchem Flüssigkeit und Gas angeordnet ist, und ein bewegliches Trennelement, welches im Ausgleichsraum angeordnet ist und die Flüssigkeit vom Gas fluiddicht trennt.[English]
The present invention relates to a gas injector for injecting a gaseous fuel, comprising: a magnetic actuator having an armature, an inner pole, and a coil; a closing element having a valve needle and an armature bolt, the valve needle opening and closing a gas path at a sealing seat arranged at a first end of the gas injector, the armature being connected to the armature bolt and the armature bolt being operatively connected to the valve needle; a sealed lubricant chamber which is filled with a liquid acting as a lubricant and with a gas and in which the armature and the armature bolt are arranged, the lubricant providing a lubricating effect in the lubricant chamber; a return element which returns the closing element to a closed initial position; a damping device which is arranged in the lubricant chamber, the damping device being designed to damp a closing movement of the closing element; a compensation chamber which forms part of the lubricant chamber and in which liquid and gas are present; and a movable separating element which is arranged in the compensation chamber and which fluid-tightly separates the liquid from the gas.[French]
La présente invention concerne un injecteur de gaz servant à injecter un gaz combustible, comprenant : un actionneur magnétique comportant un induit, un pôle interne et une bobine ; un élément de fermeture comportant une tige de soupape et un boulon d'induit, la tige de soupape ouvrant et fermant un trajet de gaz au niveau d'un siège d'étanchéité disposé au niveau d'une première extrémité de l'injecteur de gaz, l'induit étant relié au boulon d'induit et le boulon d'induit étant fonctionnellement relié à la tige de soupape ; une chambre de lubrifiant étanche qui est remplie d'un liquide agissant en tant que lubrifiant et d'un gaz et dans laquelle l'induit et le boulon d'induit sont agencés, le lubrifiant ayant un effet de lubrification dans la chambre de lubrifiant ; un élément de rappel qui ramène l'élément de fermeture en position initiale fermée ; un dispositif d'amortissement qui est disposé dans la chambre de lubrifiant, le dispositif d'amortissement étant conçu pour amortir un mouvement de fermeture de l'élément de fermeture ; une chambre d'équilibrage qui fait partie de la chambre de lubrifiant et dans laquelle un liquide et un gaz sont présents ; et un élément de séparation mobile qui est disposé dans la chambre d'équilibrage et qui sépare de manière étanche aux fluides le liquide du gaz.
