WO2025256829 - SCHALTUNGSANORDNUNG ZUR ENERGIEVERSORGUNG VON GATETREIBERN, MITTELZWEIGVORRICHTUNG FÜR EINE INVERTERSCHALTUNG, INVERTERSCHALTUNG UND VERFAHREN ZUM BETRIEB EINER SOLCHEN, VORRICHTUNG ZUR ANSTEUERUNG EINES STATORS EINER ELEKTRISCHEN MASCHINE UND ELEKTRISCHES ANTRIEBSSYSTEM

National phase entry is expected:
Publication Number WO/2025/256829
Publication Date 18.12.2025
International Application No. PCT/EP2025/062594
International Filing Date 08.05.2025
Title **
[German] SCHALTUNGSANORDNUNG ZUR ENERGIEVERSORGUNG VON GATETREIBERN, MITTELZWEIGVORRICHTUNG FÜR EINE INVERTERSCHALTUNG, INVERTERSCHALTUNG UND VERFAHREN ZUM BETRIEB EINER SOLCHEN, VORRICHTUNG ZUR ANSTEUERUNG EINES STATORS EINER ELEKTRISCHEN MASCHINE UND ELEKTRISCHES ANTRIEBSSYSTEM
[English] CIRCUIT ARRANGEMENT FOR SUPPLYING POWER TO GATE DRIVERS, CENTRAL BRANCH DEVICE FOR AN INVERTER CIRCUIT, INVERTER CIRCUIT, AND METHOD FOR OPERATING SAME, DEVICE FOR ACTUATING A STATOR OF AN ELECTRIC MACHINE, AND ELECTRIC DRIVE SYSTEM
[French] AGENCEMENT DE CIRCUIT POUR FOURNIR DE L'ÉNERGIE À DES CIRCUITS D'ATTAQUE DE GRILLE, DISPOSITIF DE BRANCHE CENTRALE POUR UN CIRCUIT ONDULEUR, CIRCUIT ONDULEUR ET SON PROCÉDÉ DE FONCTIONNEMENT, DISPOSITIF D'ACTIONNEMENT D'UN STATOR D'UNE MACHINE ÉLECTRIQUE, ET SYSTÈME D'ENTRAÎNEMENT ÉLECTRIQUE
Applicants **
ROBERT BOSCH GMBH
Inventors
CARRARO, Federico
STAMER, Fabian Johannes
Priority Data
102024205328.7   10.06.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
译文

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting2116
EPO Filing, Examination, Granting8412
Japan Filing, Examination, Granting2153
South Korea Filing, Examination, Granting2071
USA Filing, Examination, Granting5940
MasterCard Visa
Total: 20,692
Contact Us

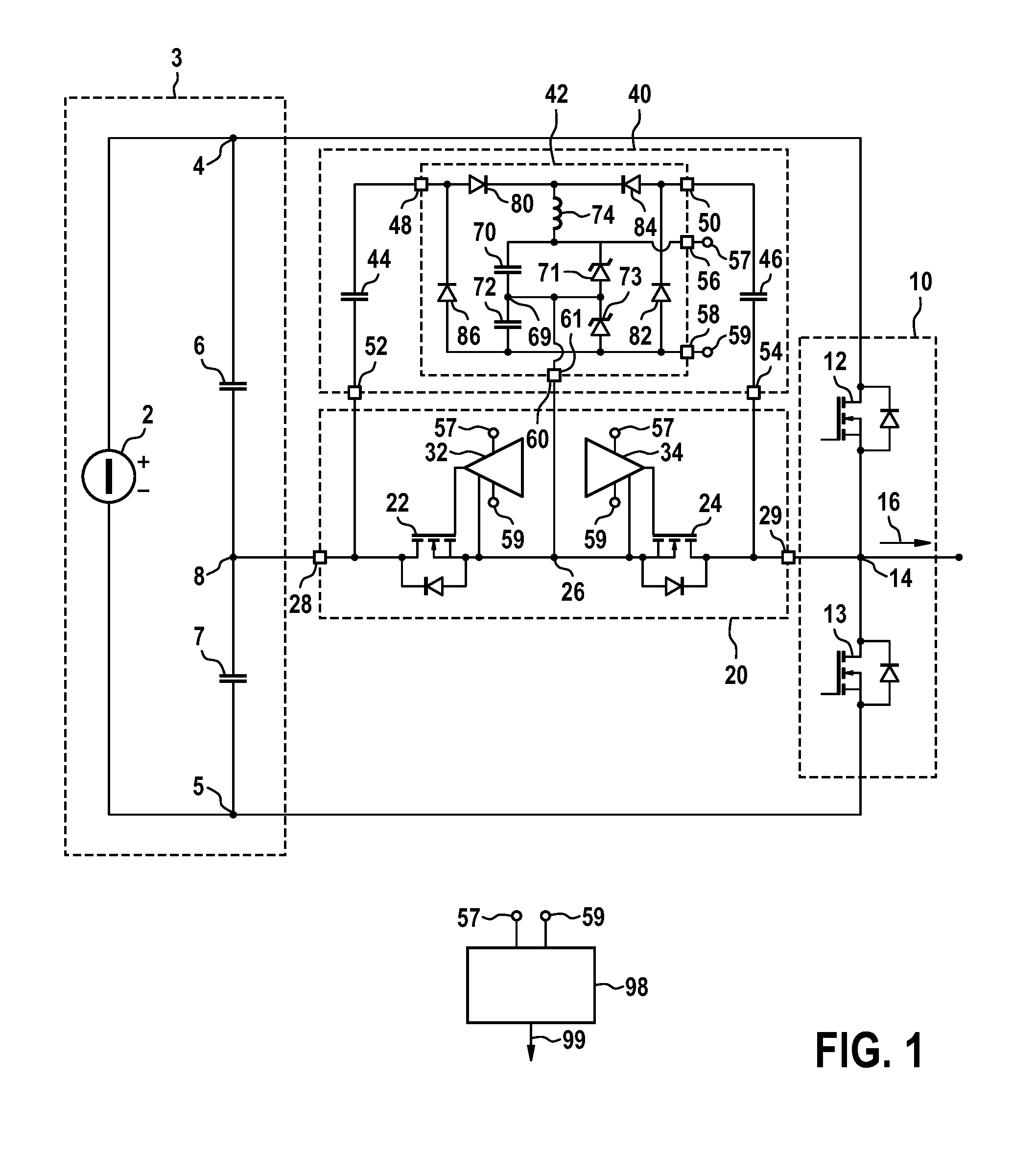

Abstract[German] Die Erfindung betrifft eine Schaltungsanordnung (40) zur Energieversorgung von Gatetreibern eines Mittelzweigs (20) einer drei- oder mehrstufigen Inverterschaltung, aufweisend wenigstens einen Versorgungseingang (52, 54), der mit einem Versorgungs-Mittelknoten (8) und/oder einem Halbbrücken-Mittelknoten (14) verbunden oder verbindbar ist, wenigstens einen Koppelkondensator (44, 46), der mit dem wenigstens einen Versorgungseingang verbunden ist, und wenigstens ein Netzwerk (42), das wenigstens einen Netzwerkeingang (48, 50), der mit dem wenigstens einen Koppelkondensator verbunden ist, einen Netzwerk-Mittelausgang (60), der mit einer Mittelverbindung (26) zwischen einem ersten und einem15 zweiten Transistor (22, 24) des Mittelzweigs verbunden oder verbindbar ist, und wenigstens einen Netzwerkausgang (56, 58) aufweist, der mit wenigstens einem Spannungsversorgungsanschluss eines ersten und/oder eines zweiten Gatetreibers (32, 34) des ersten bzw. zweiten Transistors verbunden oder verbindbar ist. In dem wenigstens einen sind Netzwerk zwischen dem wenigstens einen Versorgungseingang und dem Mittelausgang ein oder mehrere Ladepfade gebildet, wobei das wenigstens eine Netzwerk dazu eingerichtet ist, in Reaktion auf Spannungsübergänge an dem wenigstens einen Versorgungseingang, elektrische Energie über den einen oder die mehreren Ladepfade zwischenzuspeichern und wenigstens eine Gleichspannung zwischen dem wenigstens einem Netzwerkausgang und dem Mittelausgang bereitzustellen.[English] The invention relates to a circuit arrangement (40) for supplying power to gate drivers of a central branch (20) of a three-stage or multi-stage inverter circuit, having at least one supply input (52, 54), which is connected or able to be connected to a supply central node (8) and/or a half-bridge central node (14), at least one coupling capacitor (44, 46), which is connected to the at least one supply input, and at least one network (42), which has at least one network input (48, 50), which is connected to the at least one coupling capacitor, a network central output (60), which is connected or able to be connected to a central connection (26) between a first and a second transistor (22, 24) of the central branch, and at least one network output (56, 58), which is connected or able to be connected to at least one voltage supply port of a first and/or a second gate driver (32, 34) of the first or second transistor. One or more charging paths are formed in the at least one network between the at least one supply input and the central output, wherein the at least one network is designed to buffer-store electrical energy via the one or more charging paths and to provide at least one DC voltage between the at least one network output and the central output in response to voltage transitions at the at least one supply input.[French] L'invention concerne un agencement de circuit (40) pour alimenter des circuits d'attaque de grille d'une branche centrale (20) d'un circuit onduleur à trois étages ou à étages multiples, ayant au moins une entrée d'alimentation (52, 54), qui est connectée ou apte à être connectée à un nœud central d'alimentation (8) et/ou à un nœud central en demi-pont (14), au moins un condensateur de couplage (44, 46), qui est connecté à l'au moins une entrée d'alimentation, et au moins un réseau (42), qui a au moins une entrée de réseau (48, 50), qui est connectée à l'au moins un condensateur de couplage, une sortie centrale de réseau (60), qui est connectée ou apte à être connectée à une connexion centrale (26) entre un premier et un deuxième transistor (22, 24) de la branche centrale, et au moins une sortie de réseau (56, 58), qui est connectée ou apte à être connectée à au moins un port d'alimentation en tension d'un premier et/ou d'un deuxième circuit d'attaque de grille (32, 34) du premier ou du deuxième transistor. Un ou plusieurs trajets de charge sont formés dans le ou les réseaux entre la ou les entrées d'alimentation et la sortie centrale, le ou les réseaux étant conçus pour stocker en tampon de l'énergie électrique par l'intermédiaire du ou des trajets de charge et pour fournir au moins une tension continue entre la ou les sorties de réseau et la sortie centrale en réponse à des transitions de tension au niveau de la ou des entrées d'alimentation.
