WO2025228560 - KONVERTERSCHALTUNG MIT ZERO-VOLTAGE SWITCHING UND VERBESSERTER TOTZEITOPTIMIERUNG
National phase entry is expected:
Publication Number
WO/2025/228560
Publication Date
06.11.2025
International Application No.
PCT/EP2025/054953
International Filing Date
25.02.2025
Title **
[German]
KONVERTERSCHALTUNG MIT ZERO-VOLTAGE SWITCHING UND VERBESSERTER TOTZEITOPTIMIERUNG
[English]
CONVERTER CIRCUIT WITH ZERO-VOLTAGE SWITCHING AND IMPROVED DEAD TIME OPTIMISATION
[French]
CIRCUIT CONVERTISSEUR À COMMUTATION À TENSION NULLE ET OPTIMISATION DE TEMPS MORT AMÉLIORÉE
Applicants **
ROBERT BOSCH GMBH
Inventors
KOZLOWSKI, Peter
Priority Data
102024203985.3
29.04.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1882 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2000 | |
| South Korea | Filing, Examination, Granting | 1754 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
18,483
Contact Us
Abstract[German]

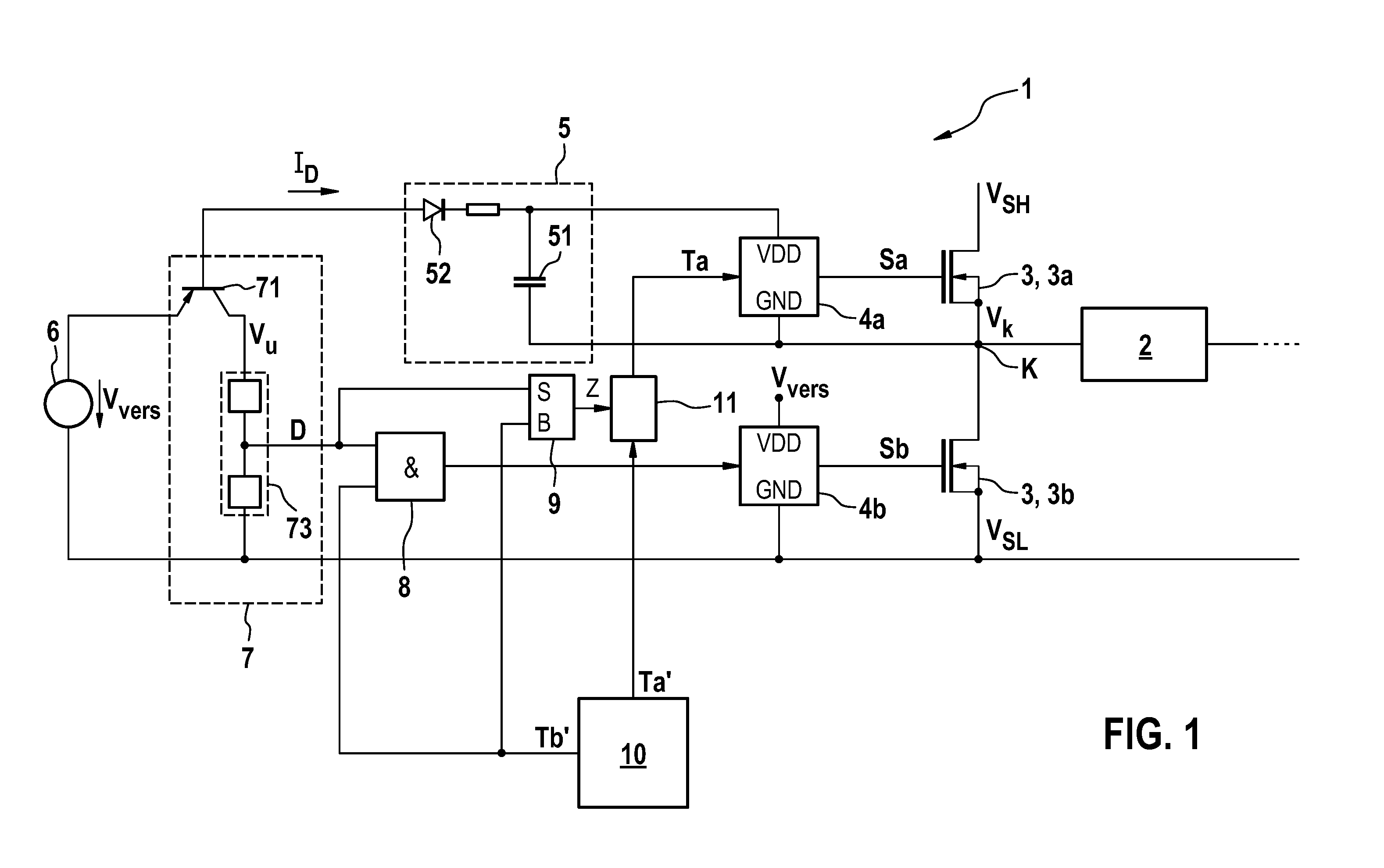

) des Mittenknotens (K), - eine Überwachungsschaltung (7), die ausgebildet ist, um abhängig von einem Zeitpunkt eines Stromflusses in die Bootstrap-Schaltung (5) ein Umladungssignal (D) bereitzustellen, das das Vorliegen oder das Nicht-Vorliegen einer Quasi-Nullspannung über dem Low-Side-Halbleiter- schalter (3b) angibt; - eine Steuereinheit (10) zum Bereitstellen von zyklischen Roh-Steuersignalen (Ta', Tb') für die Ansteuerung der Halbleiterschalter (3a, 3b) in Schaltperioden gemäß einem vorgegebenen Tastverhältnis; - eine Logik, um das Roh-Steuersignal (Ta', Tb') zum Einschalten des Low-Side-Halbleiterschalters (3b) zu verzögern, um das Steuersignal (Tb) für die Treiberschaltung (4b) des Low-Side-Halbleiterschalters (3b) zu erhalten, wobei die Verzögerung erfolgt, bis sowohl das Umladungssignal (D) das Vorliegen der Quasi-Nullspannung über dem Low-Side-Halbleiterschalter (3b) als auch das Roh-Steuersignal (Ta', Tb') für den Low-Side-Halbleiterschalter (3b) ein Einschalten des Low-Side-Halbleiterschalters (3b) angeben.[English]
