WO2025119868 - ANSTEUERN EINES ELEKTROMECHANISCHEN SCHALTERS UND EINES HALBLEITERSCHALTERS

National phase entry is expected:
Publication Number WO/2025/119868
Publication Date 12.06.2025
International Application No. PCT/EP2024/084411
International Filing Date 03.12.2024
Title **
[German] ANSTEUERN EINES ELEKTROMECHANISCHEN SCHALTERS UND EINES HALBLEITERSCHALTERS
[English] CONTROLLING AN ELECTROMECHANICAL SWITCH AND A SEMICONDUCTOR SWITCH
[French] COMMANDE D'UN INTERRUPTEUR ÉLECTROMÉCANIQUE ET D'UN INTERRUPTEUR À SEMICONDUCTEURS
Applicants **
DSPACE GMBH
Inventors
GRUBER, Paul
Priority Data
102023134441.2   08.12.2023   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
译文

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1996
EPO Filing, Examination, Granting8126
Japan Filing, Examination, Granting2124
South Korea Filing, Examination, Granting2009
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 18,995

The term for entry into the National Phase has expired. This quotation is for informational purposes only

Contact Us

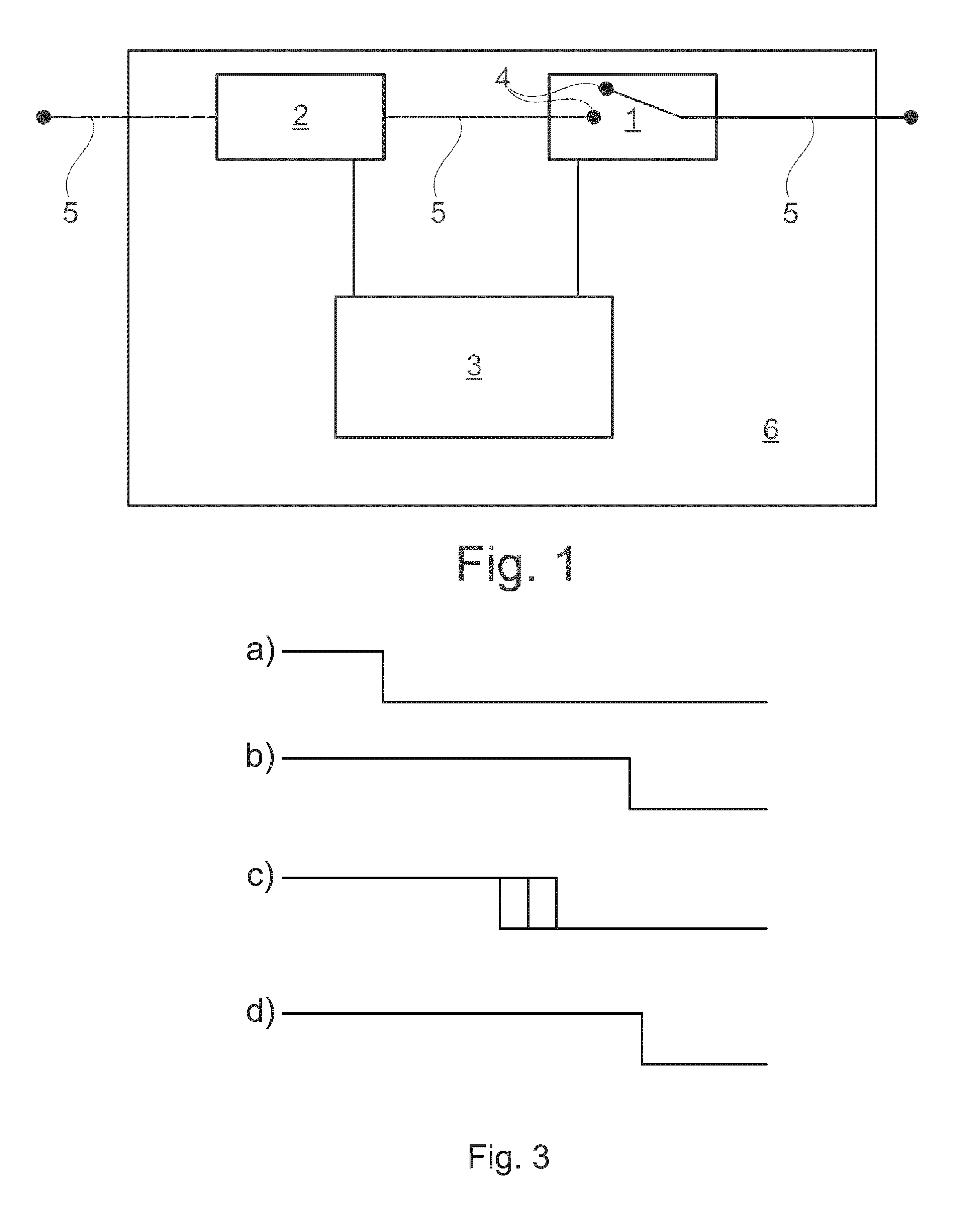

Abstract[German] Die Erfindung betrifft eine Anordnung mit einem elektromechanischen Schalter (1), einem Halbleiterschalter (2) und einer Steuereinrichtung (3), wobei der elektromechanische Schalter (1) und der Halbleiterschalter (2) ein- und abschaltbar sind, wobei der elektromechanische Schalter (1) und der Halbleiterschalter (2) im eingeschalteten Zustand jeweils geschlossen und im abgeschalteten Zustand jeweils geöffnet sind, der elektromechanische Schalter (1) zum Ein- bzw. Abschalten elektromechanisch miteinander verbindbare Schaltkontakte (4) aufweist, der elektromechanische Schalter (1) und der Halbleiterschalter (2) in einem Lastpfad (5) in Reihe zueinander geschaltet sind und beide zum Ein- bzw. Abschalten mit der Steuereinrichtung (3) verbunden sind und die Steuereinrichtung (3) derart eingerichtet ist, dass sie beim Abschalten des elektromechanischen Schalters (1) und des Halbleiterschalters (2) zum Öffnen des Lastpfads (5) erst ein Abschaltsignal an den elektromechanischen Schalter (1) und dann nach einer vorbestimmten Abschaltverzögerung ein Abschaltsignal an den Halbleiterschalter (2) sendet. Damit wird die Aufgabe gelöst, das Schaltens höherer Ströme bei Gleichspannungen zu ermöglichen, die in einem herkömmlichen Relais beim Abschalten zu anhaltenden Lichtbögen führen würden.[English] The invention relates to an arrangement having an electromechanical switch (1), a semiconductor switch (2) and a control device (3), wherein the electromechanical switch (1) and the semiconductor switch (2) can be switched on and off, wherein the electromechanical switch (1) and the semiconductor switch (2) are each closed in the switched-on state and are each open in the switched-off state, the electromechanical switch (1) has switching contacts (4) that can be electromechanically connected to one another for switching on or off, the electromechanical switch (1) and the semiconductor switch (2) are connected to one another in series in a load path (5), and both are connected to the control device (3) for switching on or off, and the control device (3) is configured in such a way that when the electromechanical switch (1) and the semiconductor switch (2) are switched off, it first sends a switch-off signal to the electromechanical switch (1) to open the load path (5) and then, after a predetermined switch-off delay, sends a switch-off signal to the semiconductor switch (2). This achieves the object of enabling the switching of higher currents at DC voltages that would lead to sustained arcing in a conventional relay when switched off.[French] L'invention concerne un agencement comportant un interrupteur électromécanique (1), un interrupteur à semiconducteurs (2) et un dispositif de commande (3), l'interrupteur électromécanique (1) et l'interrupteur à semiconducteurs (2) pouvant être mis sous tension et hors tension, l'interrupteur électromécanique (1) et l'interrupteur à semiconducteurs (2) étant chacun fermés dans l'état de mise sous tension et étant chacun ouverts dans l'état de mise hors tension, l'interrupteur électromécanique (1) présentant des contacts de commutation (4) qui peuvent être connectés de manière électromécanique l'un à l'autre pour la mise sous tension ou hors tension, l'interrupteur électromécanique (1) et l'interrupteur à semiconducteurs (2) étant connectés l'un à l'autre en série dans un trajet de charge (5), et les deux étant connectés au dispositif de commande (3) pour la mise sous tension ou hors tension, et le dispositif de commande (3) étant conçu de sorte que lorsque l'interrupteur électromécanique (1) et l'interrupteur à semiconducteurs (2) sont mis hors tension, le dispositif de commande envoie d'abord un signal de mise hors tension à l'interrupteur électromécanique (1) pour ouvrir le trajet de charge (5) puis, après un retard de mise hors tension prédéterminé, envoie un signal de mise hors tension à l'interrupteur à semiconducteurs (2). Cela répond à l'objectif visant à permettre la commutation de courants supérieurs à des tensions CC qui conduiraient à une formation d'arc prolongée dans un relais classique lors de la mise hors tension.
