WO2025056534 - OPTOELECTRONIC COMPONENT COMPRISING AN INORGANIC PEROVSKITE SUBCELL AND A PROCESS FOR MANUFACTURING SUCH INORGANIC PEROVSKITE SUBCELL OF AN OPTOELECTRONIC COMPONENT
National phase entry:
Publication Number
WO/2025/056534
Publication Date
20.03.2025
International Application No.
PCT/EP2024/075239
International Filing Date
10.09.2024
Title **
[English]
OPTOELECTRONIC COMPONENT COMPRISING AN INORGANIC PEROVSKITE SUBCELL AND A PROCESS FOR MANUFACTURING SUCH INORGANIC PEROVSKITE SUBCELL OF AN OPTOELECTRONIC COMPONENT
[French]
COMPOSANT OPTOÉLECTRONIQUE COMPRENANT UNE SOUS-CELLULE DE PÉROVSKITE INORGANIQUE ET PROCÉDÉ DE FABRICATION D'UNE TELLE SOUS-CELLULE DE PÉROVSKITE INORGANIQUE D'UN COMPOSANT OPTOÉLECTRONIQUE
Applicants **
HELIATEK GMBH
Inventors
WEISS, Andre
LE, Phuong
UHRICH, Christian
Priority Data
23196457.8
11.09.2023
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2153 | |
| EPO | Filing, Examination, Granting | 9396 | |
| Japan | Filing, Examination, Granting | 2215 | |
| South Korea | Filing, Examination, Granting | 2192 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
20,696
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

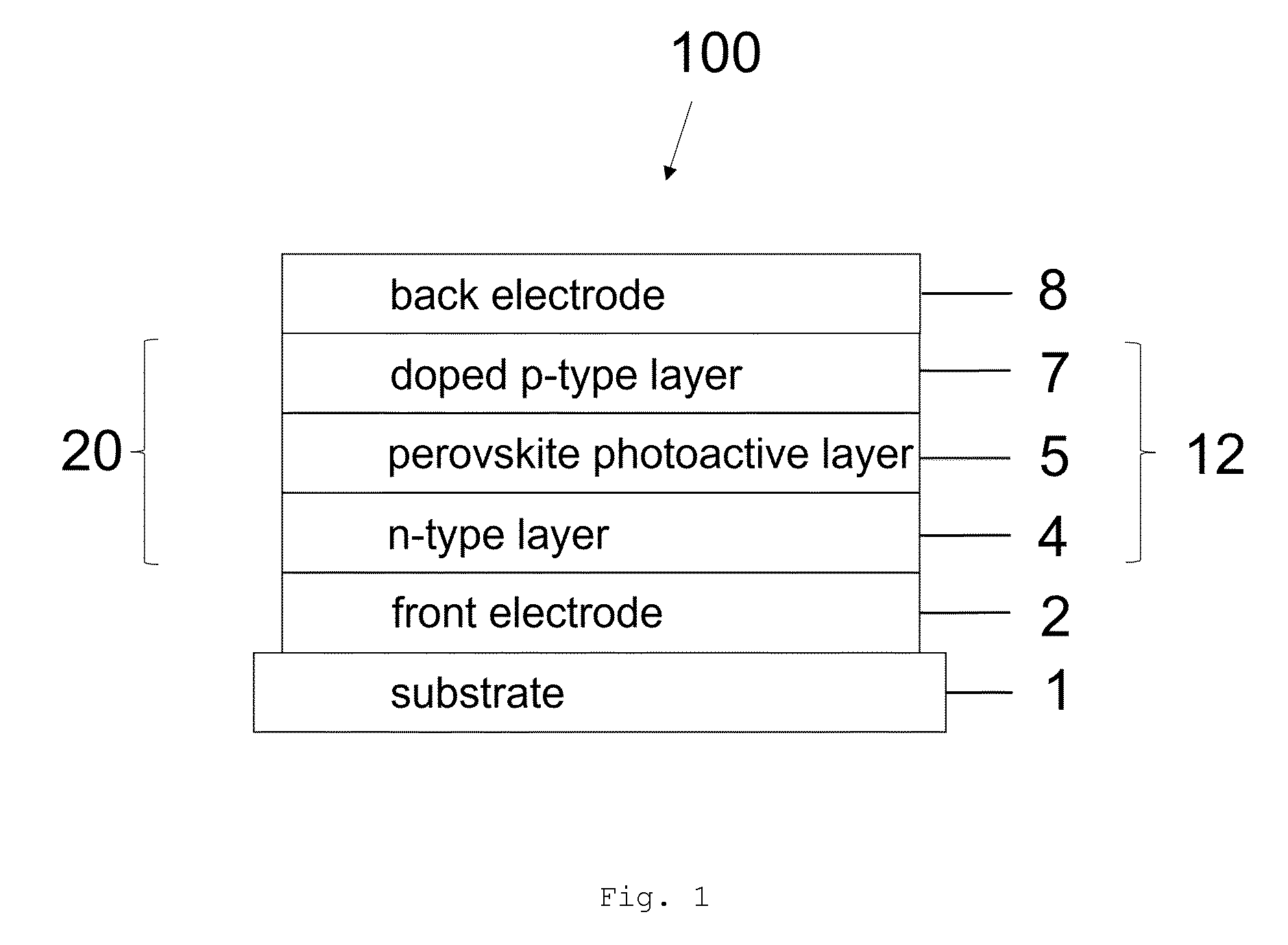

The present invention relates to an optoelectronic component (100) comprising a transparent front electrode (2), a back electrode (8), and a stack (20) arranged between the front electrode (2) and the back electrode (8), the stack (20) comprising an inorganic perovskite subcell (12), wherein the inorganic perovskite subcell (12) having a n-i-p cell architecture, and a process for manufacturing such an inorganic perovskite subcell (12) of an optoelectronic component (100) by vacuum deposition on a substrate (1), wherein the inorganic perovskite subcell (12) having a n-i-p cell architecture.[French]
